1995 HITACHI SEIKI HT20SII | Lathes, CNC

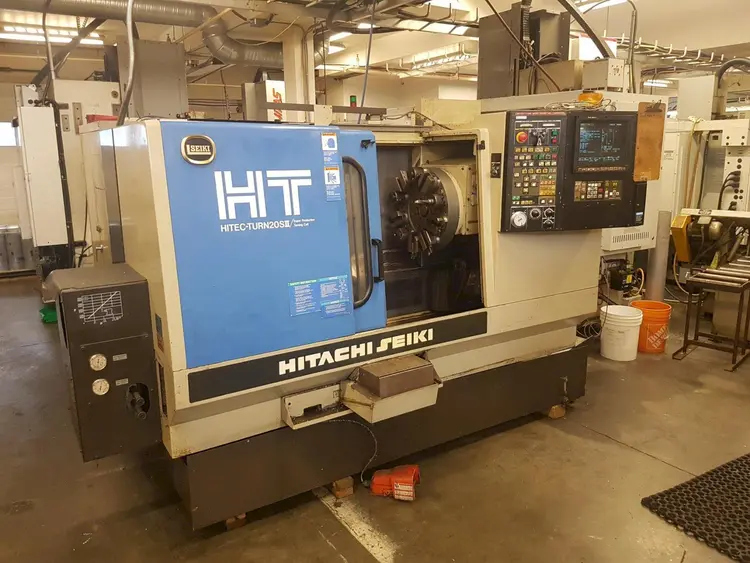

Hitachi Seiki Hitec-Turn HT20SII CNC Lathe
New: 1995

Specifications:
 Chuck Size: 8"
 Max Turning Diameter: 9.4"
 Max Swing: 15"
 Max Shaft Length: 23.6"
 Bar Capacity: 2.0"
 Travels:
  X-Axis: 7.9"
  Z-Axis: 24.8"
 Spindle Speed: 30 - 5000 RPM
 Spindle Nose: A2-6
 Turret: 10 Position KV Quick Change
 Rapid Traverse (X): 787 IPM
 Rapid Traverse (Z): 945 IPM
 Tailstock Stroke: 24.8"
 Tailstock Taper: MT5
 Spindle Motor: 15 HP
 Feed Motors (X/Z): 1.4 HP
 Coolant Pump: 1/4 HP

Equipped WIth:
 Multi CNC Control
 Tailstock
 Lots of holders
 All original manuals and documents
