2014 HAAS ST-30 | Lathes, CNC
Have one to sell?
1 available

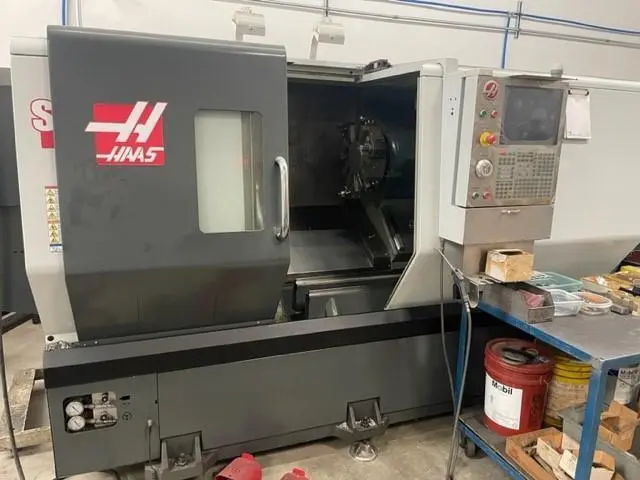

Haas ST-30 CNC Lathe
Haas ST-30 CNC Turning Center
New: 2014
Specifications:
Bar Capacity: 3.0"
Chuck Size: 10"
Spindle Speed: 3400 RPM
Spindle Motor: 30 HP
X-Axis Travel: 12.5"
Z-Axis Travel: 26"
Rapid Rates: 945 IPM
Turret: 12 Station
Max Turning Dia: 21"
Max Turning Length: 26"
Max Swing: 31"
Spindle Nose: A2-6
Equipped With:
Haas CNC Control
3400 RPM Gear Drive Spindle
High Pressure Coolant (300 PSI)
Chip Conveyor (Belt-Type)
Programmable Tailstock
Auxiliary Coolant Filter
Automatic Tool Presetter
Bolt-On Style Turret
Expanded Memory
High Intensity Lighting
Rigid Tapping
Spindle Orientation
Haas ST-30 CNC Lathe
Imperial
| Swing | 31" |
| Machining Length | 26" |
| # Axis | 2 |
| Chuck Size | 10" |
| Bar Capacity | 3" |
| Power | 30 hp |
| Max RPM | 3,400 RPM |
| Turning Dia | 21" |
| Tailstock | Yes |
| Live Tooling | |
| Sub Spindle |
Haas ST-30 CNC Turning Center
New: 2014
Specifications:
Bar Capacity: 3.0"
Chuck Size: 10"
Spindle Speed: 3400 RPM
Spindle Motor: 30 HP
X-Axis Travel: 12.5"
Z-Axis Travel: 26"
Rapid Rates: 945 IPM
Turret: 12 Station
Max Turning Dia: 21"
Max Turning Length: 26"
Max Swing: 31"
Spindle Nose: A2-6
Equipped With:
Haas CNC Control
3400 RPM Gear Drive Spindle
High Pressure Coolant (300 PSI)
Chip Conveyor (Belt-Type)
Programmable Tailstock
Auxiliary Coolant Filter
Automatic Tool Presetter
Bolt-On Style Turret
Expanded Memory
High Intensity Lighting
Rigid Tapping
Spindle Orientation
