| Swing | 26.57" | 674.88 mm |
| Machining Length | 19.85" | 504.19 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 3,530 hp | 2,632.3 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 18.73" | 475.74 mm |
| Tailstock | Yes | Yes |
| Dimensions | 104 x 70 x 73 | 104 x 70 x 73 |
| Weight | 10800 | 10800 |

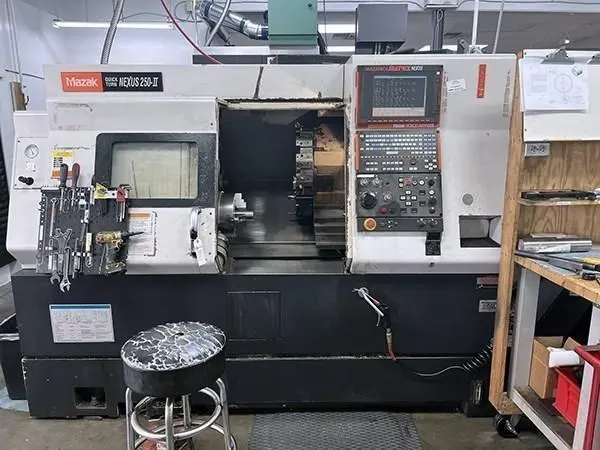

Mazak Quick Turn Nexus 250-II CNC Turning Center
New: 2008
SPECIFICATIONS:
MAX. SWING 26.57"
MAX TURNING DIAMETER 18.73"
SPINDLE BORE/MAX BAR CAPACITY 3.46"/ 3.0"
Z TRAVEL 20.25"
X TRAVEL 7.5"
MACHINING LENGTH 19.85"
CHUCK SIZE 10"
CHUCK TYPE Hydraullic
SPINDLE MOTOR 3530 hp
SPINDLE SPEEDS (RPM) 4000
SPINDLE BORE 3.46 in
MAX. BAR CAPACITY 3"
TURRET TOOL POSITIONS 12
TAILSTOCK Yes
CHIP CONVEYOR Yes
CONTROL CNC (MAZATROL MATRIX NEXUS)
DIMENSIONS 104" X 70" X 73"
WEIGHT 10,800LBS
EQUIPPED WITH:
MAZATROL NEXUS CNC CONTROL
CHIP CONVEYOR
KITAGAWA B-210 3 JAW CHUCK
This equipment is currently unavailable. Similar equipment available now is shown below.
