2014 MAKINO MCC2013-VG | Machining Centers, Horizontal
Have one to sell?
Noah Taubman
1 available

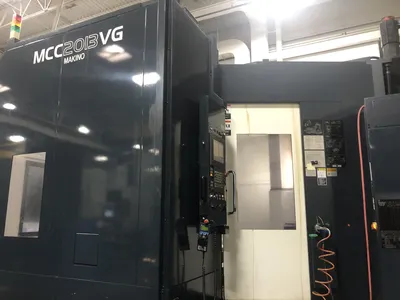

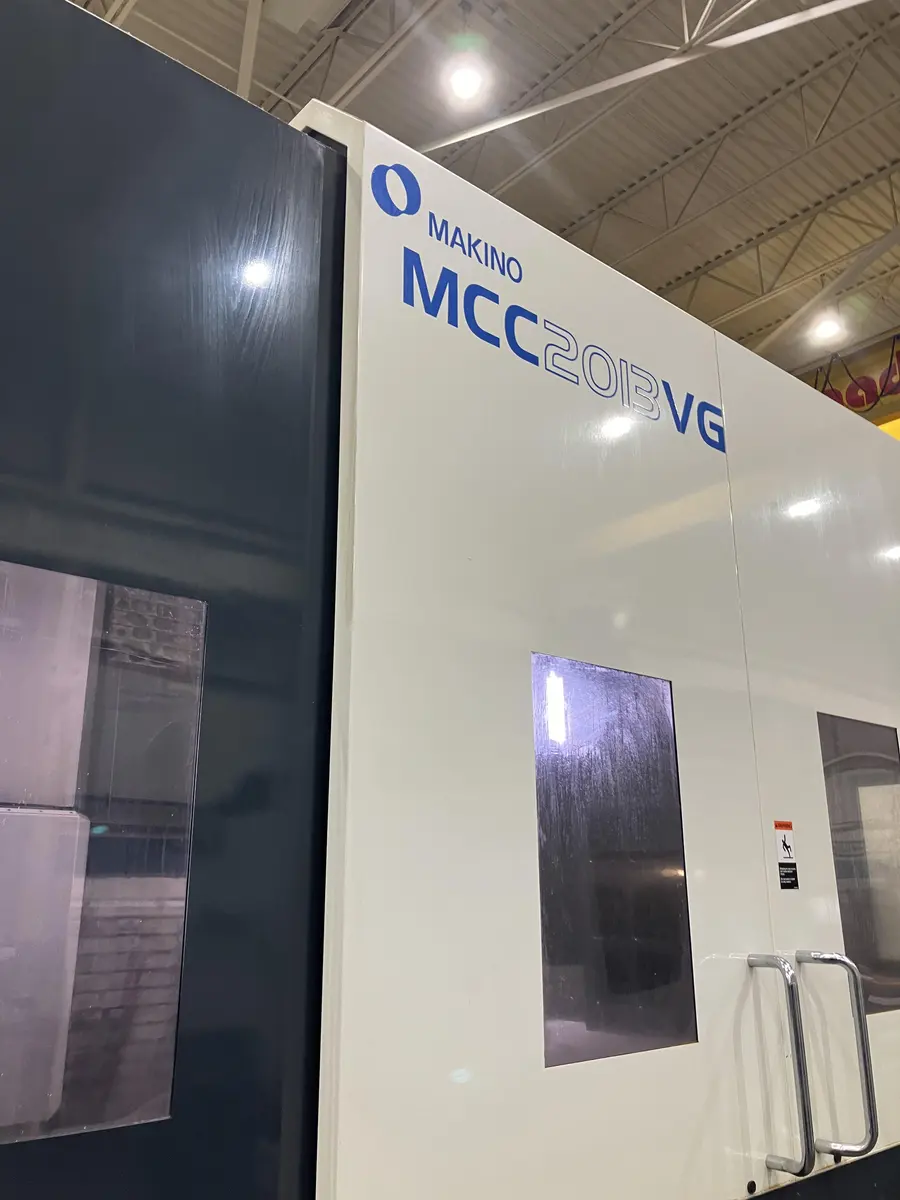

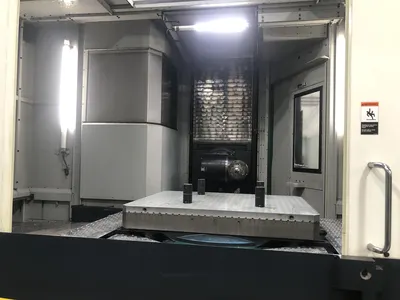

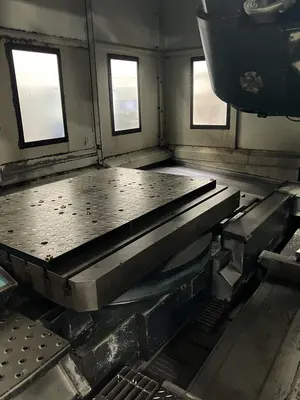

2014 Makino MCC2013VG 6-axis horizontal/vertical machining center for sale. It has 80" x 51.5" x 51.5" travels and a 59" x 47" table rated to 22,000 lb, with a full 4th-axis B rotary table and a 3+2 A/C indexing head. The HSK 100/A spindle runs to 12,000 RPM at 40 HP, with 2-range gear selection and coolant through spindle. The Makino Pro 5 (Fanuc Series 30i) control includes high-speed smooth TCP. Also equipped with Moire scale feedback, Renishaw probing, a Blum laser tool setter, a mist collector, and a lift-up chip conveyor. Includes a 120-tool ATC.
2014 Makino MCC2013VG 6-axis horizontal/vertical machining center for sale. It has 80" x 51.5" x 51.5" travels and a 59" x 47" table rated to 22,000 lb, with a full 4th-axis B rotary table and a 3+2 A/C indexing head. The HSK 100/A spindle runs to 12,000 RPM at 40 HP, with 2-range gear selection and coolant through spindle. The Makino Pro 5 (Fanuc Series 30i) control includes high-speed smooth TCP. Also equipped with Moire scale feedback, Renishaw probing, a Blum laser tool setter, a mist collector, and a lift-up chip conveyor. Includes a 120-tool ATC.
Imperial
| X-Axis | 78.7" |
| Y-Axis | 51.2" |
| Z-Axis | 51.2" |
| Power | 40 hp |
| RPM | 12,000 RPM |
| # ATC | 120 |
| Taper | HSK 100/A |
| Pallet-W | 47.2" |
| Pallet-L | 59" |
| # Axis | 6 |
| Control | CNC (Makino Pro 5) |
