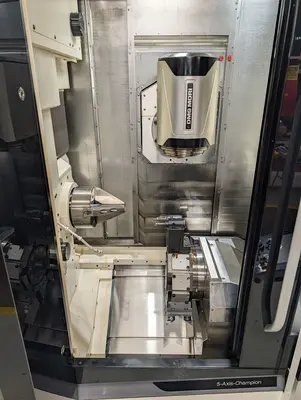

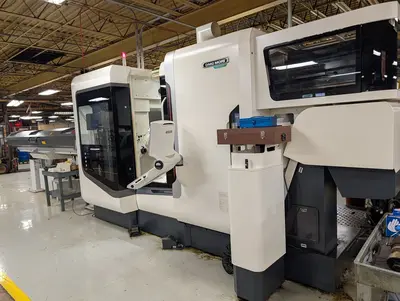

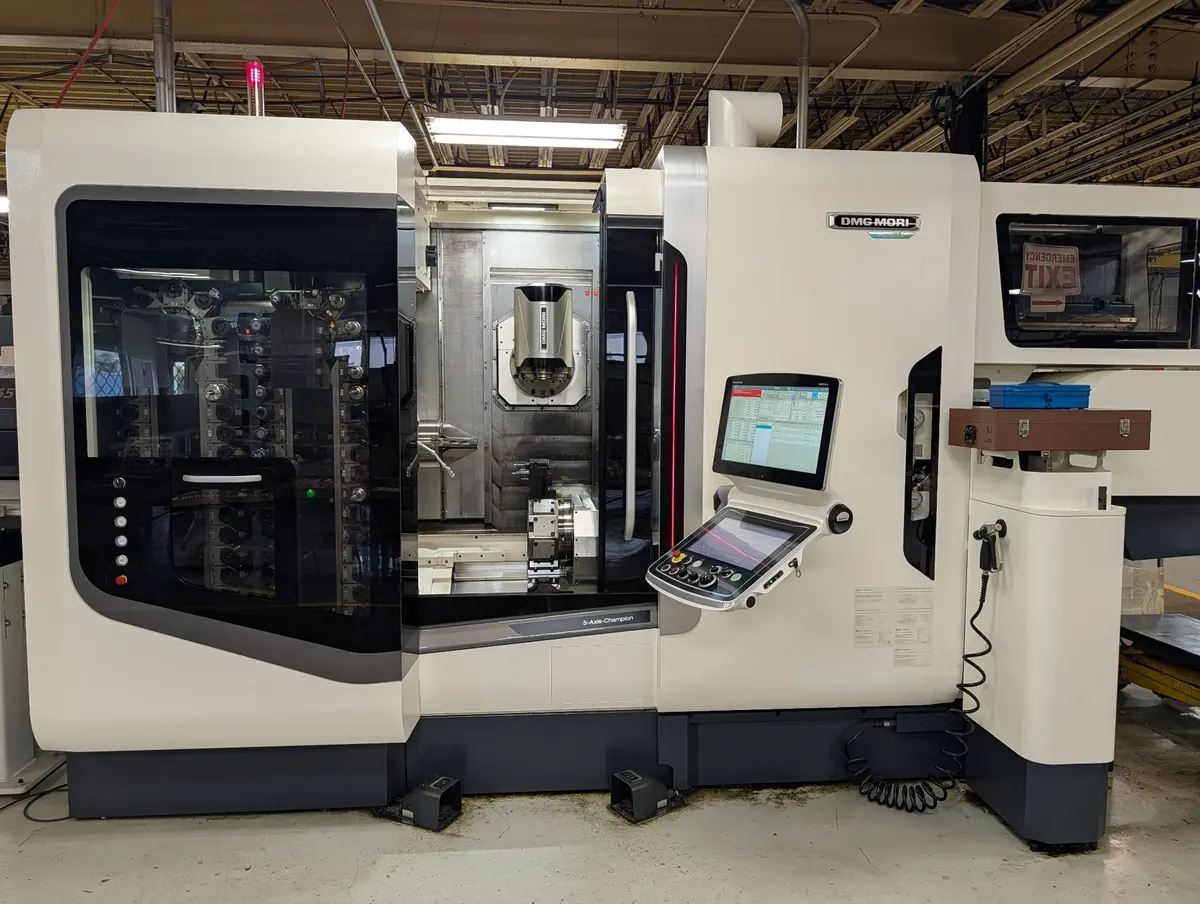

2022 DMG MORI NTX 1000 SZM GEN II MULTI AXIS CNC LATHE
Have one to sell?
Noah Taubman
1 available
2022 DMG MORI NTX 1000 SZM GEN II CNC Lathe, used, with Fanuc NC System, high-speed turn-mill spindle, 76-tool magazine capacity, parts umloader, part stacker. lower turret with milling, sub spindle, parts unloader, fmb turbo magazine barfeed.
HOURS
- Main spindle cutting time: 2,673 hrs
- Spindle 2 cutting time: 117 hrs
CONTROL
- FANUC F31iB5 with CELOS ERGOline Touch
- 3D quickSET (FANUC)
- Inch setting unit
- Additional optional block skip (soft key type 2-9)
- Alternating speed
- Keyway broaching (FANUC)
- X-axis direction: JIS/ISO standard
SPINDLES
- Left (main) spindle: 5,000 rpm, 73 mm through-spindle bore
- Right (counter) spindle: 6,000 rpm, 11/7.5 kW

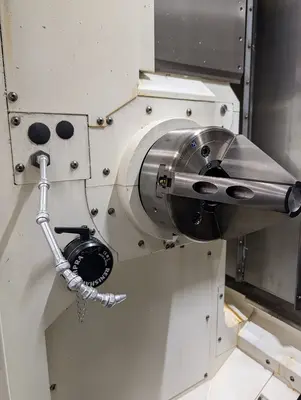

- Left chuck: Kitagawa 8" hollow chuck BR08A621, 65 mm (2.55") bar capacity

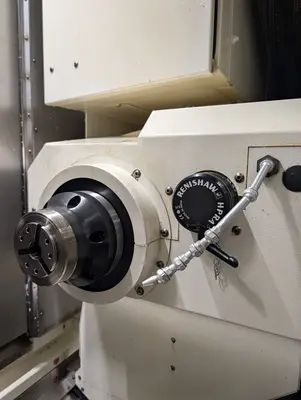

- Right chuck: Kitagawa 6" hollow chuck BR06A521F, 52 mm (2.04") bar capacity
- Right spindle workpiece ejector
- Air blow for chuck, both spindles
TOOLING

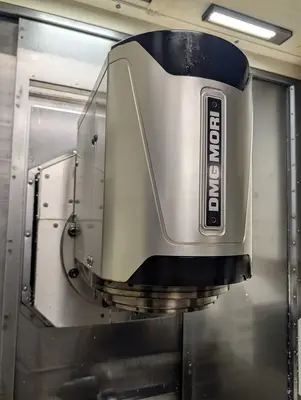

- High-speed turn-mill spindle: 20,000 rpm, 9/5.5 kW, 49.4 Nm (15% ED) / 21.9 Nm, Capto C5
- Full B-axis indexing on turn-mill spindle

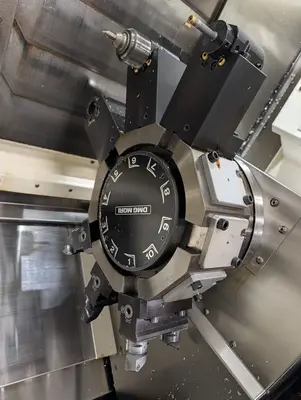

- Lower turret (Turret 2): 10-station bolt-tightened, live milling 10,000 rpm, 1.5/1.2 kW, 4.8/2.3 Nm

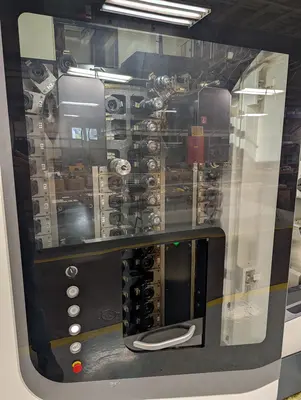

- 76-tool magazine (Capto C5)
- Tailstock function on turret
MEASURING
- Manual in-machine tool presetter (removable, left spindle)
- Renishaw RMP600 radio-signal workpiece probe
COOLANT AND CHIPS
- Water-soluble coolant

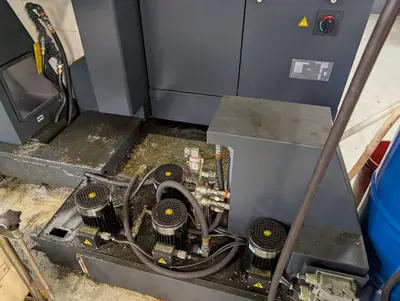

- Interface for high-pressure coolant (7.0 MPa / ~1,000 psi, variable pressure, KNOLL), through turn-mill spindle and Turret 2
- Coolant gun
- Chip conveyor, right discharge, hinge type with drum filter
- Mist collector interface (200 mm duct)
- Multi dry filter
AUTOMATION
- Workpiece unloader (right spindle) with unloading conveyor and parts stocker
- Bar feeder interface (EtherNet/IP)
- EtherNet/IP interface
- IoTconnector
- 4-color signal light
ELECTRICAL
- 220V / 60 Hz
- Color: Calcite White
- Manuals available online
2022 DMG MORI NTX 1000 SZM GEN II CNC Lathe, used, with Fanuc NC System, high-speed turn-mill spindle, 76-tool magazine capacity, parts umloader, part stacker. lower turret with milling, sub spindle, parts unloader, fmb turbo magazine barfeed.
Imperial
| Swing | 17.7" |
| Machining Length | 31.5" |
| Chuck Size | 8" |
| Bar Capacity | 2.5591" |
| Power | 60.3 hp |
| Max RPM | 4,500 RPM |
| Turning Dia | 16.9" |
