2014 VISION WIDE V-Tec SF-3120 | Machining Centers, Gantry (incld. Bridge & Double Column)
Have one to sell?
Noah Taubman
1 available

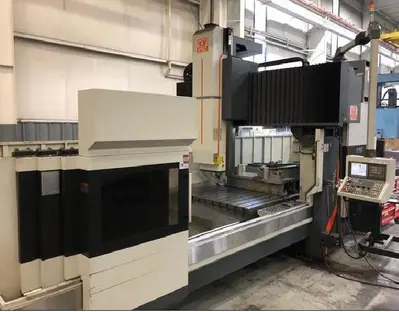

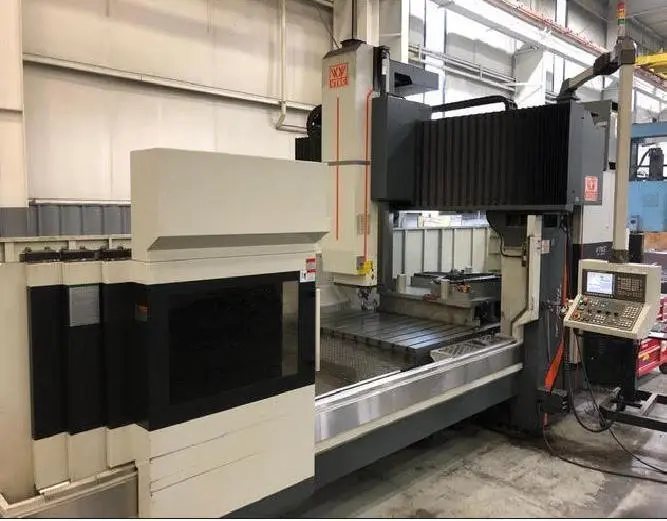

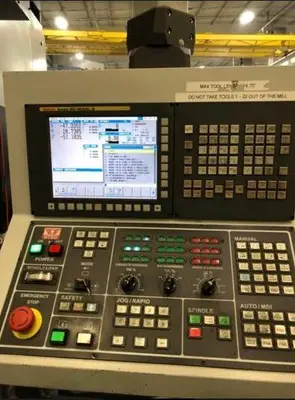

2014 Vision Wide VTEC SF-3120 CNC bridge mill, used, for sale. 125" x 80" x 39" travels over a 118" x 71" T-slot table, with 83" between columns and 47" bridge clearance. CAT 50 spindle to 6,000 RPM with a 2-speed geared head, 40-tool ATC, 300 PSI coolant through spindle, and Fanuc 31i-MB control with AICC II Nano high-speed machining. Also equipped with chip conveyor, chip augers, and a bag coolant filter. Linear guides on X and Y with a box way Z for heavy CAT 50 cutting across the full 125" X stroke.
| (2) Speed geared head |
| AICC II Nano high speed machining (Look Ahead Machining) |
| Bag coolant filter system |
| Chip augers |
| Chip Conveyor |
| Coolant through spindle 300 PSI |
| Linear guides X & Y Axis |
2014 Vision Wide VTEC SF-3120 CNC bridge mill, used, for sale. 125" x 80" x 39" travels over a 118" x 71" T-slot table, with 83" between columns and 47" bridge clearance. CAT 50 spindle to 6,000 RPM with a 2-speed geared head, 40-tool ATC, 300 PSI coolant through spindle, and Fanuc 31i-MB control with AICC II Nano high-speed machining. Also equipped with chip conveyor, chip augers, and a bag coolant filter. Linear guides on X and Y with a box way Z for heavy CAT 50 cutting across the full 125" X stroke.
Imperial
| X | 125" |
| Y | 80" |
| Z | 39" |
| Power | 24 hp |
| RPM | 6,000 RPM |
| # ATC | 40 |
| Taper | Cat 50 |
| Table-W | 118" |
| Table-L | 71" |
| (2) Speed geared head |
| AICC II Nano high speed machining (Look Ahead Machining) |
| Bag coolant filter system |
| Chip augers |
| Chip Conveyor |
| Coolant through spindle 300 PSI |
| Linear guides X & Y Axis |
