2012 MAZAK INTEGREX J300 | Turning Centers
Have one to sell?
Noah Taubman
1 available

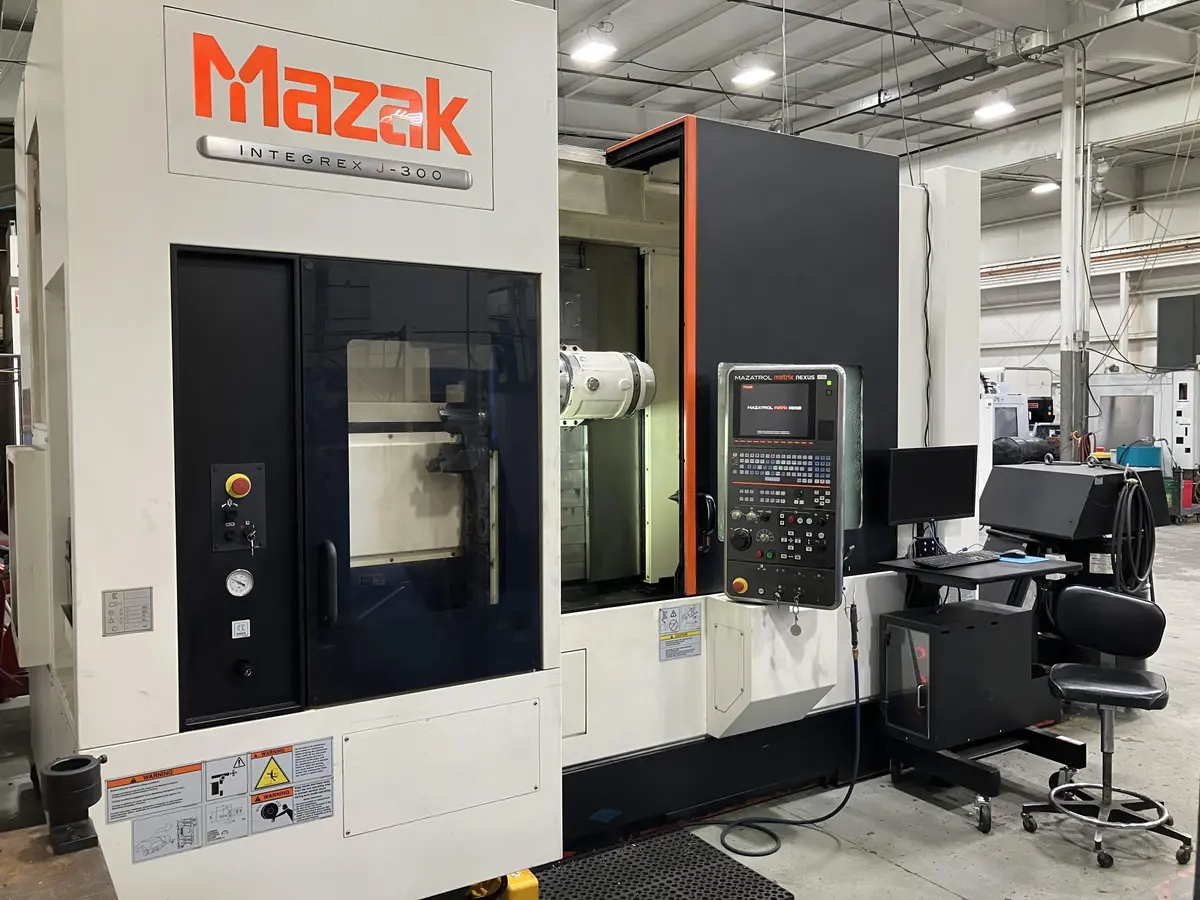

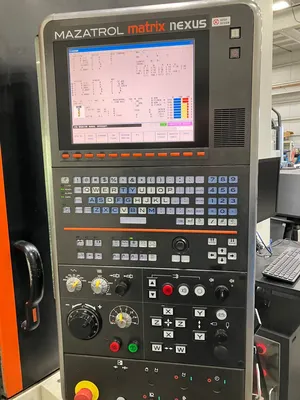

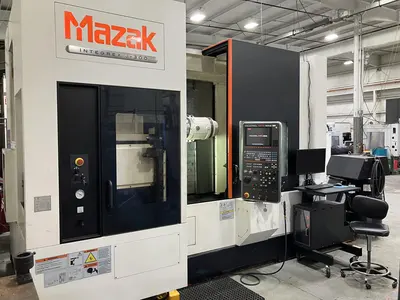

2012 Mazak Integrex j-300 multi-tasking CNC turn-mill for sale, used, with Mazatrol Matrix Nexus control. B-axis milling head with 3+2 positioning, 12,000 RPM milling spindle, and 36-tool ATC for done-in-one turning and milling. 4,000 RPM turning spindle, 10 in 3-jaw chuck, hydraulic tailstock, and 47 in between centers. X/Y/Z travels of 615/260/1231 mm (24/10.2/48.4 in), Capto C6 tooling, and coolant-through milling spindle.
| B-axis milling head, 3+2 positioning |
| Capto C6 milling tool interface (C6 holders included) |
MULTI-TASKING / B-AXIS

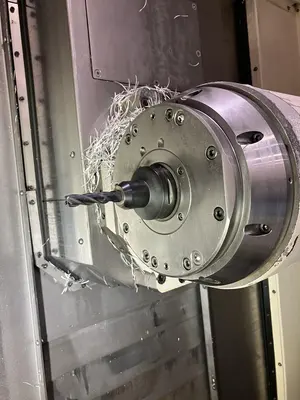

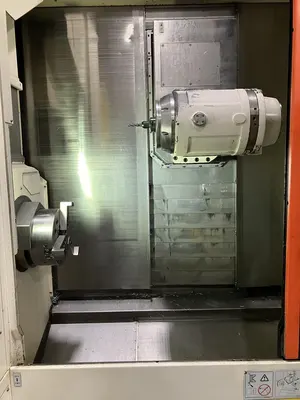

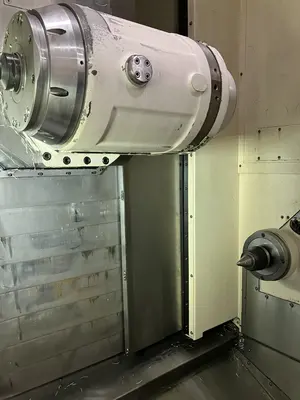

- B-axis milling head, 3+2 positioning
- Milling spindle 12,000 RPM
- C-axis
- Y-axis
- 36-position ATC
- Capto C6 milling tool interface (C6 holders included)
CAPACITY (beyond table)
- 47 in between centers
TRAVELS
- X 615 mm (24 in)
- Y 260 mm (10.2 in)
- Z 1,231 mm (48.4 in)
- Rapids X/Y/Z 50,000 / 40,000 / 50,000 mm/min
(1,969 / 1,575 / 1,969 IPM)
WORKHOLDING / EQUIPPED
- 10 in Kitagawa 3-jaw power chuck
- Hydraulic tailstock (no sub-spindle)
- Coolant-through milling spindle
- Chip conveyor
