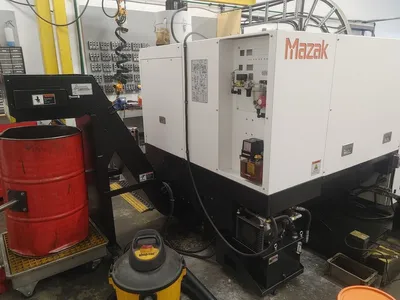

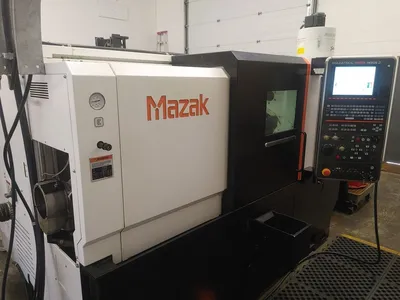

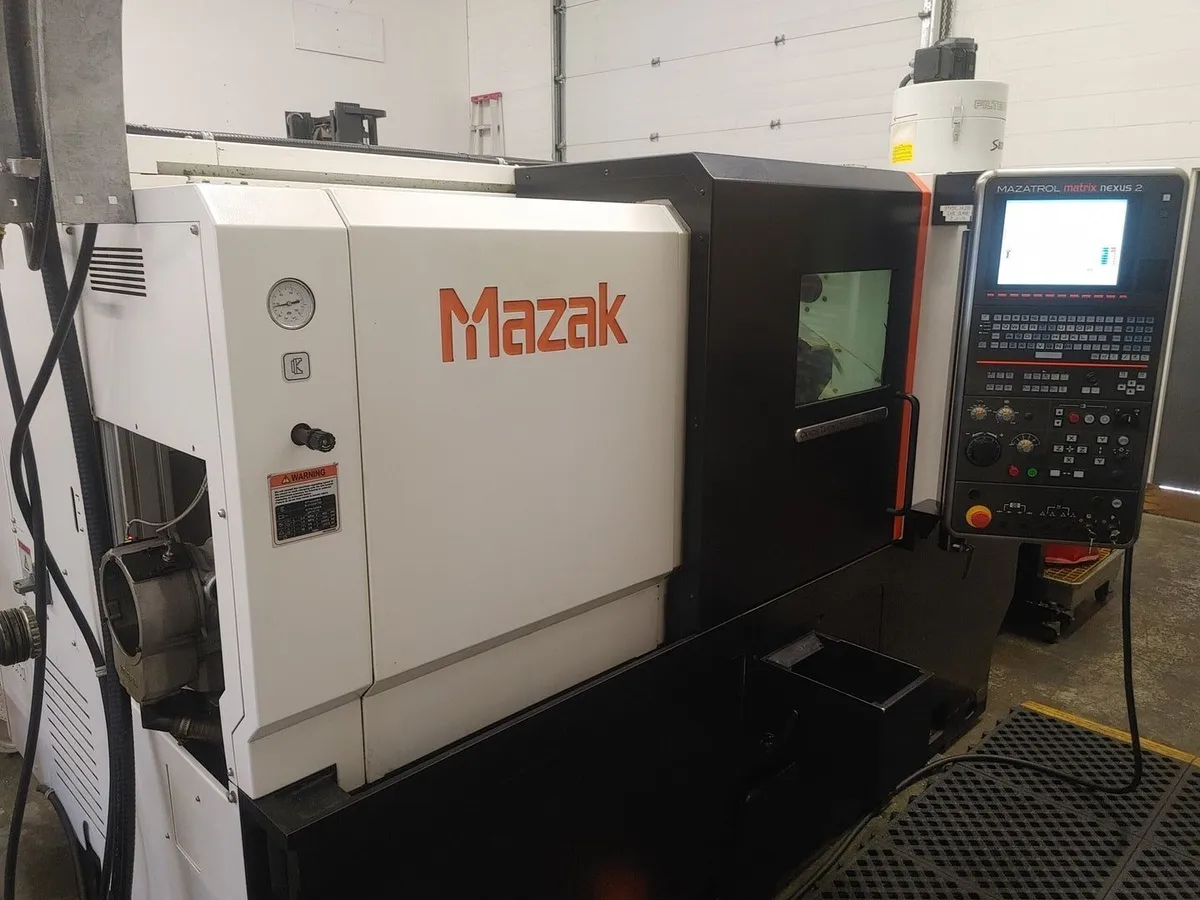

2016 Mazak Quick Turn 350MY 4-axis CNC turn-mill center with Y-axis and live tooling. Features 29.5" swing, 12.5" max turning diameter, 18" max turning length, 4" spindle bore, 25 HP main spindle at 3,500 RPM, and 4,500 RPM live tool spindle. Equipped with Mazatrol Matrix 2 Nexus control, 12-station BMT turret, Kitagawa B-210 10" 3-jaw hydraulic chuck, Renishaw tool setter, programmable tailstock, parts catcher, side-exit chip conveyor, and Filtermist mist collector. 2 axial + 2 radial live tools at any turret position.
AXIS TRAVELS (from home position)
- X-Axis: -16.23 in (to tailstock barrier)
- Z-Axis: -21.25 in
- Y-Axis: +/- 1.99 in (envelope varies with X position)
- At X +1.00: Y +1.99 / Y -1.25
- At X +3.00: Y +1.99 / Y -1.83
- At X +4.00: Y +1.99 / Y -1.99
SPINDLE
- Main Spindle Max Speed: 3,500 RPM
- Main Spindle Motor: 25 HP
- Live Tool Spindle Max Speed: 4,500 RPM
CAPACITY
- Max Practical Turning Diameter: 12.5 in
- Max Practical Turning Length: 18 in
RUNTIME
- Power-On Hours: 13,264
- Auto Operation Hours: 6,512
EQUIPPED WITH
- Mazatrol Matrix 2 Nexus CNC Control

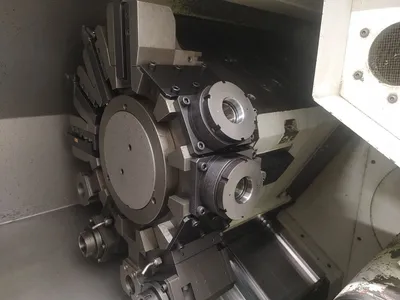

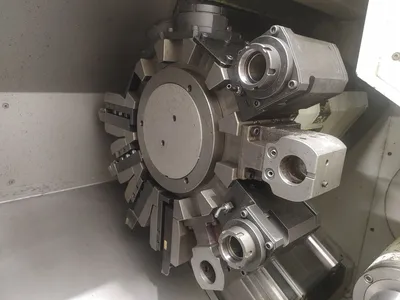

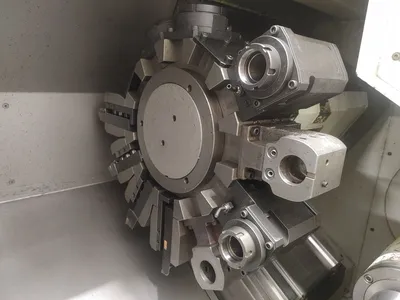

- 12-Station BMT Turret with Live Tooling (Axial and Radial)
- Kitagawa B-210 10" 3-Jaw Hydraulic Chuck
- Through-Coolant Capability (1 ID Position)

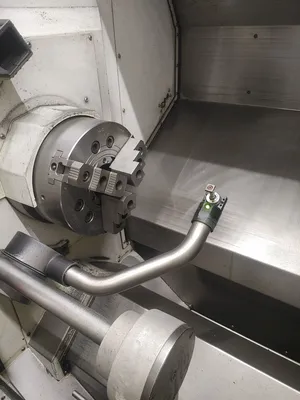

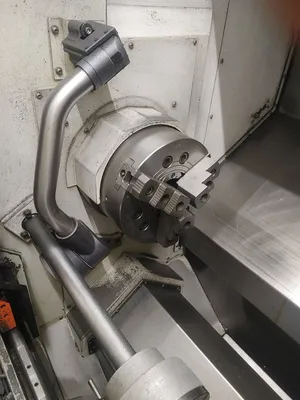

- Renishaw Tool Setter

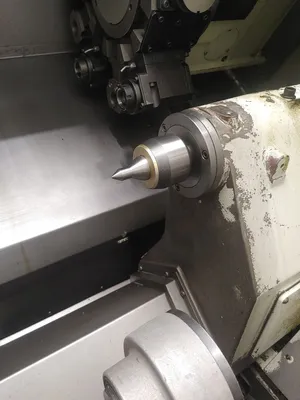

- Programmable Tailstock

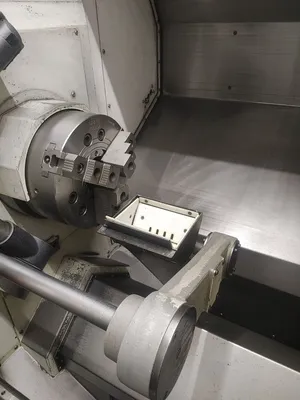

- Parts Catcher
- Side-Exit Chip Conveyor
- Top-Mounted Filtermist Mist Collector
LIVE TOOLING CONFIGURATION
- Live Tooling at Any Turret Position
- 2 Axial Live Tools
- 2 Radial Live Tools
- 4 OD Tool Mounts
- 4 ID Tool Mounts (1 with Through-Coolant)
ELECTRICAL
- Voltage: 208V, 3-Phase, 50/60 Hz
- Control Circuit: AC 100V / DC 24V
- Rated Capacity: 35 kVA
- Rated Current: 97 A
- SCCR: 50 kA
