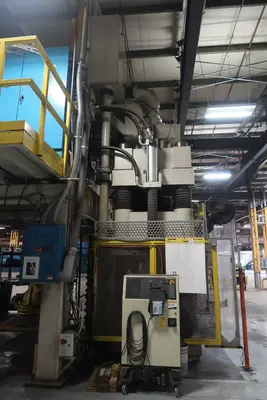

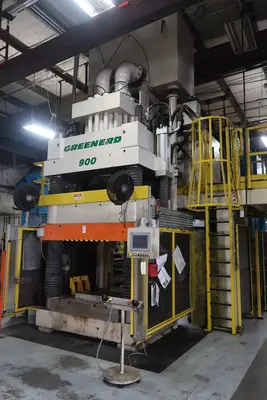

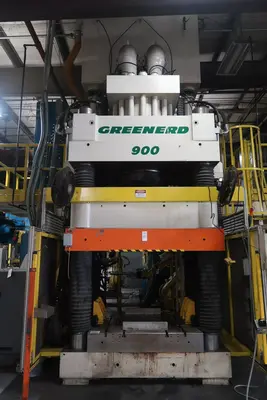

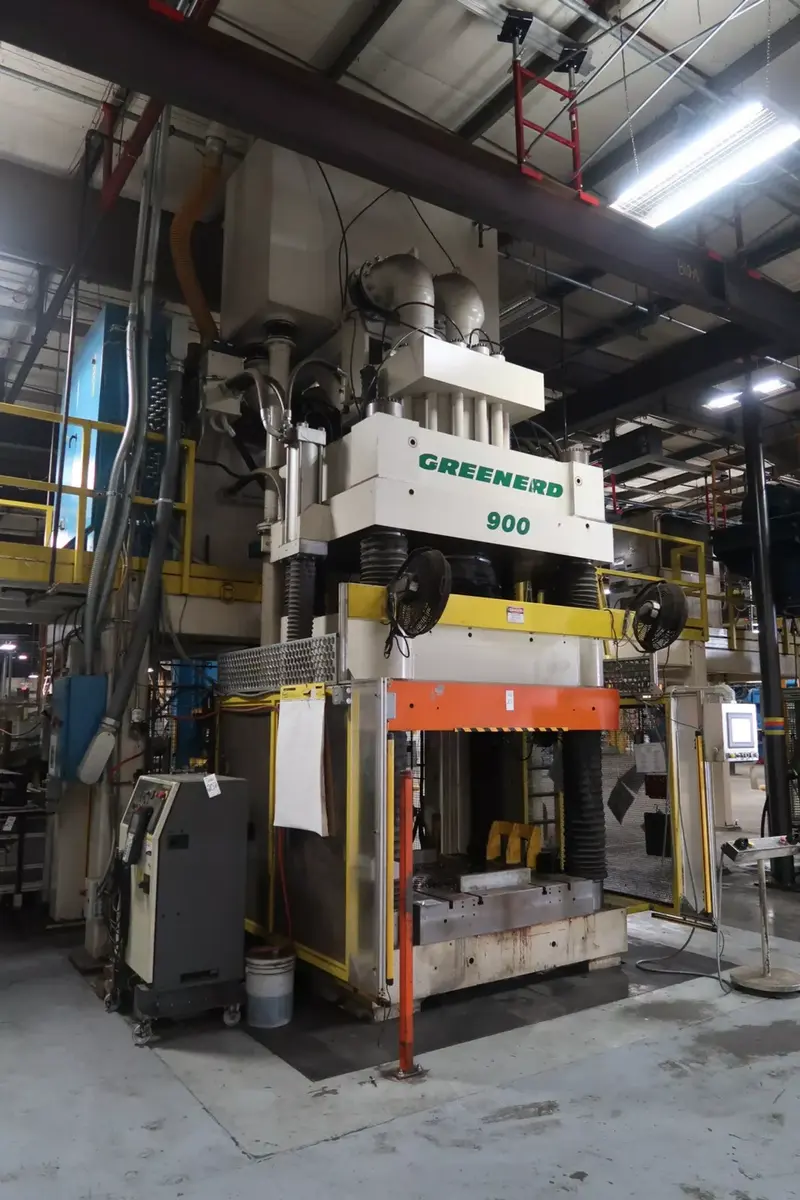

2017 Greenerd 4TA-900/700 four-post hydraulic deep draw press with 900-ton main cylinder and 700-ton cushion cylinder. Features 60 in x 60 in work area, 51 in daylight, 24 in stroke, and Allen-Bradley 10.5 in color touchscreen press control with closed-loop pressure, position, and speed control. Includes Fanuc R-2000iB/210F loading robot, harsh environment package, Sitema ram locks, light curtain safety system, Vibro Dynamics isolators, and full recipe storage. Originally $1.13M new.
2017 Greenerd 4TA-900/700-60x60-75R160PRE-67RPRE
900-Ton 4-Post Hydraulic Deep Draw Press with 700-Ton Cushion
Includes Fanuc R-2000iB/210F Loading Robot
Original New Cost: $1,130,060
================================================
CAPACITY
- Main Cylinder Force: Adjustable 180 to 900 tons
- Cushion Cylinder Force: Adjustable 140 to 700 tons
- Main Cylinder Work Area: 60 in x 60 in (between posts)

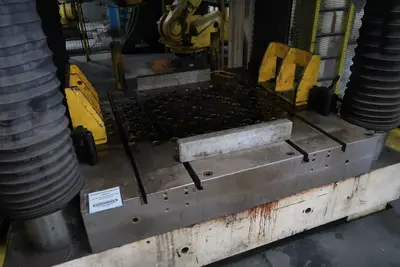

- Bed Bolster: 60 in x 60 in (with die clamp supports)
- Main Cylinder Daylight (Max Open): 51 in
- Main Cylinder Stroke: Adjustable to 24 in (max)
- Main Cylinder Shut Height: 27 in
- Main Cylinder Bore Diameter: 28 in
- Main Cylinder Ram Diameter: 24 in
- Cushion Cylinder Daylight: 19 in
- Cushion Cylinder Stroke: Adjustable to 19 in (max)
- Cushion Cylinder Bore Diameter: 24 in
- Cushion Cylinder Ram Diameter: 10 in
- Cushion Cylinder Platen: 48 in L-R x 36 in F-B
- Bed-to-Floor Height: 29 in
UPPER CYLINDER BLANKHOLDER KNOCKOUT
- Knockout Force: 1/2 Ton (fixed)
- Stroke: 2 in (fixed)
RAM SPEEDS
- Main Cylinder Rapid Close: 1,382 IPM
- Main Cylinder Pressing: 53 IPM
- Main Cylinder Rapid Open: 1,440 IPM
- Cushion Cylinder Extend: 607 IPM
- Cushion Cylinder Retract: 485 IPM

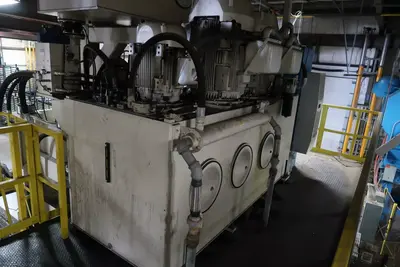

HYDRAULIC SYSTEM
- Motor Capacities: 25, 50, 125, 125 HP (all with Soft Start), 1,800 RPM
- Pump Capacities: 33 x 2 / 47 x 2 / 67 / 75 GPM
- System Type: Multi-Pump Regenerative/Prefill
- Reservoir Capacity: 1,150 gallons minimum
- Max System Pressure: 2,598 PSI
- Return Line Filter: 10-micron with replaceable element
MACHINE DIMENSIONS
- Overall Width (L-R): 138 in
- Overall Height Above Floor: ~235 in
- Overall Depth Below Floor: ~104 in
- Estimated Total Weight (Press + Power Unit): 150,000 lb
ELECTRICAL
- 460V, 3-Phase, 60 Hz
CONTROL
- Allen-Bradley 10-1/2" Color Electronic Press Control
- Allen-Bradley PLC
PRODUCTION ESTIMATES (Greenerd-calculated)
- Total Cycle Time: 13.15 sec
- Useable Cycle Time (95% efficiency): 13.81 sec
- Strokes Per Minute: 4.35 SPM
- Strokes Per Hour: 260.7 SPH
================================================
EQUIPPED WITH

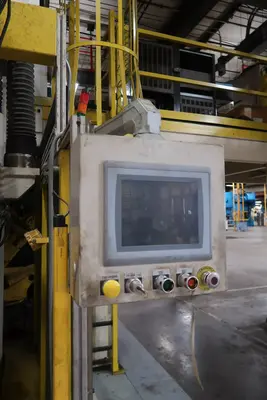

- Allen-Bradley 10-1/2" Color Electronic Press Control with Touchscreen
- Allen-Bradley Programmable Logic Controller
- Closed-Loop Pressure Control (+/- 5% repeatable accuracy)
- Closed-Loop Position Control (+/- 0.020" repeatable accuracy)
- Closed-Loop Speed Control (20% to 100% pressing speed adjustment)
- Upper Cylinder Blankholder Knockout (1/2 Ton, 2" stroke)

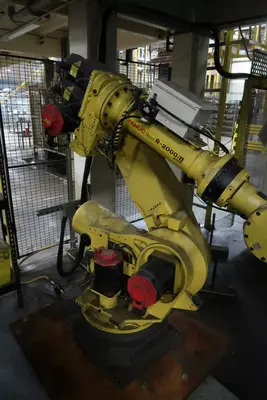

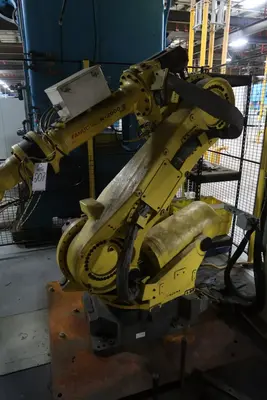

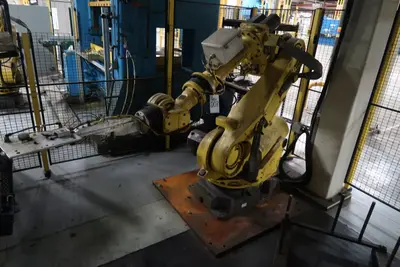

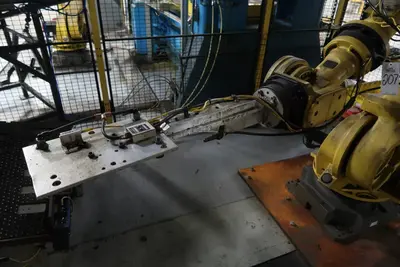

- Fanuc R-2000iB/210F Loading Robot
- Water-Cooled Heat Exchanger with Temperature Control Valve

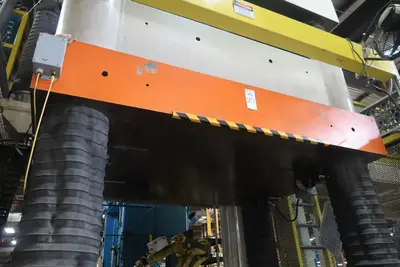

- Harsh Environment Package (10-micron filters, flexible guidepost covers, canister breather)
- Light Tower (Red/Yellow/Green) with Audible Cycle Alarm
- Electronic Dual Hand Controls (Banner Opto-Touch break-beam buttons)
- Keyed Auxiliary Cycle Switch (Jog/Run/Aux modes)
- Vibro Dynamics Micro Level Isolators (Model 16M1500-1.25M8)
- Light Curtain with Fixed Side Guards and Hinged Interlocked Rear Guard
- Sitema-Style Pneumatic Ram Locks (12,000 lb tool capacity)
- Recipe Storage (1,000+ recipes)
- Dwell Timer (up to 10 sec)
- Tonnage and Reversal Position Trend Display (last 10 cycles)
- Low Oil Level, High Oil Temp, and Contaminated Filter Fault Indicators
- Distance Reversal and Pressure Reversal
- Pre-Slow Down Circuit
- NEMA 12 Main Control Cabinet with Fusible Disconnect and Lock-Out
- ANSI B11.2-1995 (R-2010) Compliant
- Graphite Plugged Bronze Blankholder Bearings
- Four Shouldered/Piloted Steel Columns
- TEFC C-Face Motors (Direct Pump Mount)
- 25, 50, 125, 125 HP Motors with Soft Start (1,800 RPM)
