2017 Parpas Diamond Linear 30 5-axis bridge-type CNC milling machine with Heidenhain TNC 640 HSCI control and 120-station automatic tool changer. Features 118" x 102" x 55" travels, 20,000 RPM HSK-63-A spindle, 52 HP, and 50-bar through-spindle coolant. Equipped with a 5-axis continuous orthogonal head, Blum laser tool setter, m&h radio frequency probe, and Losma paper coolant filtration.

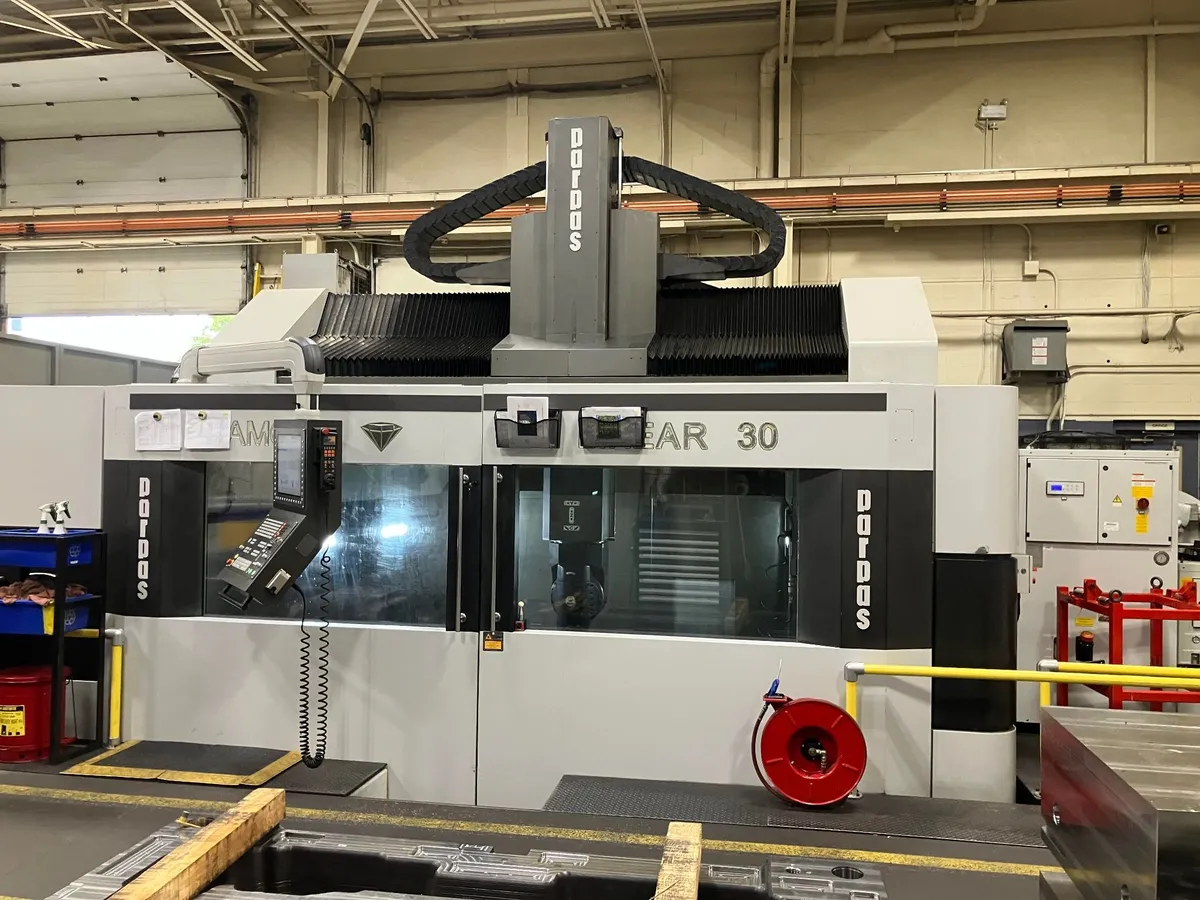

Parpas Diamond Linear 30 — 5-Axis Bridge Type CNC Milling Machine
Year: 2017
Heidenhain TNC 640 HSCI CNC Control

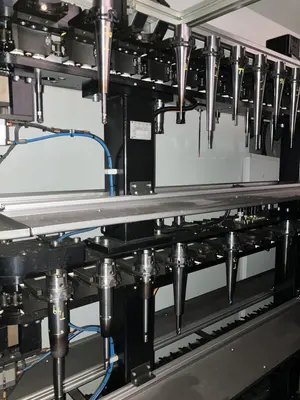

120-Station Automatic Tool Changer
5-Axis Continuous Orthogonal Head
Dual Chip Conveyors
================================================
CAPACITY
- X-Axis (Longitudinal): 118.11 in
- Y-Axis (Transversal): 102.36 in
- Z-Axis (Vertical): 55.11 in
- C-Axis (Ram Rotation): 0.001° resolution
- C-Axis (Ram Range): +/- 370°
- A-Axis (Head Sweep): +/- 110°
- Work Table: 122.04 in x 110.23 in
- Spindle Speed: 20,000 RPM
- Spindle Taper: HSK-63-A
- Spindle Motor: 52 HP
- Feed Rate: 236.232 IPM
- Approx. Machine Dimensions: 296.4 in x 259.84 in x 226.9 in
================================================
EQUIPPED WITH
- Heidenhain TNC 640 HSCI CNC Control
- 120-Station Automatic Tool Changer
- 5-Axis Continuous Orthogonal Head
- Dual Chip Conveyors

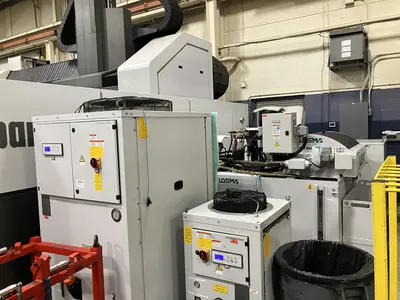

- Losma Paper Coolant Filter System
- High Pressure Through-Spindle Coolant (50 Bar)
- Air Through Spindle
- Blum Laser Tool Setter / Pick-Up
- m&h Radio Frequency Probe
