2019 FRYER TC-120V | Machining Centers, Vertical, (5-Axis or More)

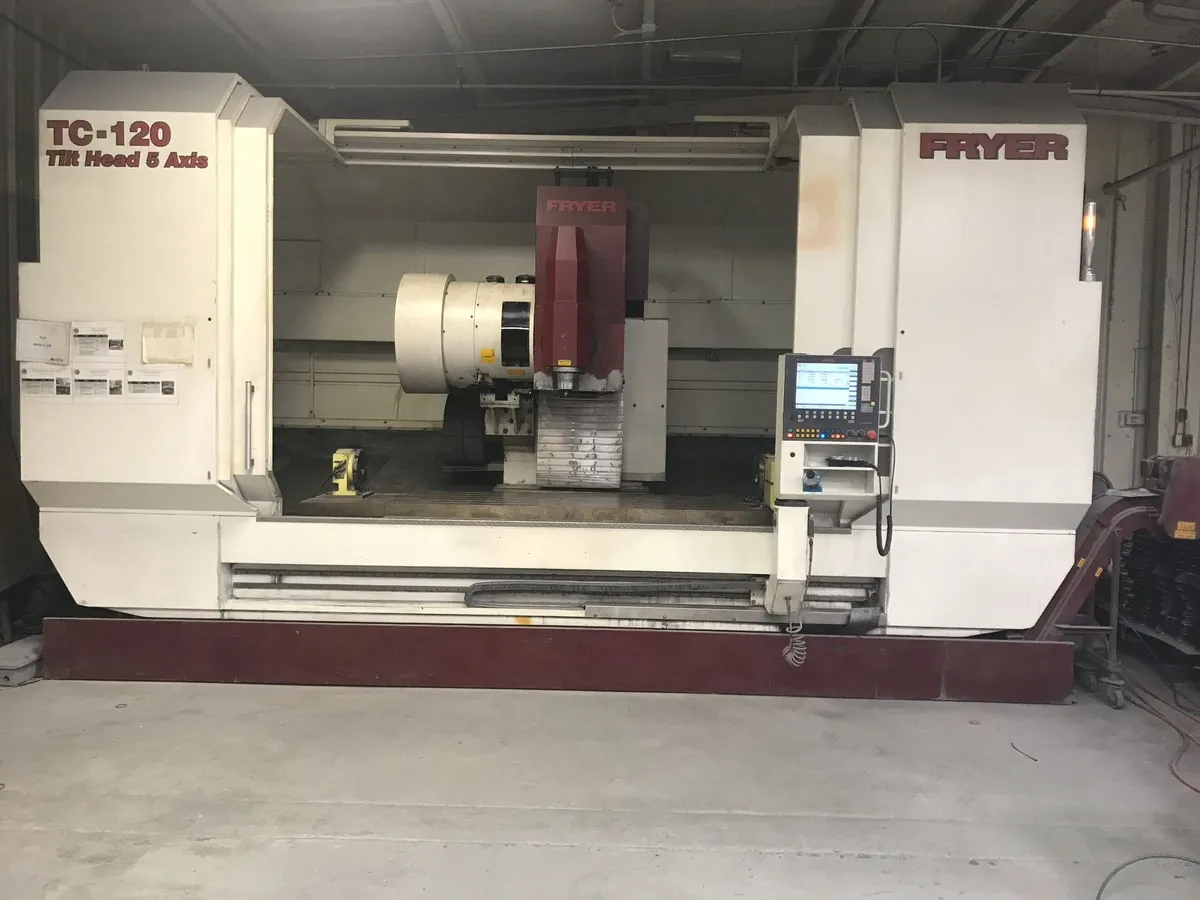

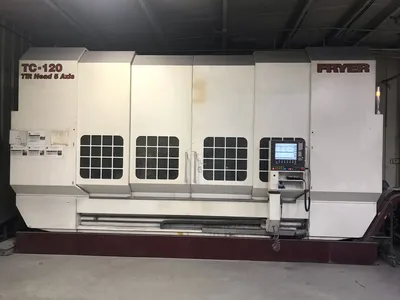

Fryer TC-120V Traveling Column 5-Axis Vertical Machining Center
New: 2019

Specifications:
Travels:
X-Axis: 120"
Y-Axis: 32"
Z-Axis: 28"
B-Axis: +/- 100°
A-Axis: +/- 360°
Table Size: 120" x 32"
Table Load: 10,000 Lbs
T-Slots: 6/.787"
Table Top to Floor: 38"
Spindle Motor: 40 HP
Spindle Speed: 18,000 RPM
Spindle Taper: CAT 40 BIG PLUS
Spindle Center-Column: 32"
Tool Changer: 24 ATC

Equipped With:
Siemens 840D SL CNC Control
Full 5-Axis Contouring
Nikken 10" High Accuracy Rotary Table
10" Nikken Heavy Duty Tailstock with Brake
Automatic Door System
Chip Conveyor
Chip Washdown System
Roller Linear Ways
300 PSI Coolant Thru Spindle

Dimensions: 245" x 138" x 118" H, 42000 Lbs
