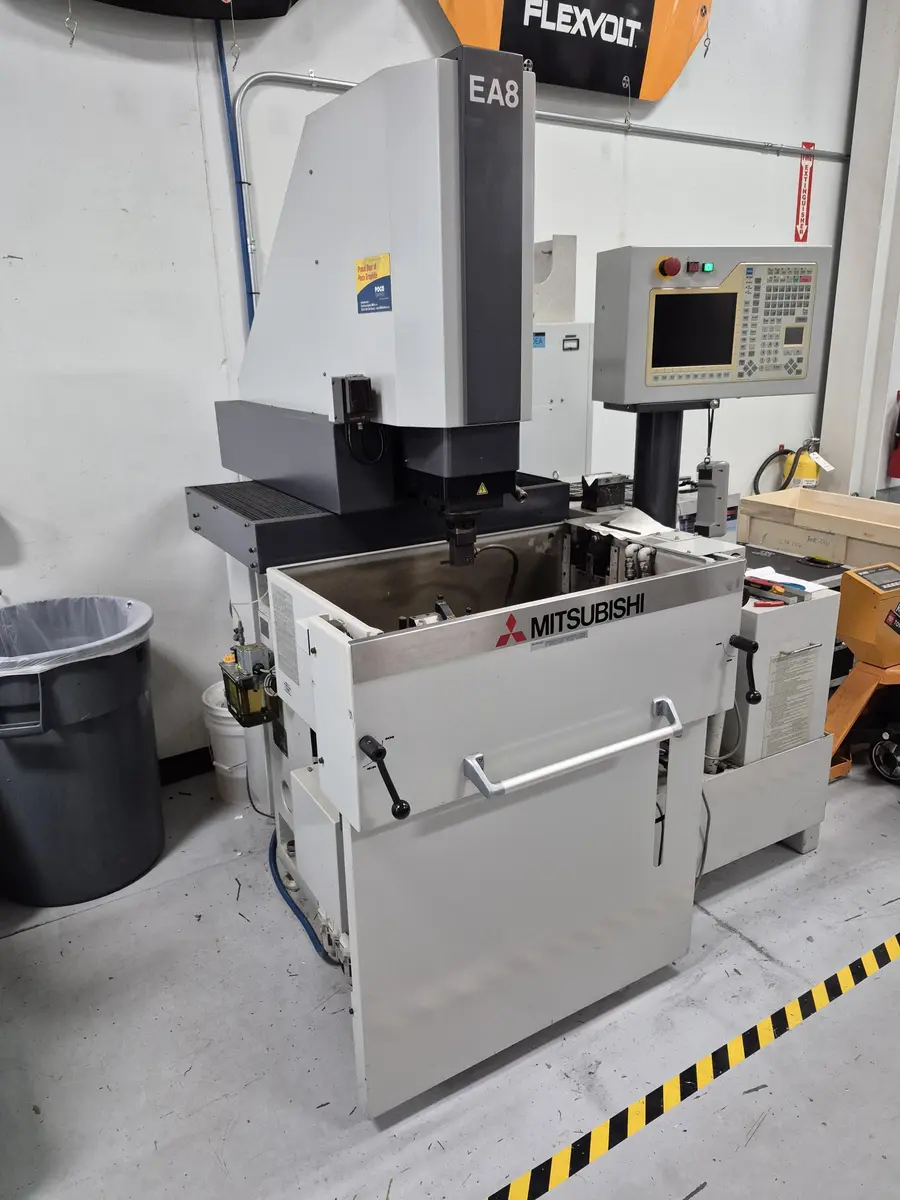

Mitsubishi EA8M CNC Sinker EDM
New: 2011
Specifications:
X Axis Travel: 11.8″
Y Axis Travel: 9.8″
Z Axis Travel: 9.8″
Table Size: 19.69″ x 13.78″
Max Workpiece Weight: 1,200 LBS
Max Dielectric Fluid Level: 3.4″- 9.8″
Internal Worktank Dimensions: 30.3″ x 19.7″ x 9.8″
Table To Platen Distance: 7.87-17.72″
Rapid Travel Speed: 78 IPM
Machine Weight: 3,500 LBS
Equipped With:

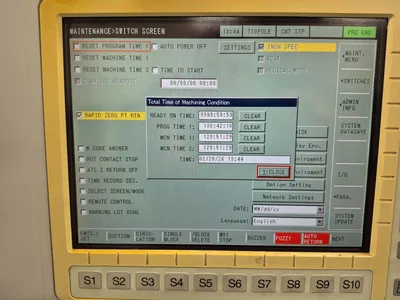

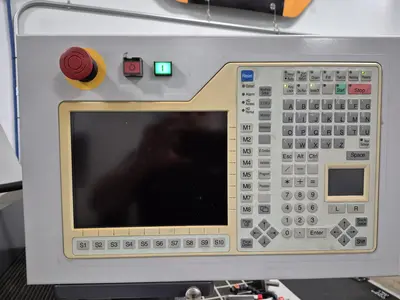

Mitsubishi CNC Control
Chiller
Auto Feeder
