2007 CITIZEN C16 VIIA | Automatic Screw Machines, Swiss Type
Have one to sell?
1 available

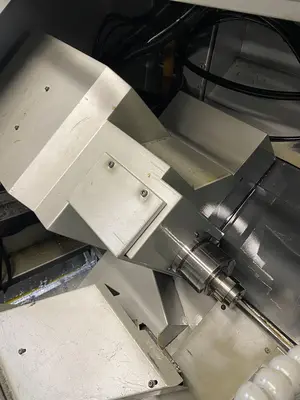

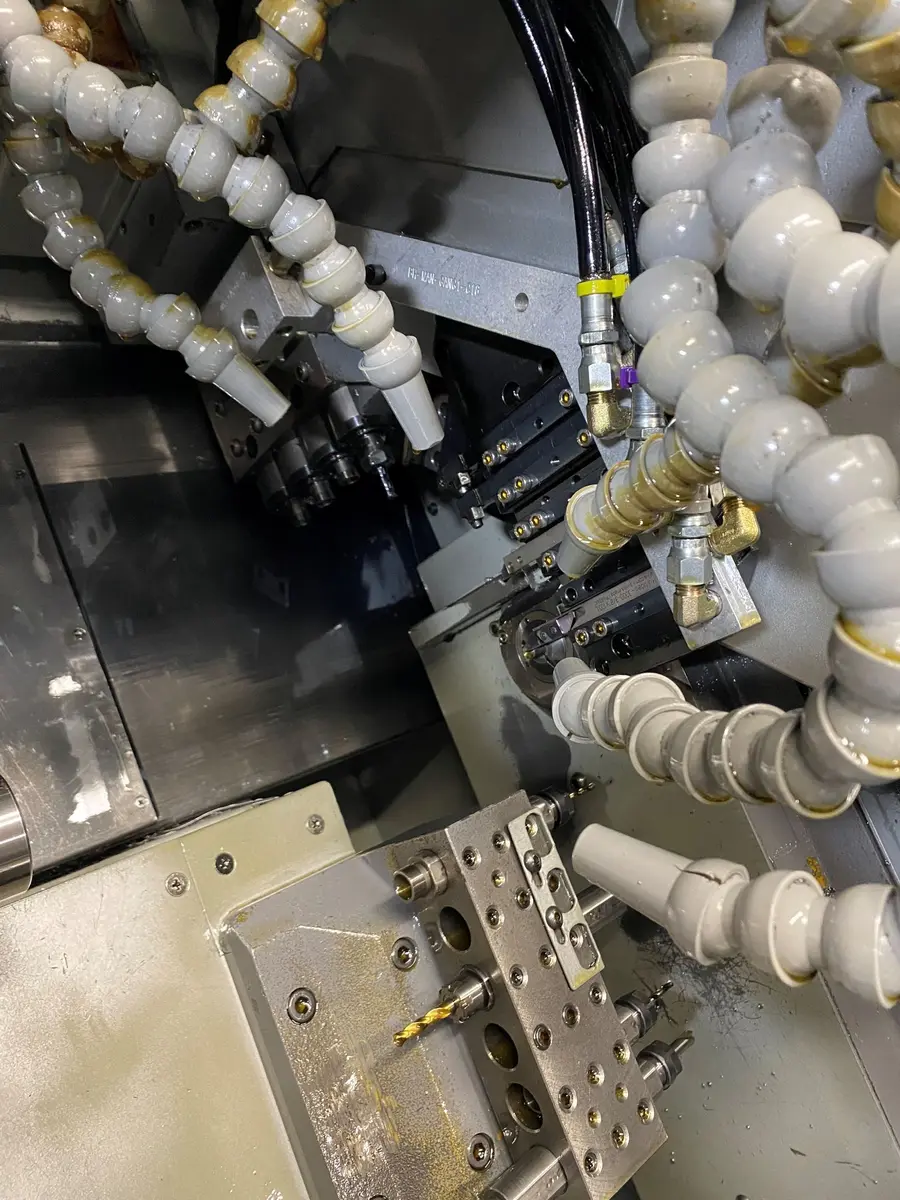

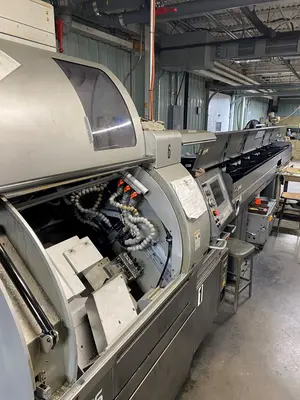

2007 Citizen C16 Type VIIA CNC Swiss Lathe, used, features 0.625" capacity, 7 axes, and speeds up to 10,000 rpm. Ideal for precision machining with main, rotary, and back spindles powered by reliable motors. Includes Citizen CAV 16C magazine-style automatic bar loader for efficient production. Ideal for precision machining tasks.
Equipped With:
Citizen CAV 16C-16 magazine-style automatic bar loader
Specifications:
Capacity 0.625"
# Axis 7
Swiss, Chucker or Convertible? Swiss
Dimensions Approx. 89" x 38" x 67"
Weight Approx. 3,858 LBS.
Max Machining Length 7.87 in
Main spindle speed: 200 - 10,000 rpm
Rotary tool spindle speed: 200 - 8,000 rpm
Back spindle speed: 200 - 10,000 rpm
Main motor: 2hp/3hp
Tool spindle motor: 1hp
Back spindle motor: .5hp/1hp
Coolant motor: .3hp
