| X-Axis | 30" | 762 mm |
| Y-Axis | 16" | 406.4 mm |
| Z-Axis | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 30 | 30 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |

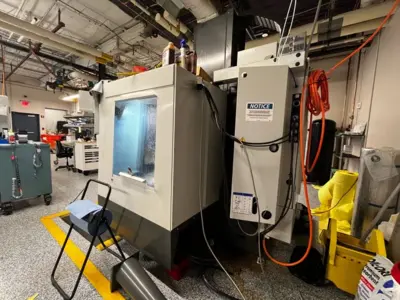

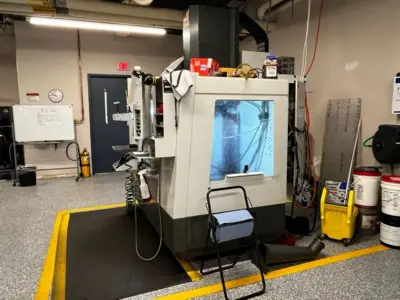

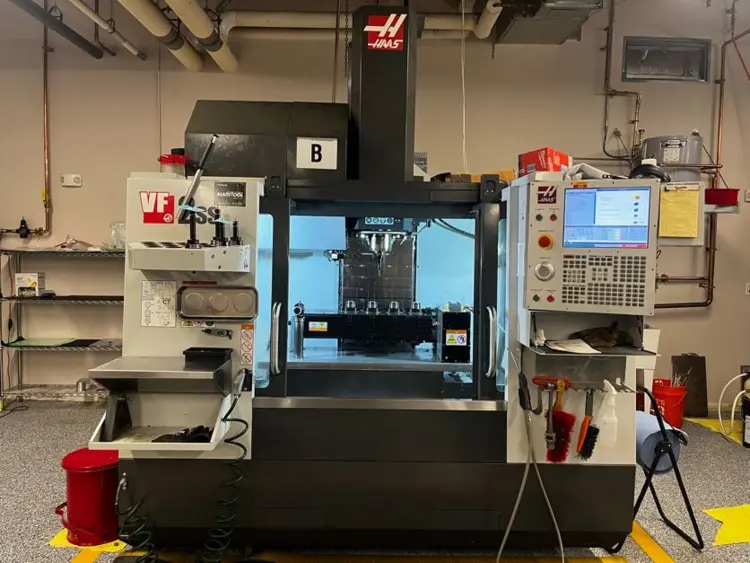

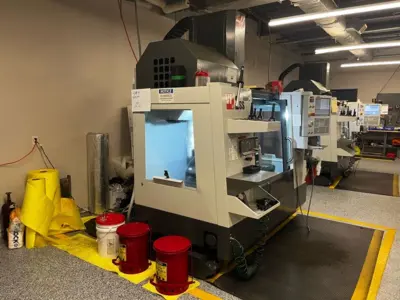

Haas VF-2SS CNC High Speed Vertical Machining Center
New: 03/2019
Specifications:
Travels:
X-Axis: 30"
Y-Axis: 16"
Z-Axis: 20"
Table Size: 36" x 14"
Max Table Weight: 1,500 Lbs
Spindle Motor:
Spindle Speed: 15,000 RPM
Rapid Traverse Rate: 1,400 IPM
Equipped With:
Haas CNC Control
Upgraded 15,000 RPM Spindle
4th and 5th Axis Drives and Wiring
Wireless Intuitive Probing System
Programmable Coolant Nozzle
High Speed Machining

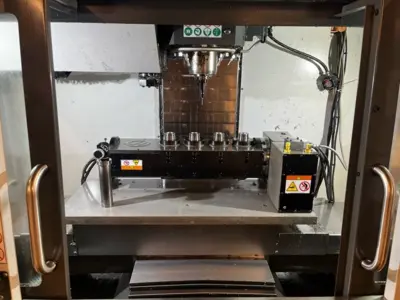

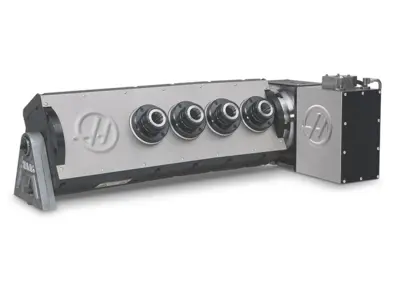

Available: Haas T5C4 5-Axis Rotary Table
Hours:
Power On Time: 30042 Hours
Cycle Start Time: 5725 Hours
Feed Cutting Time: 4479 Hours
Replacement Price: $115,665 (Machine), $165k with Rotary.
This equipment has been sold. Similar equipment available now is shown below.
