| X-Axis | 50" | 1,270 mm |
| Y-Axis | 20" | 508 mm |
| Z-Axis | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 30 | 30 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 52" | 1,320.8 mm |
| # Axis | 5 | 5 |

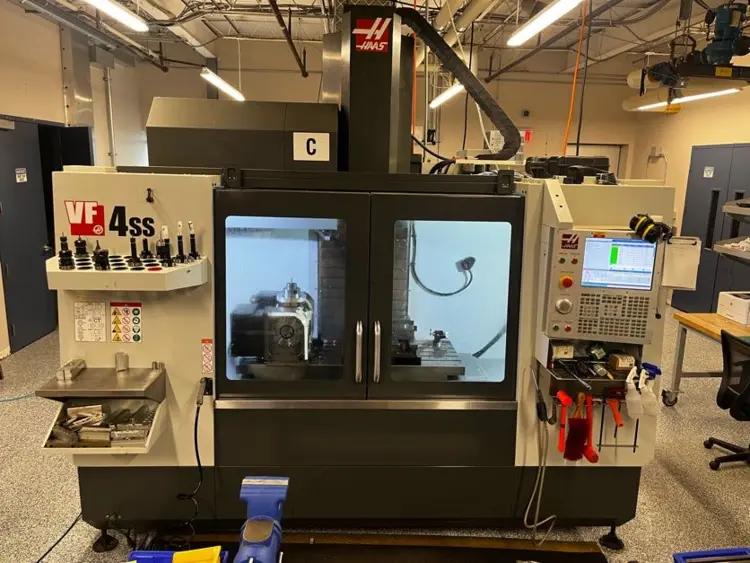

Haas VF-4SS CNC High Speed Vertical Machining Center
New: 03/2019
Specifications:
Travels:
X-Axis: 50"
Y-Axis: 20"
Z-Axis: 25"
Table Size: 52" x 18"
Max Table Weight: 1,750 Lbs
Spindle Motor:
Spindle Speed: 15,000 RPM
Rapid Traverse Rate: 1,400 IPM
Equipped With:
Haas CNC Control
Upgraded 15,000 RPM Spindle
4th and 5th Axis Drives and Wiring
Wireless Intuitive Probing System
Programmable Coolant Nozzle
High Speed Machining
Tool Center Point Control and Dynamic Work Offsets
Custom Rotaries Enabled

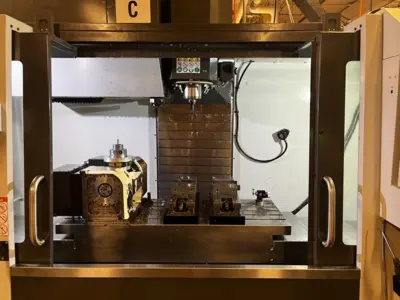

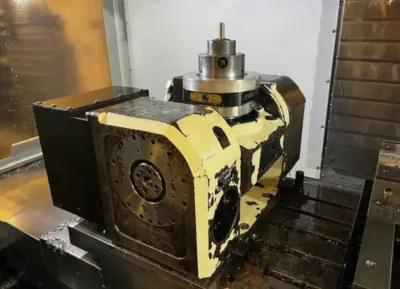

Available: Tsudakoma TBS-16H 5-Axis Rotary Table
Hours:
Power On Time: 24777 Hours
Cycle Start Time: 3853 Hours
Feed Cutting Time: 2933 Hours
Replacement Price: $144,860 (Machine), over $200k with Rotary
This equipment has been sold. Similar equipment available now is shown below.
