2018 MITUTOYO CRYSTA APEX S 7/10/6 | Coordinate Measuring Machines
Have one to sell?
1 available
2018 Mitutoyo Crysta-Apex S 7.10.6 is a high‑accuracy bridge‑type coordinate measuring machine with a 700 x 1000 x 600 mm measuring range, ideal for precision inspection in small to midsize parts. It combines fast motion, sub‑micron resolution, and robust thermal compensation, making it a strong choice for aerospace, medical, and high‑precision job shops.

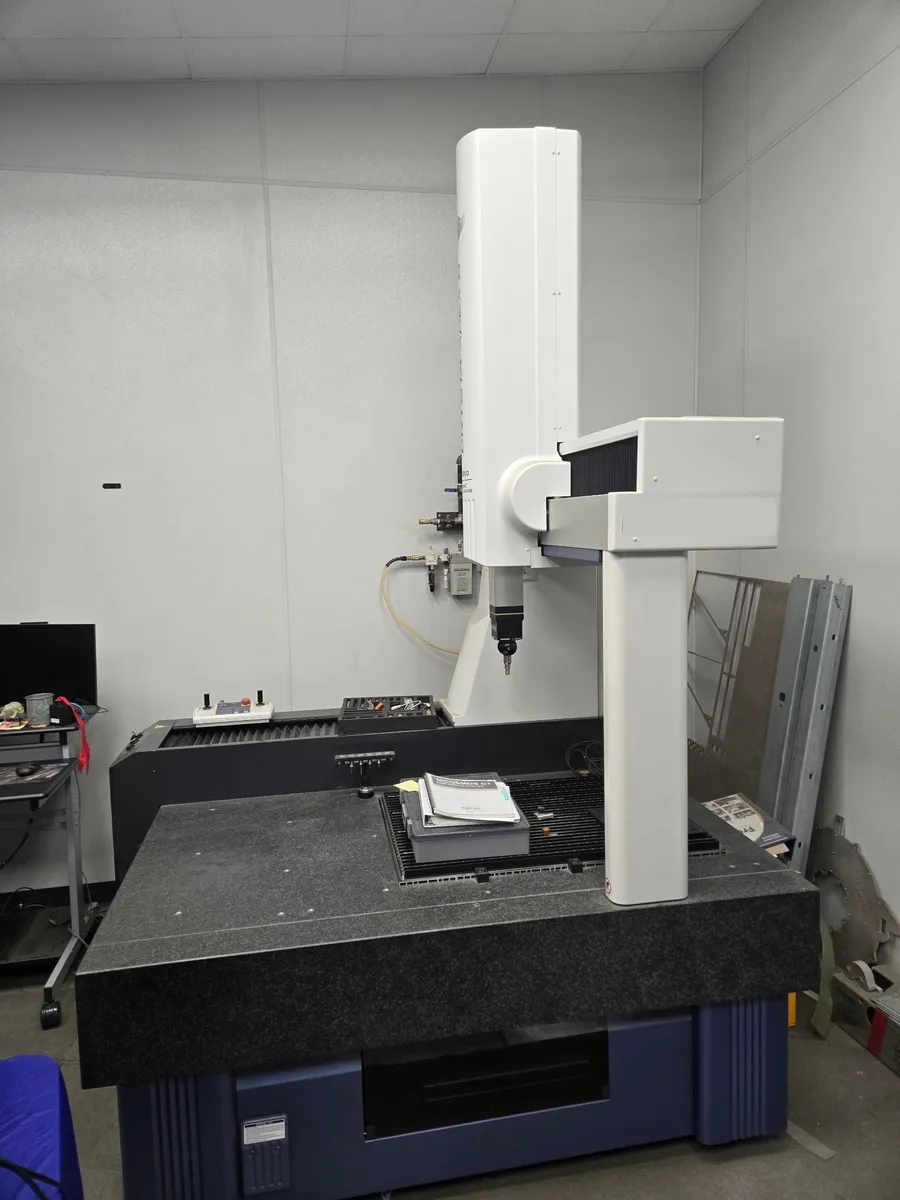

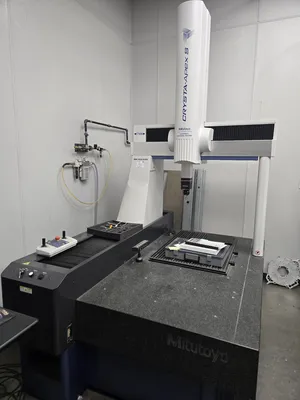

2018 Mitutoyo Crysta Apex S 7.10.6 CMM
New: 2018
MEASURING RANGE:
- X-AXIS: 27.6"
- Y-AXIS: 39.36"
- Z-AXIS: 23.62"
RENISHAW TP20 PROBE

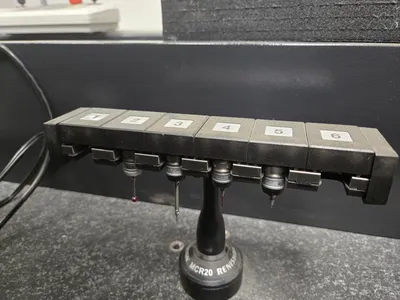

RENISHAW MCR20 MODULE CHANGING RACK
DRIVE SPEED:
- CNC MODE: 0.315 - 11.8 IPS
- MAX. SPEED: 20.43 IPS
- J/S MODE:
-- HIGH SPEED: 0 - 3.15 IPS
-- LOW SPEED: 0 - 0.118 IPS
-- FINE SPEED: 0.002 IPS
MAX. MEASURING SPEED: 0.315 IPS
MAX. DRIVE ACCELERATION:
- EACH AXIS: 52.48 IPS
- MAX. COMBINED: 90.9 IPS
WORK PIECE:
- MAX. HEIGHT: 31.49"
- MAX. WEIGHT: 2,204 LBS
AIR SUPPLY:
- PRESSURE: 58 PSI
- CONSUMPTION: 1.76 CFM
- AIR SOURCE: 3.53 CFM
APPROX. DIMENSIONS: 1470(W) x 65"(D) x 2730(H)
