2015 DMG MORI NLX 2500Y/700
Have one to sell?
Noah Taubman
1 available

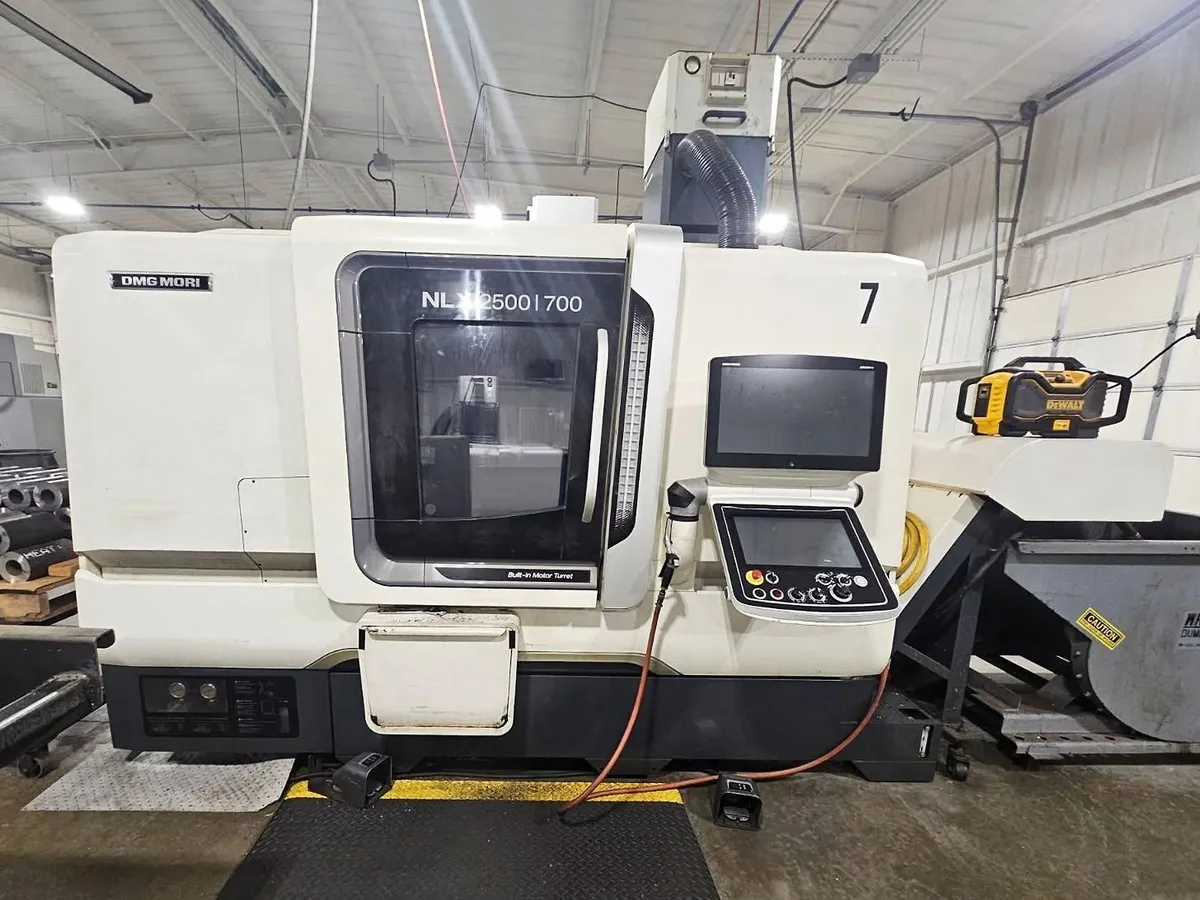

This 2017 DMG MORI SEIKI NLX2500SY is a high‑performance Y‑axis, sub‑spindle CNC lathe designed for complete machining in one setup, maximizing productivity and reducing handling time. Its rigid construction, powerful milling capabilities, and advanced control make it ideal for complex, multi‑axis turning work in production and job‑shop environments.
SPECIFICATIONS:
X Axis Travel: 10.2"
Z Axis Travel: 31.3"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Diameter: 18.1"
Max Turning Length: 27.7"
Max Swing: 23.2"

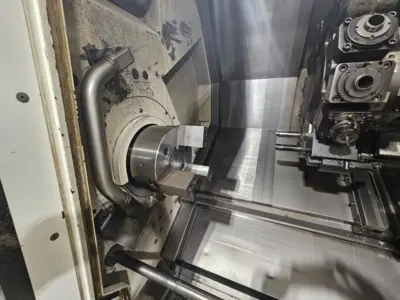

MAIN SPINDLE:
Spindle Speed: 4,000 RPM
Spindle Motor: 25 HP
Main Spindle Speed: 4,000 rpm
Main Spindle Nose: A2-8
Main Spindle Bore: 3.54"
Main Bar Capacity: 3.1"
Main Spindle Motor: 25 hp
Travels (C Axis): 0.001 Deg

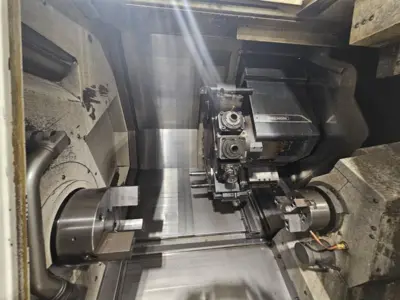

SUB-SPINDLE:
Sub Spindle Speed: 6,000 rpm
Sub Spindle Nose: A2-5
Sub Spindle Motor: 15 hp
Travels (B Axis, Sub-spindle): 28.9"
TURRET:
Turret Type: Block Style
Turret Positions: 12 Stations
Turret Index Time: 0.27 sec
Rotary Tool Spindle Speed: 10,000 rpm
Travels (Y Axis): +/- 2.0"
Rotary Tool Spindle Motor: 7.5 hp
EQUIPPED WITH:
Celos M730UM MAPPS V CNC Control
Live Tooling
Sub Spindle w/ C-Axis
Y-Axis
Parts Catcher
Tool Setter
Chip Conveyor
Dimensions: 174" x 93" x 87"
Weight: 17,000 Lbs.
