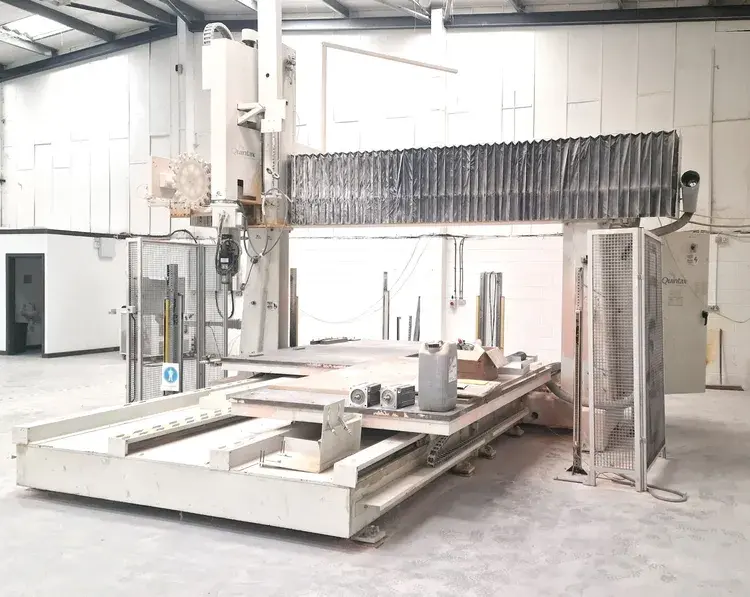

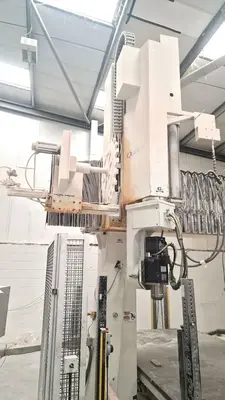

2009 QUINTAX Q5H 10' x 12' 5-Axis CNC Router | Millers, Gantry, CNC

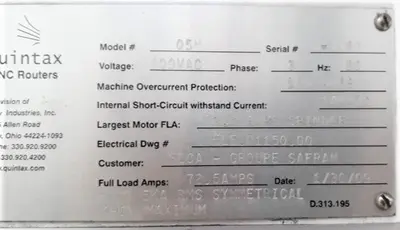

QUINTAX (USA) Q5H 5-AXIS HEAVY DUTY PRECISION CNC ROUTER WITH (2) 6' X 10' TABLES
CNC FAGOR 8070

(2) Tables, each 72" x 120" (1830 x 3040 mm)

TRAVELS:
- X = 4400 mm (longitudinal), 173.2"
- Y = 3800 mm (cross), 149.6"
- Z = 1500 mm (vertical, limitation under the cross rail), 59.1"
- C axis = +/- 360 degrees
- B axis = +/- 120 degrees

SPINDLE AND TOOLING:
- Maximum spindle speed: 21,000 rpm
- Tool interface: HSK63F

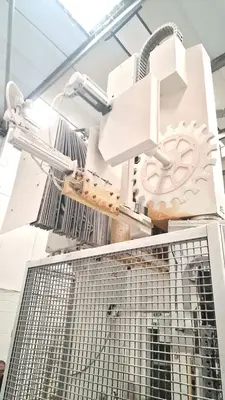

- Toolchanger: 20-position automatic

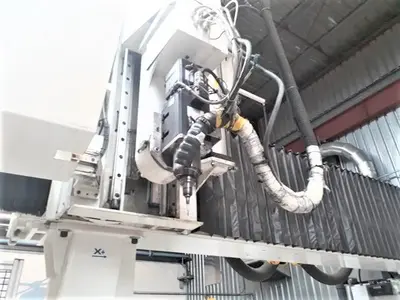

- 30 kW / 40 HP HSK63F tool-change style spindle, liquid cooled, air clamping, including chiller package

MACHINE STRUCTURE:

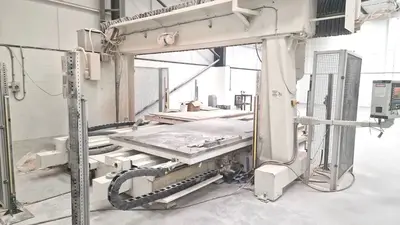

- Double 72" (1.83 m) x 120" (3.04 m) tables with 37 mm steel top plates
- 1.5 m Z-axis height (59.1")
- 63 x 40 mm ball screws and ball nuts
- 45 mm rails and linear bearings
- 12" x 16" tube construction plus polymer composite filled bridge tube supports and base

SYSTEMS AND ACCESSORIES:
- Coolant installation
- Central lube system with low-level switch
- AC variable speed inverter drive for spindle
- Hand-held teach pendant

CNC CONTROL:

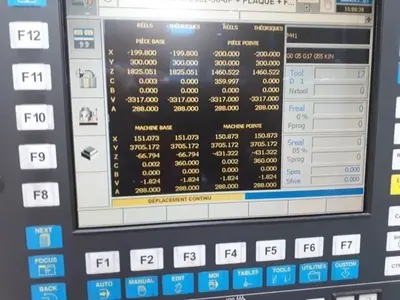

- Fagor 8070 5-axis CNC control with:
- 512 MB RAM
- 40 GB hard drive
- 11" color monitor
- Ethernet port
- Telediagnostics
- CD drive / USB port

DRIVES AND FEEDBACK:

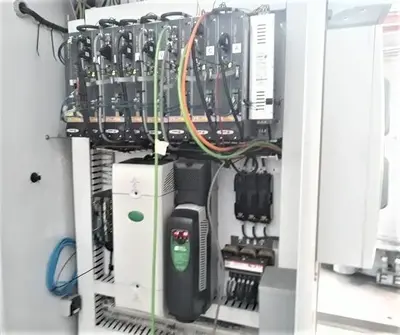

- Fagor AC digital servo package with absolute encoding
- Fagor linear scales on X, Y, U, V axes
- Rotary feedback on B and C axes
- Continuous C axis

DUST AND VACUUM:

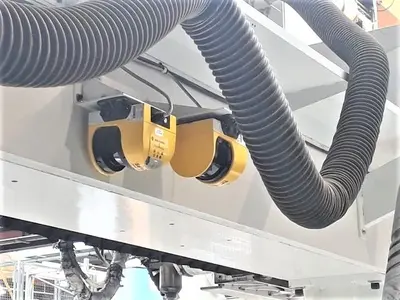

- Dust collection nozzle and hoses for 5-axis
- 15 kW / 20 HP baghouse, rated 170 m3/min at 254 mm water gauge, includes hoses and controls

PROBING AND SOFTWARE:
- Renishaw toolsetting probe
- Renishaw MP-10 optical probe and software
- Catia 5 postprocessor

SAFETY:
- Perimeter light curtain system
