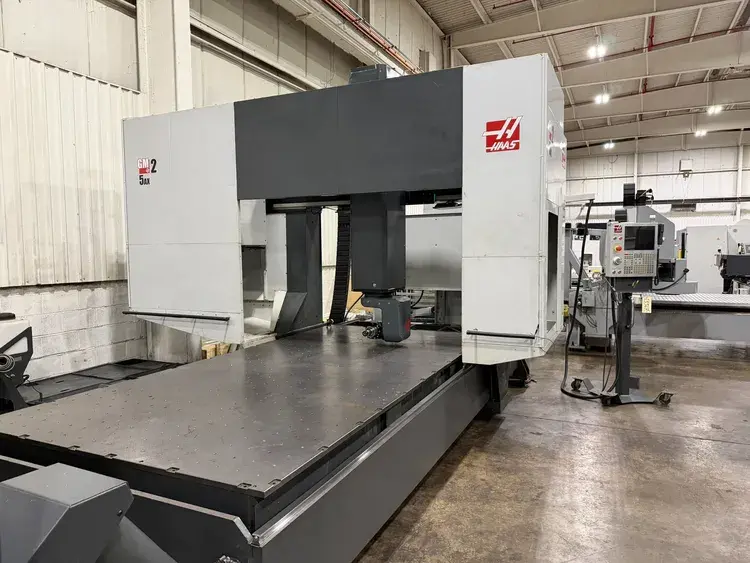

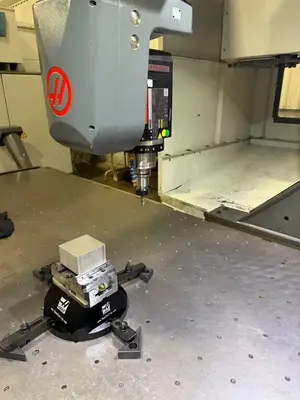

2019 HAAS GM-2-5AX CNC Router, ideal for complex, large-part machining. Equipped with a 5-axis router head, 20,000 rpm spindle, 72"x144" table, 40" Z-axis, and advanced CNC controls. Perfect for composites and aluminum. The machine’s rigid steel construction provides a very stable cutting platform, and a 1" thick aluminum table is standard. A traveling guard protects the operator from chips and coolant, and keeps the workspace clean.
Fully rebuilt by Haas to new spec.
Haas GM-2-5AX 5-Axis Gantry Mill
FEATURES:

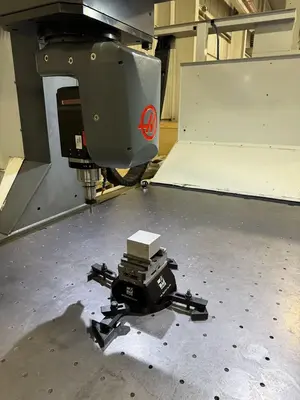

- Dual-axis spindle head provides ±245 degrees of C-axis rotation and ±120 degrees of B-axis tilt

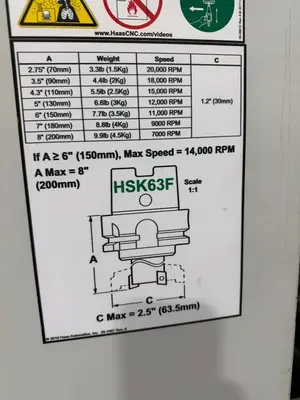

- 20,000 rpm HSK 63F spindle
- Rigid steel construction

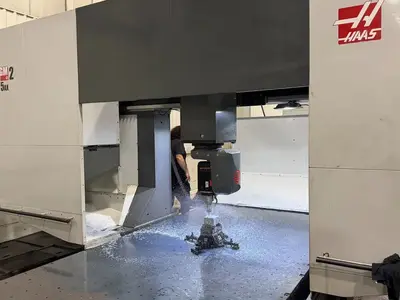

- Traveling guard for chip and coolant containment
- 1" thick aluminum table
APPLICATIONS:
The GM-2-5AX features a 20,000 rpm HSK spindle perfect for:
- Trimming composite structures
- Finish-profiling 3D surfaces
- Hole making
MATERIAL SUITABILITY:
- Composites
- Aluminum
- Plastics
- Ren-Board
- Other non-ferrous materials
SPINDLE CHARACTERISTICS:
- 20,000 rpm allows very high surface footage for great finishes and small tools
- Integral spindle design allows fast acceleration and deceleration
- Liquid-cooled spindle

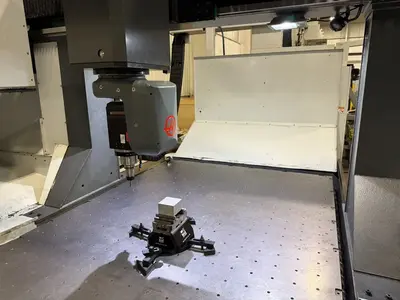

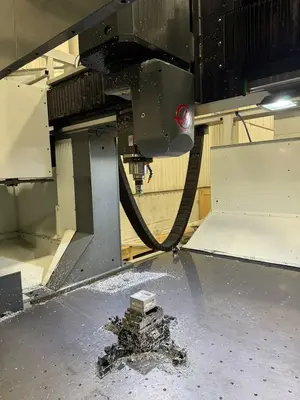

5-AXIS CONFIGURATION:
The GM-2-5AX is a full 5-axis “gimbal head” machine:
- Both rotary axes are mounted on the Z-axis ram
- Spindle/cutting tool rotates while the workpiece is stationary on the table
- Cutting tool can point at any angle within rotary travel limits
- (More details available on the Haas website)
TRAVELS (SAE / METRIC):
- X axis: 145.00 in / 3683 mm
- Y axis: 87.50 in / 2223 mm
- Z axis: 39.30 in / 998 mm
- Spindle nose to table (max): 37.0 in / 940 mm
- Spindle nos
