2013 YCM DCV6030 BF | Machining Centers, Gantry (incld. Bridge & Double Column)

YCM DCV6030 BF CNC Vertical Bridge Mill
New 2012 INSTALLED IN 2013
WITH RIGHT ANGLE HEAD ATTACHMENT

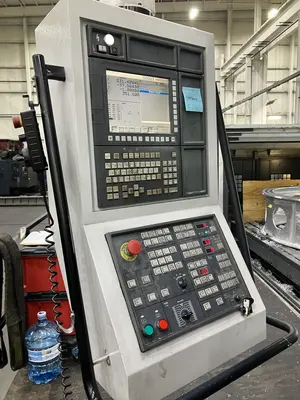

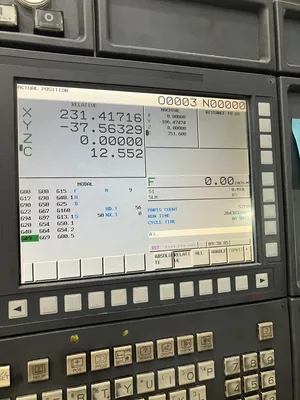

CONTROL: FANUC 200FB (Fanuc 31i Version)
X-AXIS LONGITUDINAL TABLE TRAVEL..... 220"
Y-AXIS CROSS HEAD TRAVEL.............. 120"

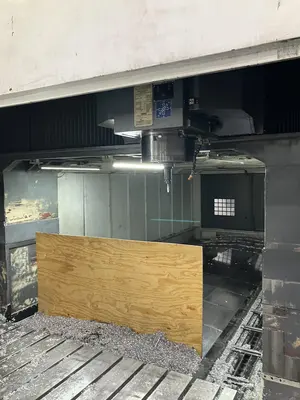

Z-AXIS RAM VERTICAL TRAVEL............ 40"

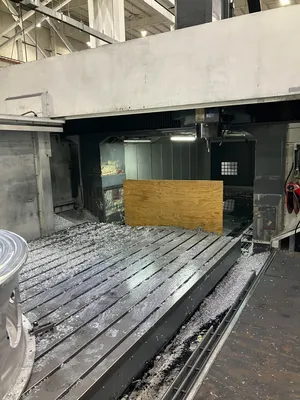

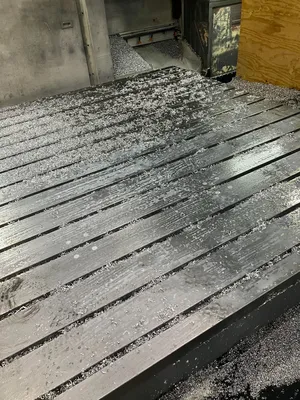

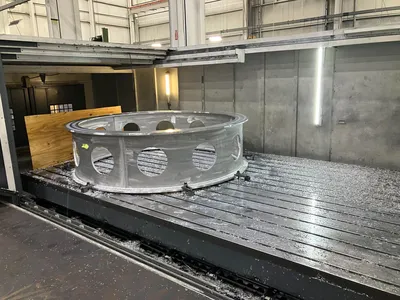

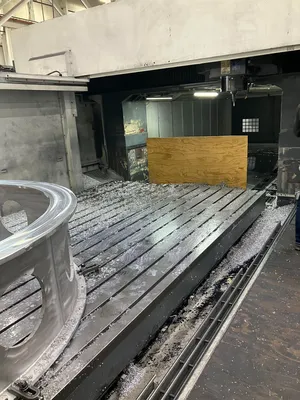

TABLE SIZE............................ 236.22" X 118.11"
DISTANCE BETWEEN COLUMNS.............. 122"
SPINDLE NOSE TO TABLE, MAXIMUM........ 50.63"
SPINDLE NOSE TO TABLE, MINIMUM ....... 20.63"
SPINDLE SPEEDS........................ 6000 RPM (2) SPEED GEARED
SPINDLE TAPER......................... CAT #50
FEED RATES ........................... X,Y,Z AXES .04-394 IPM
TABLE LOAD CAPACITY................... 55,110 LBS
MACHINE WEIGHT........................ 153,000 LBS

EQUIPPED WITH:

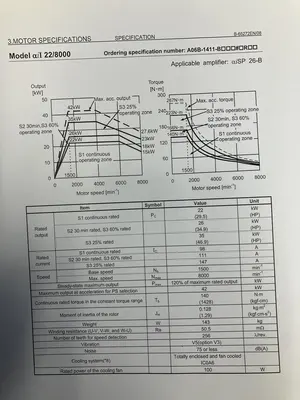

HIGH POWER HIGH TORQUE SPINDLE
TOP COVER ENCLOSURE
DATA SERVER 2GB
HIGH SPEED SKIP FUNCTION
TRANSFORMER
250 MM RAISED COLUMN
HEIDENHAIN SCALES X,Y,Z

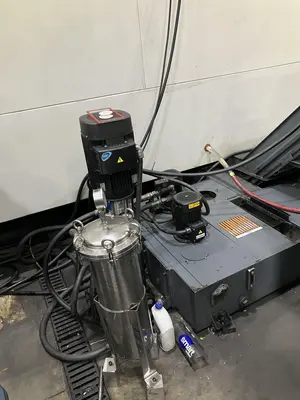

300 PSI COOLANT THROUGH SPINDLE WITH PUMP CANNISTER FILTER
SPINDLE LOAD COMPENSATION
60 POSITION AUTOMATIC TOOL CHANGER

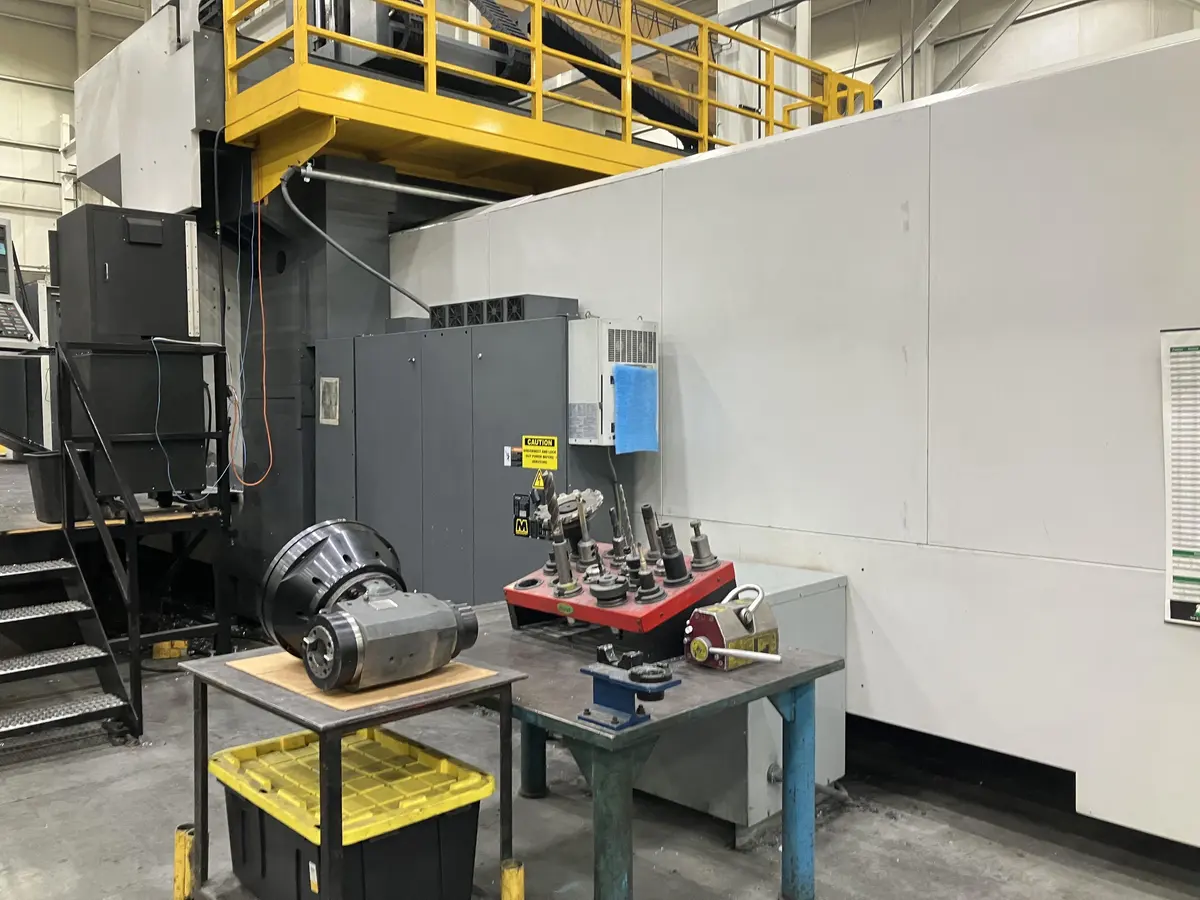

90 DEGREE HEAD (5) FACE TYPE AICC HEAD CHANGER
AUTO HEAD CHANGER AICC
MARPOSS GAUGE TOOL LASER MEASUREMENT
RENISHAW TOUCH PROBE

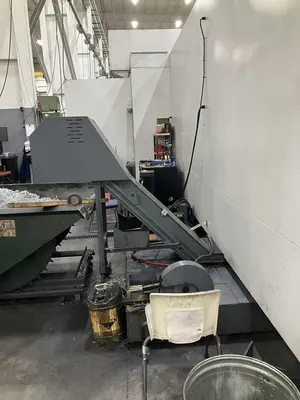

CHIP CONVEYOR
COOLANT SYSTEM

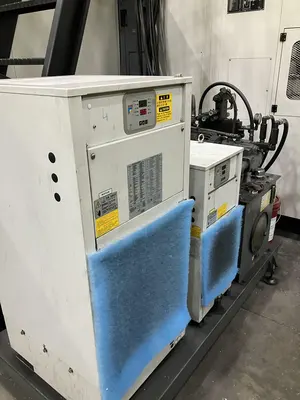

SPINDLE CHILLER
TELESCOPING STEEL WAY COVERS
