| X-Axis | 50" | 1,270 mm |
| Y-Axis | 20" | 508 mm |
| Z-Axis | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 41 | 41 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 52" | 1,320.8 mm |

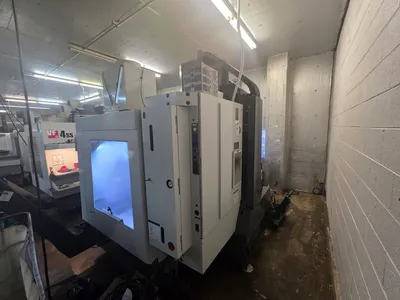

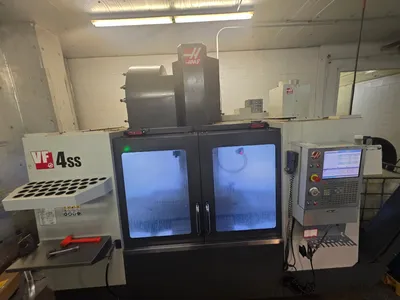

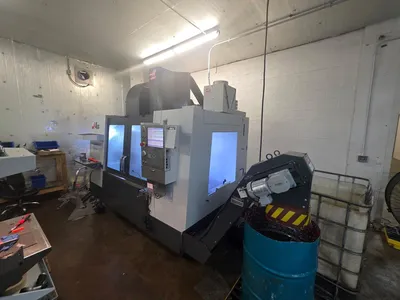

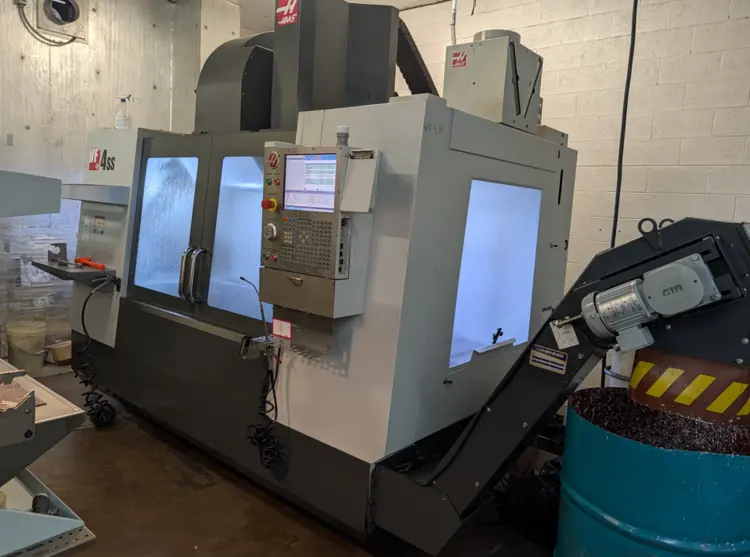

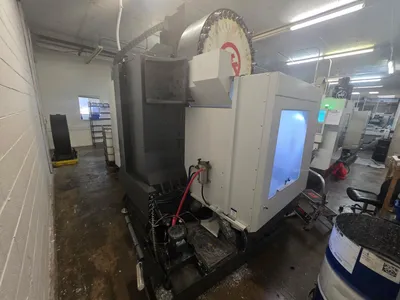

Haas VF-4SS CNC Vertical Machining Center
New: 2016
Specifications:
Travels:
X-Axis: 50"
Y-Axis: 20"
Z-Axis: 25"
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: CAT 40
Tool Changer: 40+1
Equipped With:
Haas CNC Control
4th Axis Drive
Automatic Air Gun
Enclosure Exhaust System
Ethernet/LAN
High Speed Machining
Multi-Auger Chip Conveyor System
Programmable Coolant Nozzle
Programmable Coolant
Remote Jog Handle
Rigid Tapping
40+1 Automatic Tool Changer
Wireless Intuitive Probing System
Color Monitor
1GB Standard Program Memory
300 PSI Through Spindle Coolant
This equipment is currently unavailable. Similar equipment available now is shown below.
