2011 HAAS VF-8/40 | Machining Centers, Vertical

Have one to sell?
Vamsi Adusumilli
310-909-2020
vamsi@machnet.com
1 available
Have one to sell?

Overview

Type:
Machining Centers, Vertical
Manufacturer:
HAAS
Model:
VF-8/40
Year:
2011
Stock #:
34037
Status:
For Sale

Description

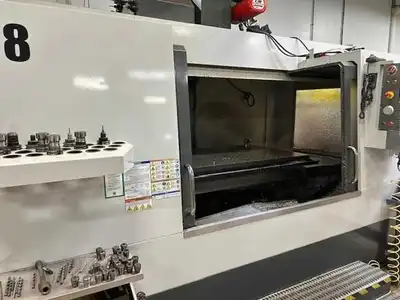

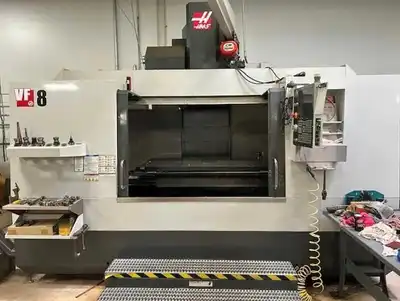

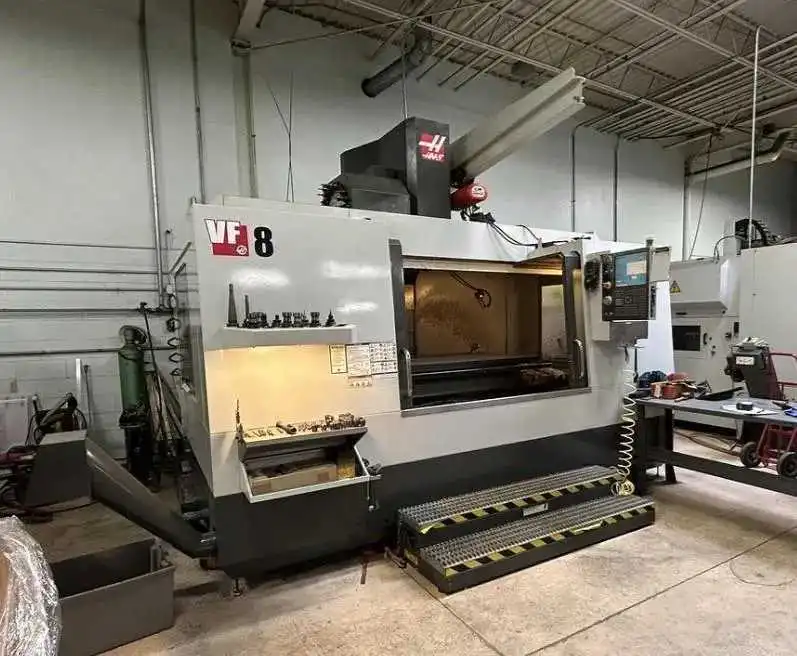

2011 Haas VF-8/40
64" x 40" x 30", CAT40, 30 HP, 30 ATC

X-Axis64"1,625.6 mm
Y-Axis40"1,016 mm
Z-Axis30"762 mm
Power30 hp22.4 kW
RPM8,100 RPM8,100 RPM
# ATC2424
TaperCT or BT 40CT or BT 40
Table-W36"914.4 mm
Table-L64"1,625.6 mm
# Axis33

Haas VF-8 CNC Vertical Machining Center
New: 2011

Specifications:
# Axis 3
Table-L 64"
Table-W 36"
Max Table Load Capacity 4,000 lb
X-Axis (Longitudinal Travel) 64"
Y-Axis (Cross Travel) 40"
Z-Axis (Vertical Travel) 30"
Tabletop to Spindle Nose 4" - 34"
Feed Rates (X, Y, & Z Axis) 600 in/min.
Rapid Traverse Rate 600 in/min.
Spindle Power 30 hp
Max Spindle Speed 10,000 RPM
Spindle Taper CAT 40

Equipped With:
Haas CNC Control
Rigid Tapping

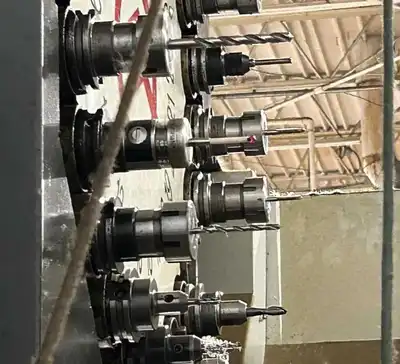

24+1 Tool Changer
10K RPM Spindle
Wireless Intuitive Probing System

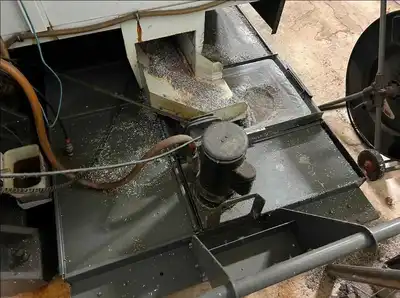

Chip Auger
