1999 TOSHIBA BTD-200QF | Boring Mills, Horizontal, Table Type
Have one to sell?
Gene Taubman
1 available
1999 Toshiba BTD-200QF Table Type Horizontal Boring Mill
7.9" Spindle, 39.4" x 39.4" x 27.6" Travels, CAT 50, 3000 RPM, Pallet Changer, Tosnuc 888, Probing
Toshiba BTD-200QF Table Type Horizontal Boring Mill with Pallet Changer
New: 1999
Specifications:
Spindle Diameter: 7.87"
Spindle Travel: 15.7"
Spindle Taper: CAT 50
Spindle Speed: 3000 RPM
Travels:
X-Axis: 39.4"
Y-Axis: 39.4"
Z-Axis: 27.6"
W-Axis: 15.7"
Spindle Motor: 20 HP
Rotary Table Size: 39.4" x 39.4"
Weight Capacity: 6000 Lbs
Table Indexing Angle: 0.001 degrees
Equipped With:
40 Tool Changer
(2) Pallets

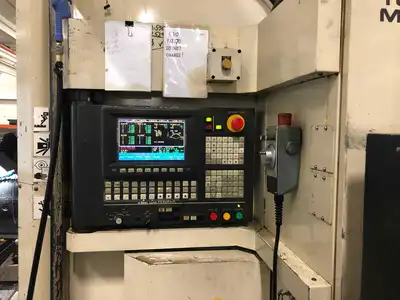

Tosnuc 888 CNC Control
Marposs Probing System
Coolant Thru Spindle
1999 Toshiba BTD-200QF Table Type Horizontal Boring Mill
7.9" Spindle, 39.4" x 39.4" x 27.6" Travels, CAT 50, 3000 RPM, Pallet Changer, Tosnuc 888, Probing
Imperial
| Spindle Size | 4.3" |
| X-Horiz Tvl of Table | 39.4" |
| Y-Vert Tvl of Head | 39.4" |
| Power | 20 hp |
| RPM | 1,600 RPM |
| Table-W | 39.4" |
| Table-L | 39.4" |
| Spindle Tvl. | 15.7" |
Toshiba BTD-200QF Table Type Horizontal Boring Mill with Pallet Changer
New: 1999
Specifications:
Spindle Diameter: 7.87"
Spindle Travel: 15.7"
Spindle Taper: CAT 50
Spindle Speed: 3000 RPM
Travels:
X-Axis: 39.4"
Y-Axis: 39.4"
Z-Axis: 27.6"
W-Axis: 15.7"
Spindle Motor: 20 HP
Rotary Table Size: 39.4" x 39.4"
Weight Capacity: 6000 Lbs
Table Indexing Angle: 0.001 degrees
Equipped With:
40 Tool Changer
(2) Pallets
Tosnuc 888 CNC Control
Marposs Probing System
Coolant Thru Spindle
