2021 HAAS DS-30Y

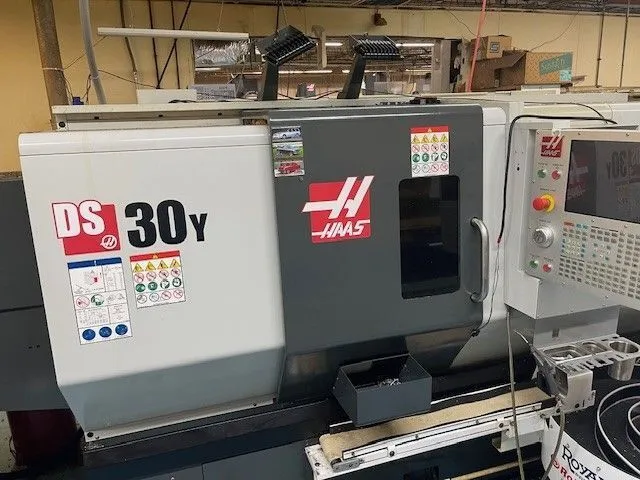

Haas DS-30Y CNC Dual Spindle Lathe
New: 2021

Specifications:
Travels:
X-Axis: 12.5"
Z-Axis: 23.0"
Sing Over Front: 31.8"
Swing Over Cross: 20.8"
Swing Over 2nd Spindle: 21.8"
Main Spindle:
Chuck Size: 10"
Spindle Nose: A2-6
Bar Capacity: 3.0"
Spindle Motor: 30 HP
Spindle Speed: 4500 RPM

Sub-spindle:
Spindle Speed: 6000 RPM
Spindle Motor: 20 HP
Spindle Nose: A2-5
Bar Capacity: 2.0"
Chuck Size: 8.3"

Equipped With:
Haas CNC Control
6000 RPM Speed Upgrade for Live Tooling
4000 Live Tooling w/ C-Axis, 24 Station BMT65 Turret
High Pressure Coolant, 1K
Automatic Tool Presetter
10" & 8.3" Hydraulic Chucks
55-Gallon Coolant Tank
Early Power Failure Detection
Ethernet
HaasConnect
M-Code
Rigid Tapping
Spindle Orientation
Driven Toolholder Kit for BMT Turret (1 each 90-Degree, 1 each straight driven)
Standard Inch Subspindle Toolholder Kit
CNC Control Cabinet Cooler
Belt-Type Chip Conveyor
High Intensity Lighting
Chuck Air Blast
Parts Catcher
Macros
Visual Part Programming System
Chip Tray Filter Kit

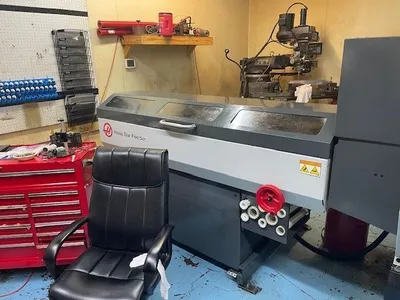

Haas Bar Feeder V2

Replacement Cost: $200k

Optional Equipment:

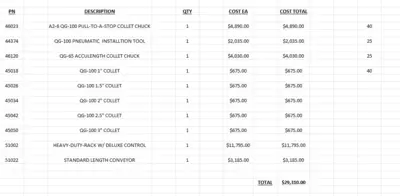

Royal Workholding Including Rota-Rack - $30k Replacement

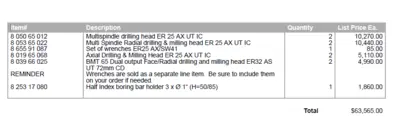

Platimum Tooling - $63k replacement
