| X | 29.53" | 750.06 mm |
| Y | 19.68" | 499.87 mm |
| Z | 15.75" | 400.05 mm |
| Auto Threading (Yes/No) | Yes | Yes |
| Submerged (Yes/No) | Yes | Yes |

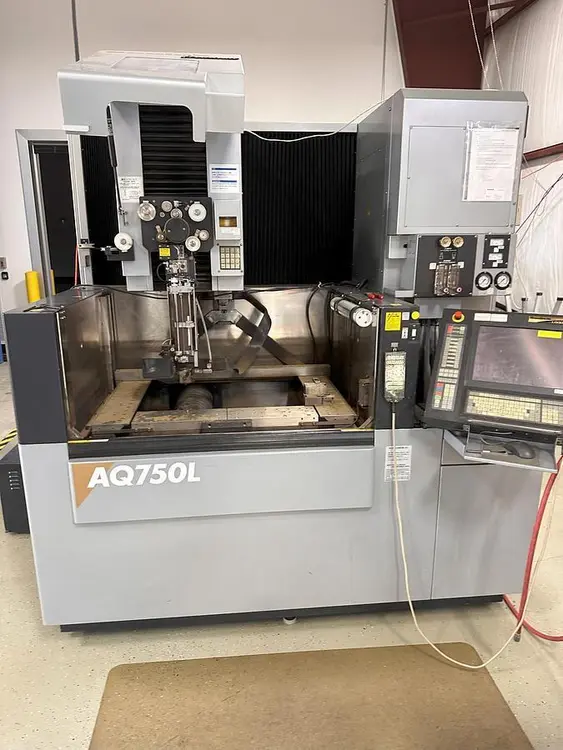

Sodick AQ750L/LQ33W Wire EDM
New:2005
GENERAL SPECIFICATIONS:
X - Axis Travel: 29.53”
Y - Axis Travel: 19.68”
Z - Axis Travel: 15.75”
U - V Axis Travel: 30.31” X 20.47”
Wire Diameter Range: 0.006” ~ 0.012”
Work Tank Dimensions: 49.7” X 38.31”
Max Workpiece Weight: 3,307 Lbs
Floor to Table Distance: 39.37”
Machine Dimensions: 82.7” X 110.25” X 92.52”
Machine Weight: 11,684 Lbs
Equipped with:

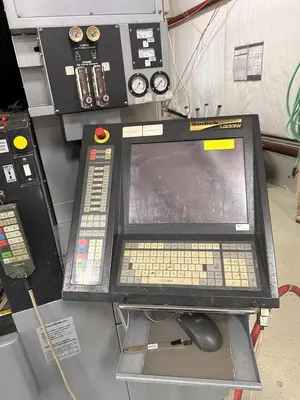

LQ33W CNC Control
Linear Motors (X, Y, U, V Axis)
Premium Circuit

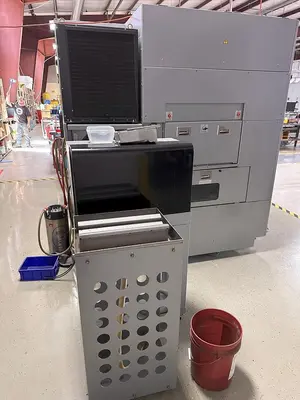

Complete Dielectric Filtration System
Submersible Flushing
AWT and Wire Chopper
