1998 Toshiba BTD-110H.R16 | Boring Mills, Horizontal, Table Type
Have one to sell?
Gene Taubman
1 available

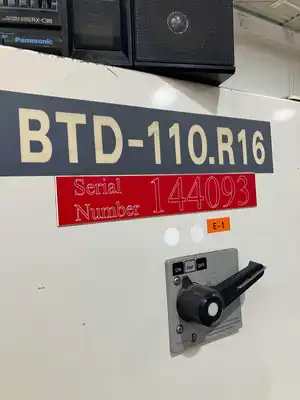

1998 Toshiba BTD-110 R16
55" x 63" Table, CAT 50, 3K RPM, Tosnoc 888, Chip Conveyor & More

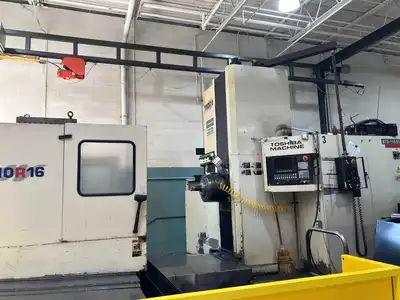

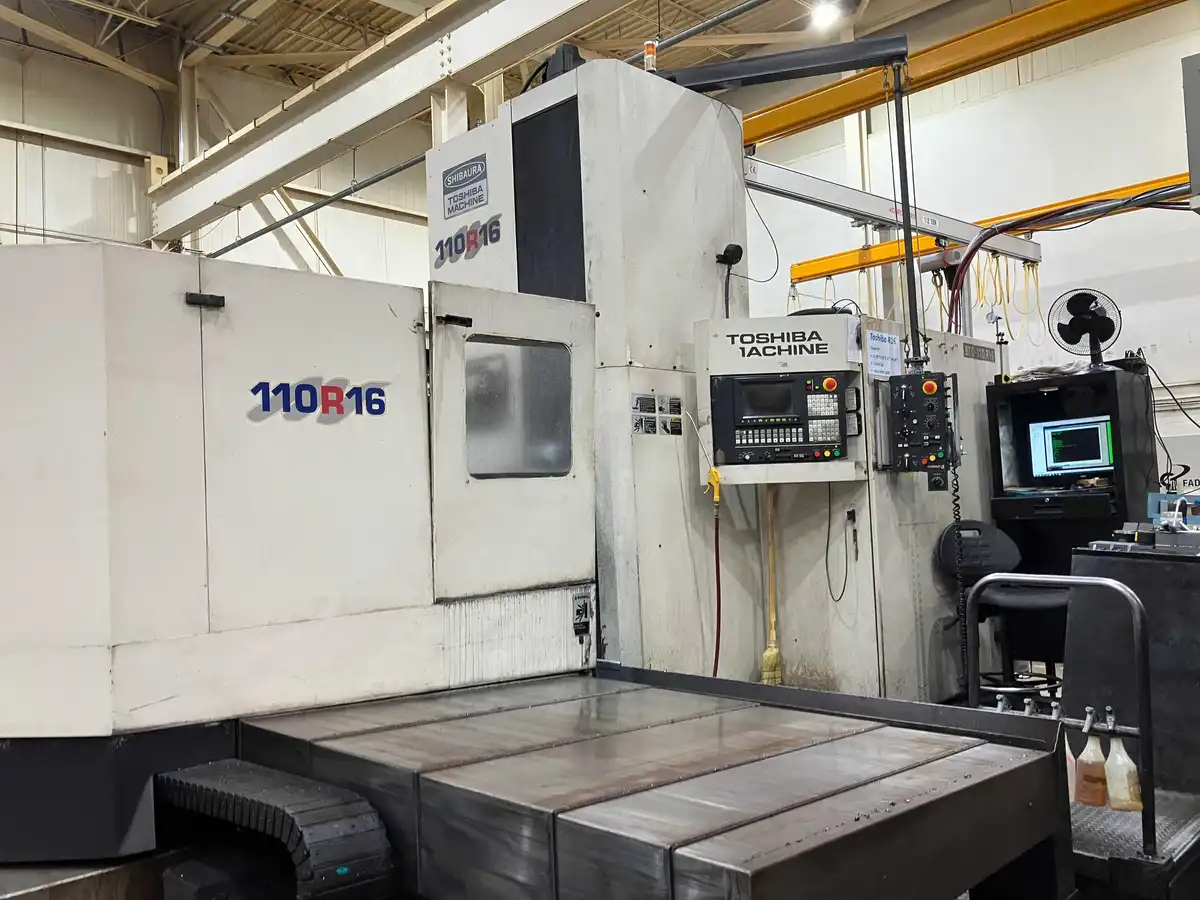

Toshiba BTD 110 R16 4.3" CNC 4-Axis Horizontal Table Type Boring Mill
New: 1998
Specifications:

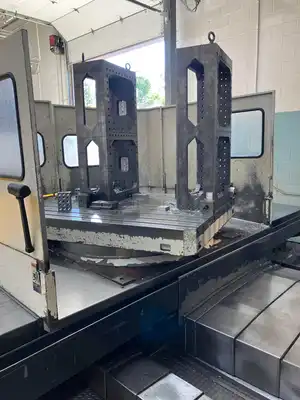

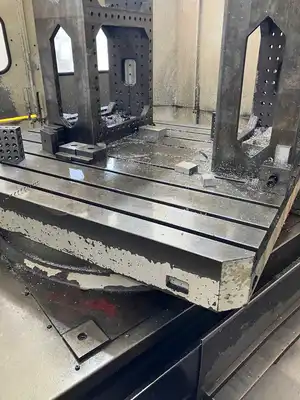

Table Size 55.1" x 63"
Table Load Capacity 20,000 Lbs.

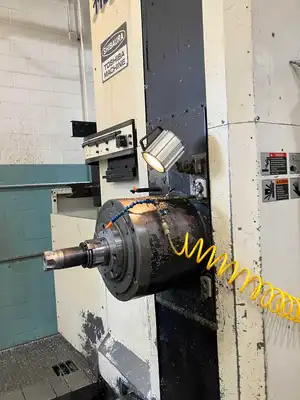

Spindle Diameter 4.3"
Spindle Taper CAT #50
Spindle Speed 3000 RPM
Main Motor 40/30 HP AC
X - Axis Travel 78.7"
Y - Axis Travel 59.1"
Z - Axis Travel 57.1"
W - Axis Travel 19.7"
B - Axis Travel Contouring .001 (360,000)
Cutting Feed Rate .04- 393 IPM
Rapid Feed Rate 472.4 IPM

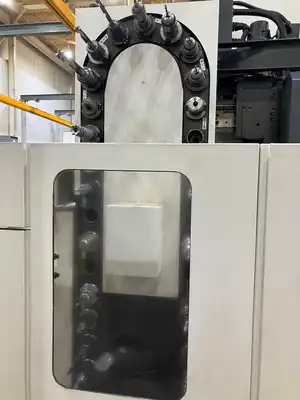

Tool Changer Capacity 38 ATC
Max Tool Dia. 4.9" / 9.4"
Max Tool Length 15.75"
Max.tool Weight 55 LBS.
Machine Weight 66,800 LBS
Equipped With:

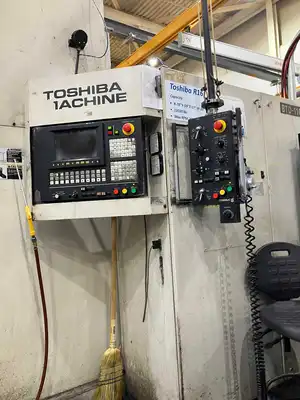

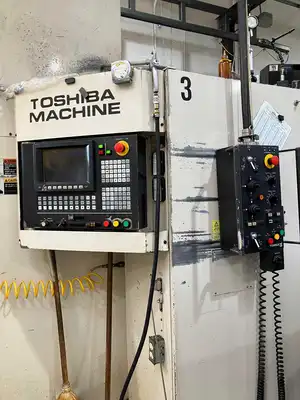

TOSNUC 888 CNC COntrol
Chip Conveyor
Coolant Thru Spindle
Manuals
Operators Platform
Shape Option
Table Enclosures
1998 Toshiba BTD-110 R16
55" x 63" Table, CAT 50, 3K RPM, Tosnoc 888, Chip Conveyor & More
Imperial
| Spindle Size | 4.3" |
| X-Horiz Tvl of Table | 78.7" |
| Y-Vert Tvl of Head | 59.1" |
| RPM | 3,000 RPM |
| Table-W | 55.1" |
| Table-L | 63" |
| Spindle Tvl. | 57.1" |
Toshiba BTD 110 R16 4.3" CNC 4-Axis Horizontal Table Type Boring Mill
New: 1998
Specifications:
Table Size 55.1" x 63"
Table Load Capacity 20,000 Lbs.
Spindle Diameter 4.3"
Spindle Taper CAT #50
Spindle Speed 3000 RPM
Main Motor 40/30 HP AC
X - Axis Travel 78.7"
Y - Axis Travel 59.1"
Z - Axis Travel 57.1"
W - Axis Travel 19.7"
B - Axis Travel Contouring .001 (360,000)
Cutting Feed Rate .04- 393 IPM
Rapid Feed Rate 472.4 IPM
Tool Changer Capacity 38 ATC
Max Tool Dia. 4.9" / 9.4"
Max Tool Length 15.75"
Max.tool Weight 55 LBS.
Machine Weight 66,800 LBS
Equipped With:
TOSNUC 888 CNC COntrol
Chip Conveyor
Coolant Thru Spindle
Manuals
Operators Platform
Shape Option
Table Enclosures
