2024 HAAS VF-4SS | Machining Centers, Vertical

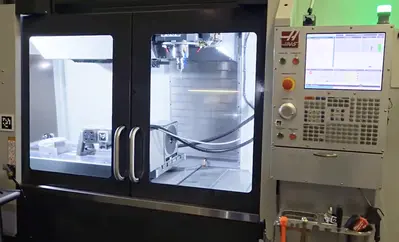

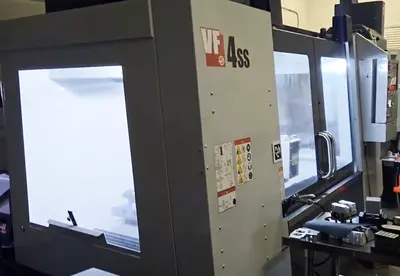

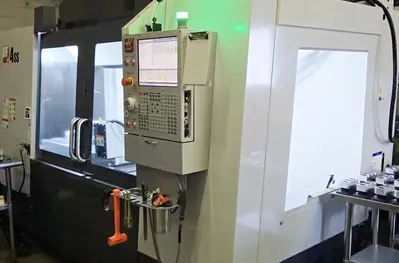

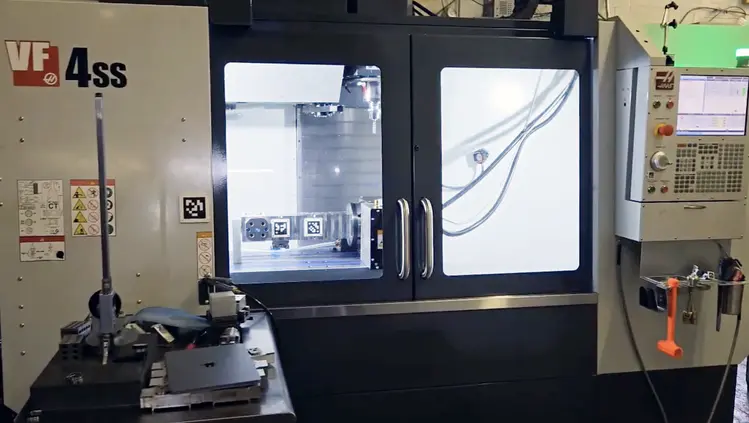

Haas VF-4SS CNC Vertical Machining Center with 4th Axis
New: 2024

Specifications:
Number of Pallets: 2
Pallet Size: 52" x 19.5"
Travels:
X-Axis: 50"
Y-Axis: 20"
Z-Axis: 25"
Rapid Traverse: 1400 IPM
Cutting Feed Rate: 833
Spindle Taper: CAT 40
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Tool Capacity: 30+1 ATC
Max Tool Diameter: 5"
Tool Change Time: 1.8 seconds
Chip-to-Chip Time: 2.4 seconds
Spindle Nose-Table: 4.2" - 29.2"
Max Tool Length: 13"
Max Tool Weight: 12 lbs
Max Table Load: 1,750 Lbs

Equipped With:
Haas CNC Control
300 PSI Coolant Thru Spindle
Wireless Intuitive Probing System
DWO
Automatic Coolant Refill
Programmable Air
Auxiliary Coolant Filter System
Oil Skimmer
Auto Door
Programmable Coolant
Chip Auger
1GB Standard Program Memory
HaasConnect: Remote Monitoring
Media Display M-Code; M130
Safe Run
Power Surge Protection
Control Touch Screen
WiFi Connection
Brake Booster
Color Monitor; Early Power Failure Detection; High Speed Machining; Rigid Tapping; Ethernet / LAN
220 Electrical
