2003 OKUMA CAPTAIN L470M | Lathes, Bar, CNC

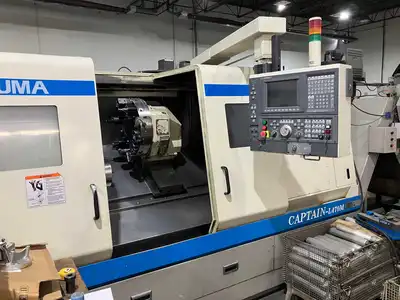

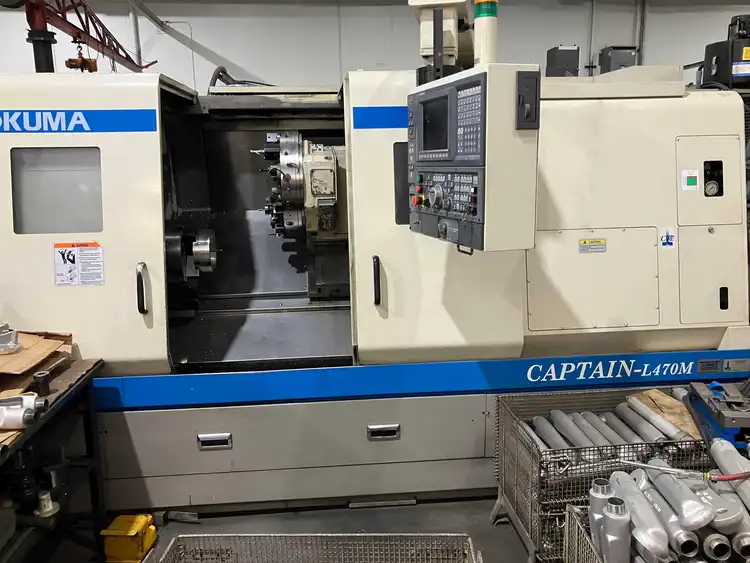

Okuma Captain L 470M CNC Turning Center W/ Milling And Tailstock
New 2003

Specifications:
Swing Over Bed: 24.41"
Swing Over Saddle: 16.54"
Max. Turning Length: 49.2"
Spindle Nose: A2-11"
Bore Diameter: 4.33"
Range Of Spindle Speed: 15-3000 RPM
Longitudinal Travel (Z-Axis): 51.57"
Cross-Slide Travel(X-Axis): 11.81"
Rapid Traverse Speeds:
Z-Axis: 984 IPM
X-Axis: 787 IPM
Type And No Of Tool Stations: Vert 12
C-Axis: .001
Rotary Tool Spindle Speed: 45-3000
Rotary Tool Horse Power: 7.5 HP
Main Spindle Drive Motor: 30 HP
Diameter Of Quill: 3.54"
Quill Stroke: 4.72"
Quill Center: MT #5
Weight: 14,800 Lbs.

Equipped With:

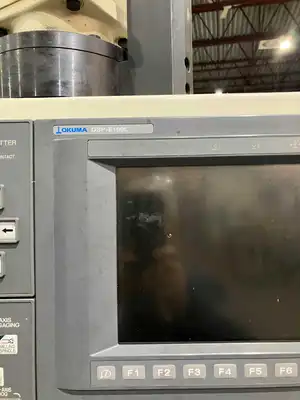

OSP E100l CNC Control
One Touch IGF
Tape Data In/Out
320M Memory
Touch Setter
Hi-G Control

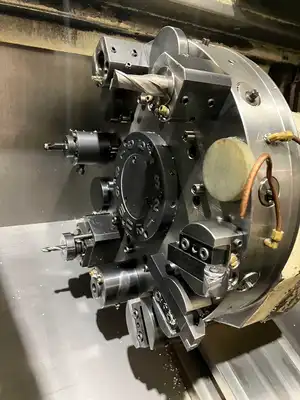

NC Turret
Plane Conversion
Turret Position Comp.
Tool Life Mgmt
Profile Generation
Synchro Tapping
Heavy Tooling
Tool Wear Comp.
Nc Torque Limit
I/M Switch
Multiple Machine
Lap-4
Nose-R 2B
User Task II
T/M Axis Switch
Exp. Auto Chamfer
Mac Man
Programming Help
Servo Link NC
Servo Link Spindle
3D Animation
Load Monitor
Center Work

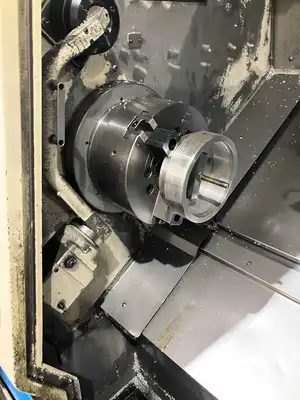

12" 3-Jaw Hydraulic Chuck
Chuck Grsp Comf
Simple Tow-Along Tailstock
M-Axis Orient.
Tool Presetter
Live Heads
Sync Tap On Mill Heads
All Available Manuals
All Available Tool Holders
