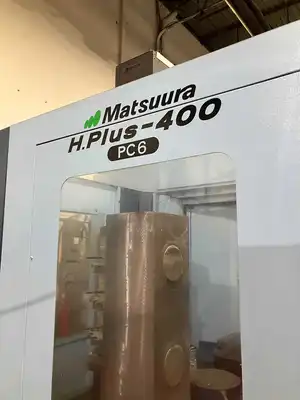

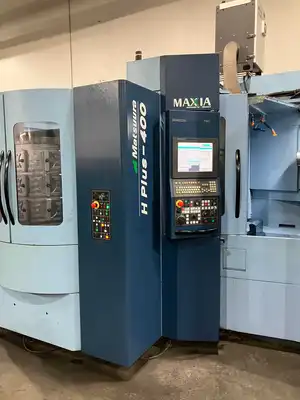

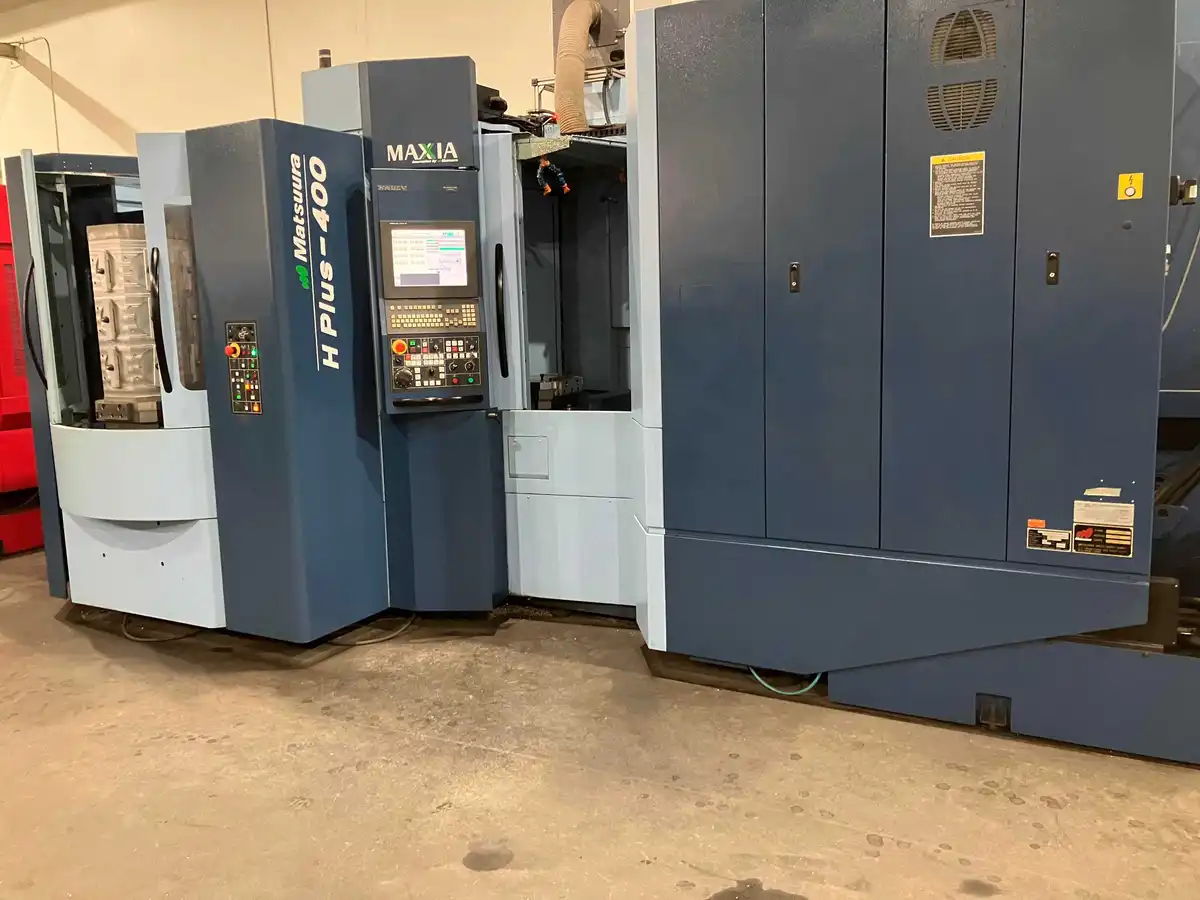

2016 MATSUURA H-PLUS 400 6PC | Machining Centers, Horizontal

Matsuura H-Plus 400 PC6 (6) 400mm Pallet Horizontal Machining Center
New: 2015, Installed in 2016

Specifications:
Pallet Size: 16" x 16" (6) Pallets
Travels:
X-Axis: 22"
Y-Axis: 22"
Z-Axis: 22"
Spindle Speed: 20,000 RPM
Spindle Motor: 40 HP
Spindle Taper: CAT 40

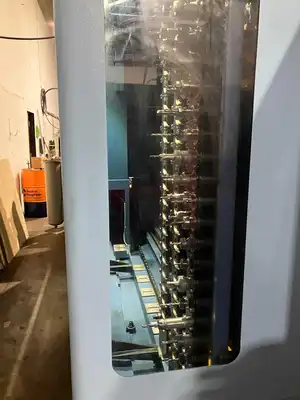

Tool Changer: 120 ATC

Equipped With:
Fanuc G-Tec 31i CNC Control
High Pressure Coolant Through Spindle

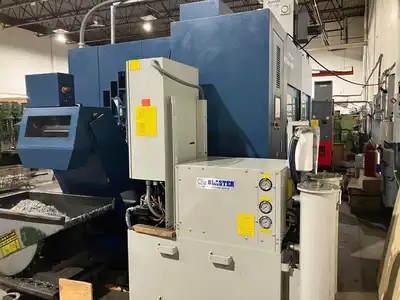

Chip Blaster Unit with Canister Filters
Drum Type Filter Chip Conveyor
Pop Up Tool Laser
Renishaw Tool Probe

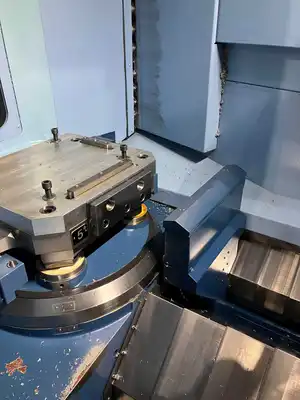

Full 4th Axis Pallet Rotation( Milling with Pallet)
Tombstone Fixtures
Top Mounted Mist Collector
Tool Changer Expandable to 360 ATC (add racks 120 atc each)
Can Be Run Lights Out
Direct Drive Pallet Rotation
Note: 1700 Machining Hours On This Machine
Electrics - 230 Volt 3/60
