| X-Axis | 41.339" | 1,050 mm |
| Y-Axis | 36.221" | 920 mm |
| Z-Axis | 38.976" | 990 mm |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 60 | 60 |
| Taper | BT50 | BT50 |
| Pallet-W | 24.803" | 630 mm |
| Pallet-L | 24.803" | 630 mm |
| # Axis | 3 | 3 |

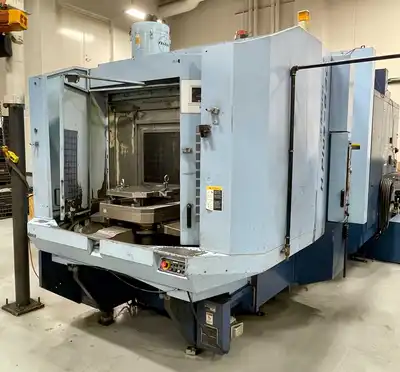

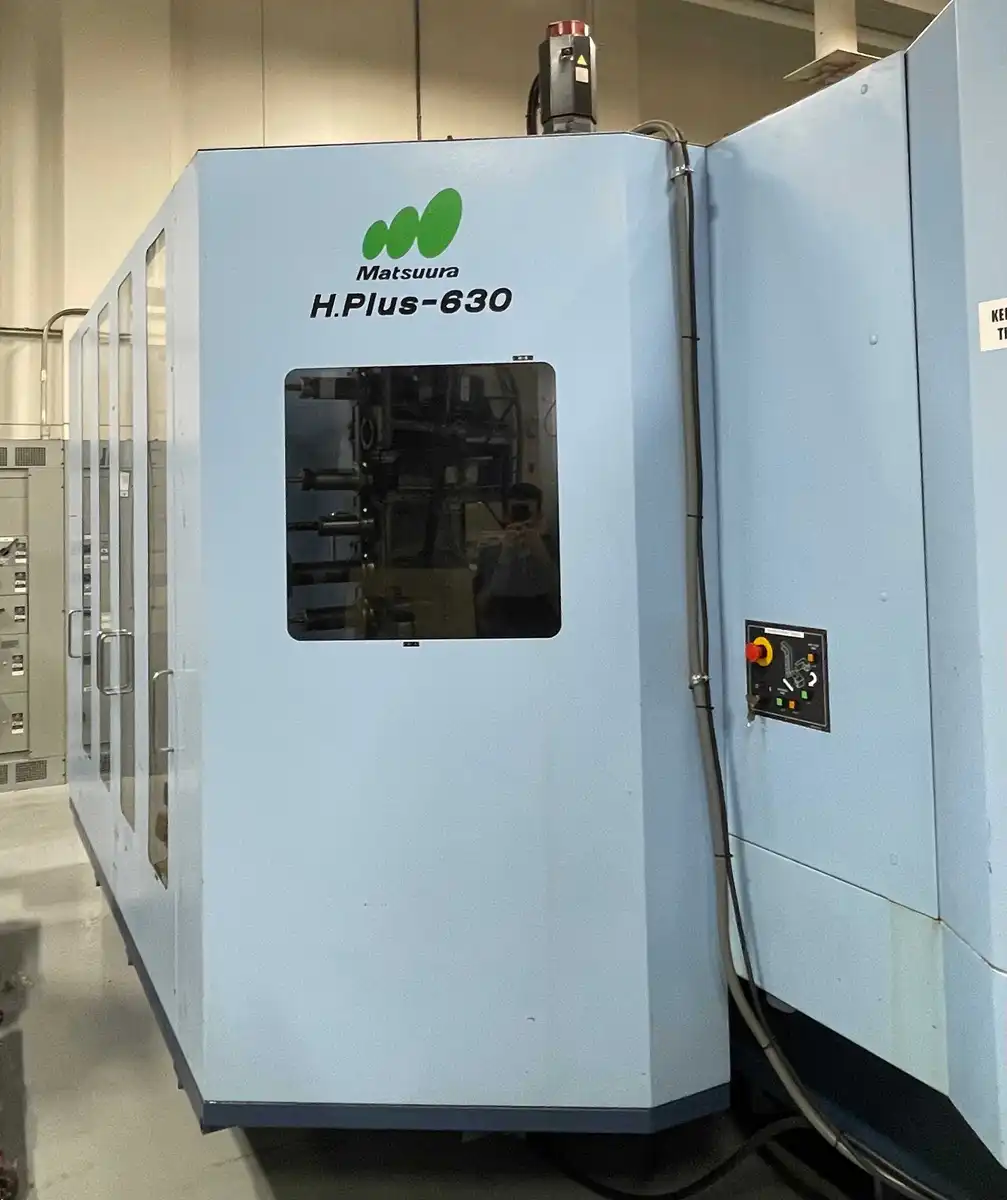

Matsuura H-Plus 630 Dual 24" Pallet Horizontal Machining Center
New: 2007
Specifications:

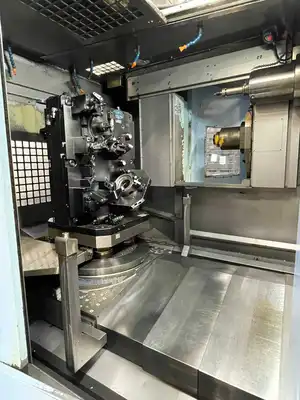

Pallet Size (2 Pallets): 24.8" x 24.8"
Pallet Indexing: 0.001 degree
Maximum Load On Pallet: 2600 Lbs
Travels:
X-Axis: 41.33"
Y-Axis: 36.22:
Z-Axis: 38.97"
Spindle Speed: 12,000 RPM
Spindle Taper: CT 50
Main Motor: 50 HP
Tool Changer Positions: 60 ATC
Rapid Traverse Rate: 2362 IPM
General Weight: 46,000 Lbs
Equipped With:

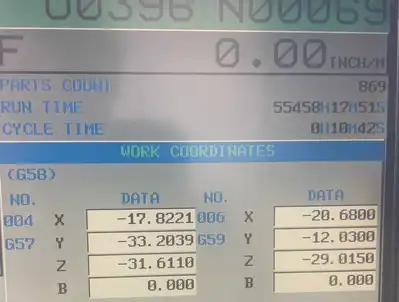

Fanuc G-Tech 30I 4-Axis Control
Full B-Axis
Spindle Chiller

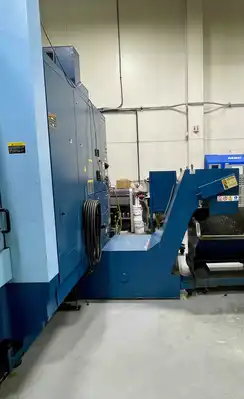

Chip Conveyor
Renishaw Probe
Auto Tool Length Measurement
Tool Breakage Detection

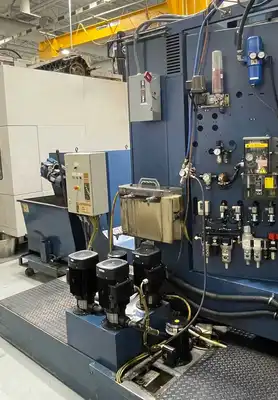

Through Spindle Coolant

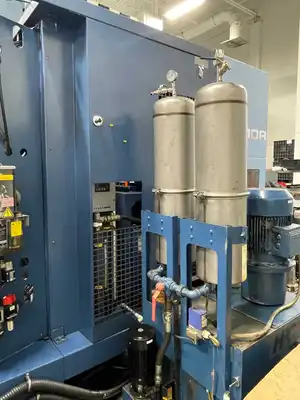

High Pressure Coolant
Scale Feedback System
Fanuc G-Tech 30I 4-Axis Control
Full B-Axis
Spindle Chiller
Chip Conveyor
Renishaw Probe
Auto Tool Length Measurement
Tool Breakage Detection
Through Spindle Coolant
High Pressure Coolant
Scale Feedback System
This equipment is currently unavailable. Similar equipment available now is shown below.
