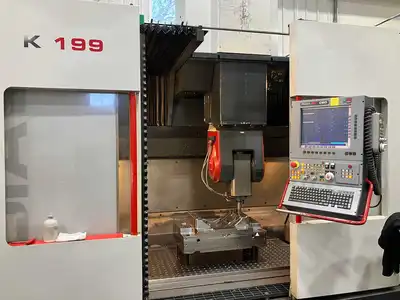

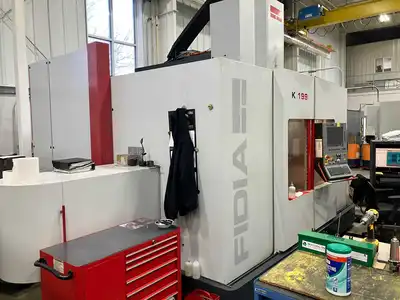

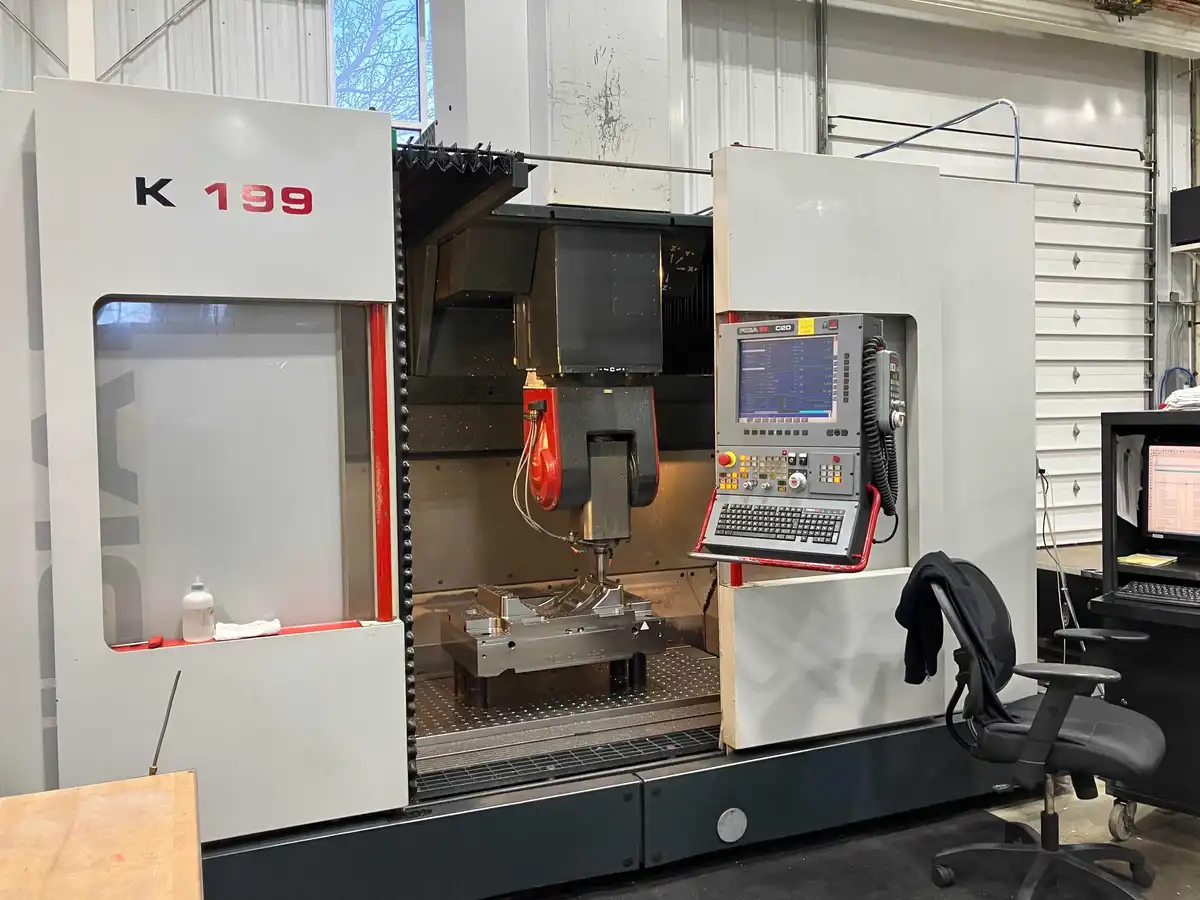

2007 Fidia K199 5-Axis Vertical Machining Center

Fidia K-199 5-Axis Vertical Machining Center
New: 2007

Specifications:
Travels:
X-Axis: 64"
Y-Axis: 29"
Z-Axis: 33"
Table Size: 79" x 49"
Table Load Capacity: 26,455 Lbs
Rapid Traverse Rate: 1181 IPM
Spindle Speed: 24,000 RPM
Spindle Taper: HSK 63A
Spindle Motor: 55 kW
Tool Changer: 42 ATC

Equipped With:

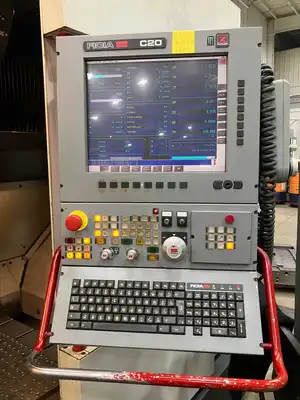

Fidia C-20 CNC Control

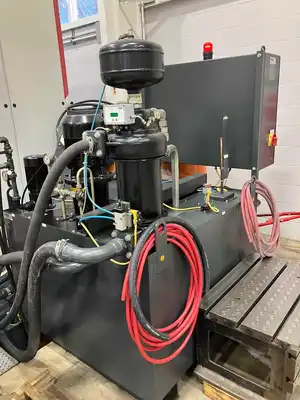

High Pressure Coolant Through Spindle

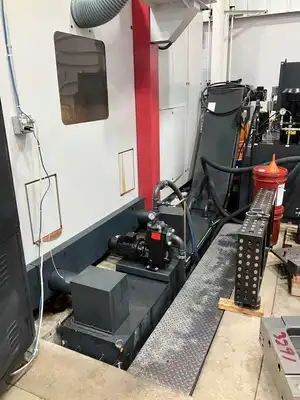

Chip Conveyor
Coolant Filtration
Ballscrews for Linear Axis Movement

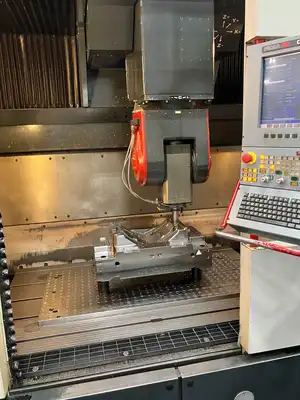

M5A/55 Continuous Bi-Rotary Head
New Spindle Installed 2018
+150 mm Rotating the C-Axis with Vertical Spindle

Dims: 202" x 173" x 163" H, 73000 Lbs
