2024 HAAS VF-4SS | Machining Centers, Vertical

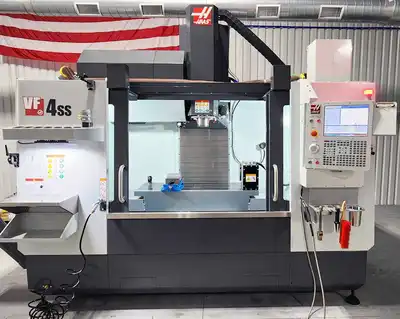

Haas VF-4SS CNC Vertical Mill w/ HRT
New: 2024

Specifications:
Rotary Table / Trunnion: Wired for 4th Axis
Rotary Make / Model: HRT-210 Rotary Table
Table / Pallet Size: 52" x 19.5 inches
X-Travel: 50 inches
Y-Travel: 20 inches
Z-Travel: 25 inches
Rapid Traverse: 1400 IPM
Cutting Feed Rate: 833 IPM
Spindle Taper Type: CAT#40
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Tool Magazine Capacity: 30.1
Max Tool Diameter(adjacent): 5 inches
Max Tool Diameter: 2.5 inches
Tool Change Time: 1.8 seconds
Chip-to-Chip Time: 2.4 seconds
Spindle Nose to Table Top: 4.2-29.2 inches
Max Tool Length: 13 inches
Max Tool Weight: 12 lbs
Max Table/Pallet Load: 1,750 lbs

Equipped With:
Haas CNC Control
Wireless Intuitive Probing System
Chip Auger
Haas HRT-210 Rotary Table
Through Tool Airblast
Coolant Maintenance Package
Auxiliary Coolant Filter System
Work Light Table
High Intensity Lighting
Tool Presetter
Tool Parts Probe
Transformer
Mist Collector
Renishaw Probe
Thru-Spindle Coolant (300 PSI)
Programmable Coolant

Control Options:
Color Monitor; Early Power Failure Detection; High Speed Machining; Rigid Tapping; Ethernet / LAN
1GB Standard Program Memory
HaasConnect: Remote Monitoring
Media Display M-Code; M130
Safe Run
Power Surge Protection
Control Touch Screen
WiFi Connection
