| Machining Length | 50" | 1,270 mm |
| Chuck Size | 25" | 635 mm |
| Bar Capacity | 10" | 254 mm |
| Power | 60 hp | 44.7 kW |
| Max RPM | 600 RPM | 600 RPM |
| Turning Dia | 34.6" | 878.84 mm |

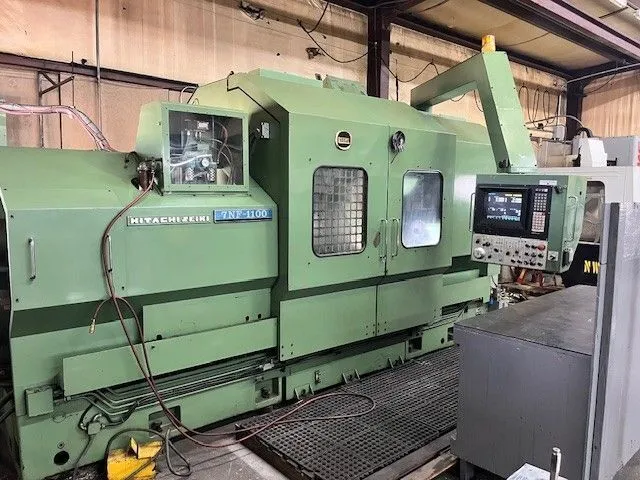

Hitachi-Seiki Model 7NF-1100
New: 1985
Specifications:
CAPACITY:Swing Over Bed34.6"
Swing Over C.S.25"
Center Distance50"
X-Cross21.5"
Z-Longitudinal44"
Number of Tools8 Stations
Tailstock stroke7"
Chuck Diameter25"
SPINDLE:Bar Capacity10"
Minimum Speed10 RPM
Maximum Speed600 RPM
Spindle Drive60 HP
Spindle Bore10.75"
Equipped With:2 speed headstock
tailstock
manuals
Equipped With:
25" Chuck
Fanuc Ctrl
Oilmatic Oil Temp Regulator
