2012 HAAS VF-5/40XT | Machining Centers, Vertical

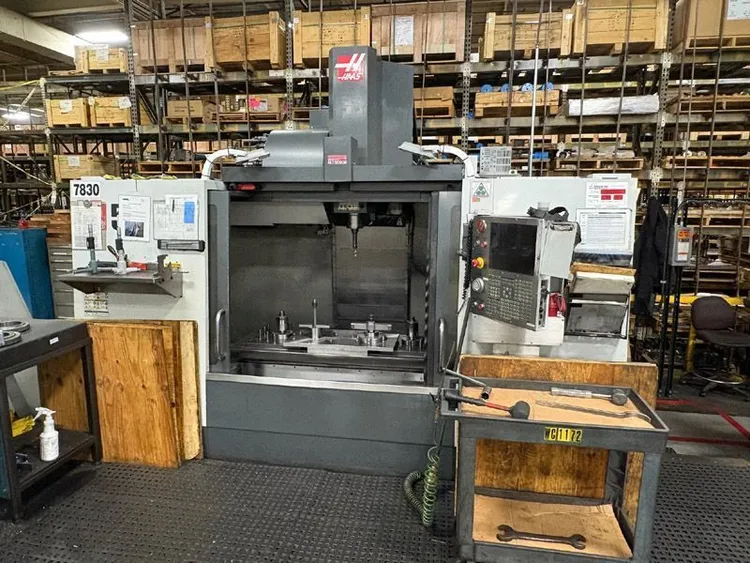

2012 Haas VF-5/40XT CNC Vertical Machining Center

Specifications (subject to buyer verification):
Travels
X Axis 60 "
Y Axis 26 "
Z Axis 25 "
Spindle Nose to Table (~ max) 32.9 "
Spindle Nose to Table (~ min) 7.9 "
Table
Length 62 "
Width 23 "
T-Slot Width 5/8 "
T-Slot Center Distance 3.15 "
Number of Std T-Slots 7
Max Weight on Table (evenly distributed) 4000 lb
Spindle
Max Rating 30 hp
Max Speed 8100 rpm
Max Torque 90 ft-lb @ 2000 rpm
Drive System Inline Direct-Drive
Max Torque w/opt Gearbox 250 ft-lb @ 450 rpm
Taper 40
Bearing Lubrication Air/Oil Injection
Cooling Liquid Cooled
Feedrates
Rapids on X 710 in/min
Rapids on Y 710 in/min
Rapids on Z 710 in/min
Max Cutting 500 in/min
Tool Changer
Type
Capacity 24
General
Air Required 4 scfm, 100 psi

Equipped With (subject to buyer verification):
Haas CNC Control
Thru Spindle Coolant
WIPS
Chip Auger
Side Mount 24 ATC
