1991 UNION BFP130 | Boring Mills, Horizontal, Floor Type

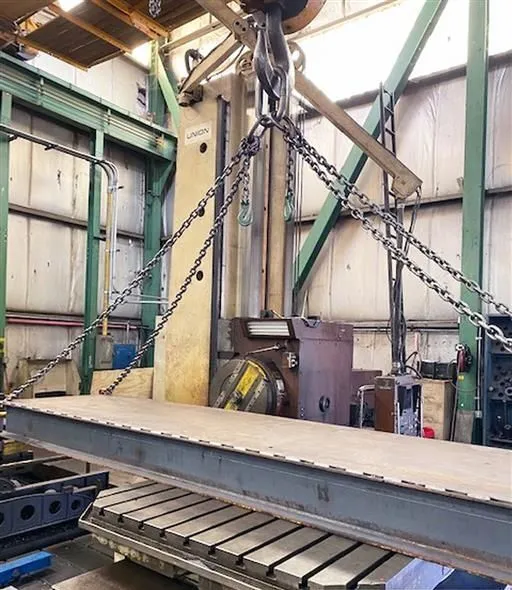

Union BFP130 5.12" CNC Floor Type Horizontal Boring Mill
New: 1991

Specifications:
SPINDLE DIAMETER 5.12"
SPINDLE TAPER ISO 50
VERTICAL TRAVEL OF HEAD, Y-AXIS 119"
HORIZONTAL COLUMN TRAVEL, X-AXIS 220.50"
COLUMN INFEED, Z-AXIS 16.55"
SPINDLE TRAVEL, W-AXIS 35.43"
SPINDLE SPEEDS, 4-RANGES 5-1000 RPM
RAPID TRAVERSE, X & Y AXES 196.85 IPM
RAPID TRAVERSE, Z & W AXES 118.11 IPM
FEEDS, ALL AXES 98.42 IPM
APPROXIMATE OVERALL MACHINE WEIGHT 90,500 LBS

EQUIPPED WITH:
HEIDENHAIN TNC 355 CNC CONTROL
86" X 86" TOS INFEEDING TABLE
31.5" CNC PROGRAMMABLE FACING HEAD
SPINDLE SUPPORT
TELESCOPING STEEL WAY COVERS ON X-AXIS
INDEPENDANT SERVO MOTOR DRIVES
HARDENED & GROUND WAYS
STEEL SLIDING WAY COVERS
67 HP SPINDLE DRIVE MOTOR

NOTE:
INSPECT IN PLANT UNDER POWER, NEW SPINDLE DRIVE 2020
