| Swing | 21.26" | 540 mm |
| Machining Length | 433.07" | 11,000 mm |
| Chuck Size | 12.402" | 315 mm |
| Turning Dia | 13.386" | 340 mm |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |

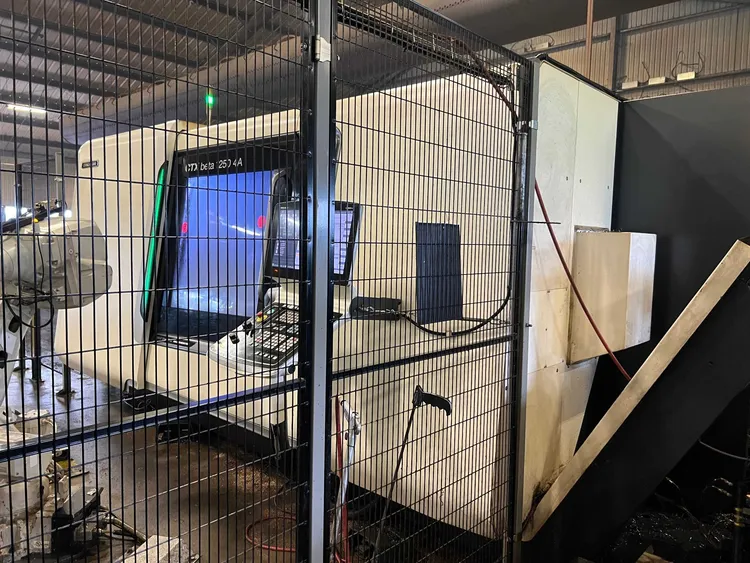

DMG Mori CTX beta 1250 4A Compact High Productive CNC Turning Center with TWIN Concept Machining
New: 2017
Specifications:
Maximum Work Piece Diameter: 13.4"
Maximum Work Piece Length: 44.7"
Maximum Bar Diameter: 4
X Axis Travel: 11.8"
Y Axis Travel: 4.7"
Z Axis Travel: 46.1"
Weight (Approximate): 14,500 kg (31,900 Lbs.)
Equipped With:
Siemens CNC Control
4 Axis Machining
(2) 12 position VDI 40 Star Turrets (4000 rpm, 15.2 hp, 20.7 ft.-lbs. torque)
Main and Counter Spindle (5000 rpm, 64.4 hp, 265.5 ft.-lbs. .torque)
TWIN Concept for Parallel Processing
Main Spindle with C Axis
Sub Spindle with C Axis
Upper Turret with Y Axis and Live Tools
Lower Turret with Live Tools
This equipment is currently unavailable. Similar equipment available now is shown below.
