2013 TOSHIBA BP-150.R22

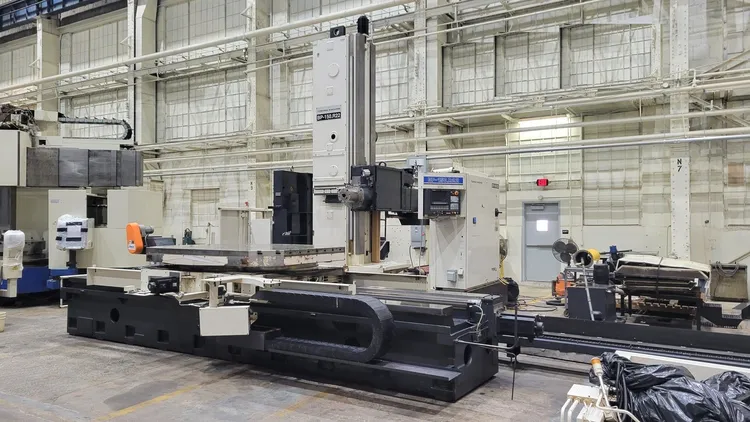

Toshiba BP-150.R22 5.9" CNC Horizontal Boring Mill
New: 2013

Specifications:
SPINDLE DIAMETER 5.9"
TAPER IN SPINDLE CAT 50
Y-AXIS VERTICAL TRAVEL 120"
X-AXIS TABLE TRAVEL 160"
Z-AXIS SPINDLE TRAVEL 28"
W-AXIS COLUMN INFEED TRAVEL 60"
B-AXIS ROTARY TABLE 0.001 DEGREES
ROTARY TABLE SIZE 70.9" X 86.6"
TABLE LOAD CAPACITY 44,000 LBS
SPINDLE SPEEDS (3-RANGES) 5-2500 RPM
RAPID TRAVERSE X,Y,Z AXES 708.7 IPM
RAPID TRAVERSE B-AXIS 720 DEG/MIN
MACHINE FOOTPRINT 300" X 402"
MACHINE HEIGHT 225.3"
MACHINE WEIGHT 96,800 LBS

Equipped With:
TOSNUC 999 4-AXIS CNC CONTROL
60-STATION AUTOMATIC TOOL CHANGER
PENDANT FOR MANUAL OPERATION
SCALE FEEDBACK
THRU-SPINDLE COOLANT
FLOOD COOLANT
BUILT-IN B-AXIS ROTARY TABLE
CHIP CONVEYOR
50 HP/40 HP SPINDLE MOTOR

Also Available:
TOSHIBA RIGHT ANGLE HEAD AT ADDITIONAL COST.
