TOS 5.12" CNC HBM - 2015
Heidenhain ITNC 530, 40 ATC, B-Axis, Coolant, 98" x 137" x 55", 31.5" W-Axis, 71" x 98" Table, 3K RPM

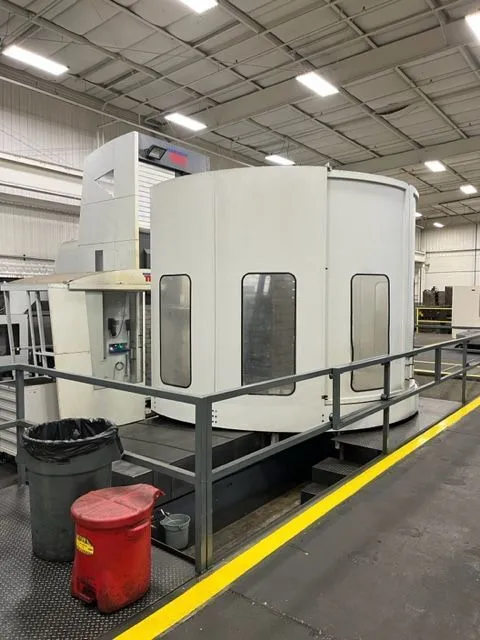

TOS WHR-13Q CNC Table Type Horizontal Boring Mill
New: 2015
Specifications:
SPINDLE DIAMETER 5.12"
SPINDLE TAPER #50 ISO
VERTICAL TRAVEL, Y-AXIS 98.42"
TABLE CROSS TRAVEL, X-AXIS 137"
SPINDLE TRAVEL, W-AXIS 31.49"
COLUMN INFEED TRAVEL, Z-AXIS 55"
TABLE SIZE, BUILT IN ROTARY 70.8" X 98.4"
ROTARY TABLE, B-AXIS 360,000
ROTARY TABLE LOAD CAPACITY 39,600 LBS
SPINDLE SPEEDS: 10-3000 RPM
Equipped With:
HEIDENHAIN ITNC 530 CNC CONTOURING CONTROLS
40-STATION AUTOMATIC TOOL CHANGER
THRU-SPINDLE COOLANT
T-TYPE CONSTRUCTION, INFEEDING COLUMN
BUILT B-AXIS ROTARY TABLE
OPERATORS PLATFORM
HARDENED WAYS
STEEL TELESCOPING WAY COVERS
CHIP AND SPLASH ENCLOSURE
50 HP SPINDLE DRIVE
