2005 DOOSAN PUMA 240MSC | Lathes, Bar, CNC

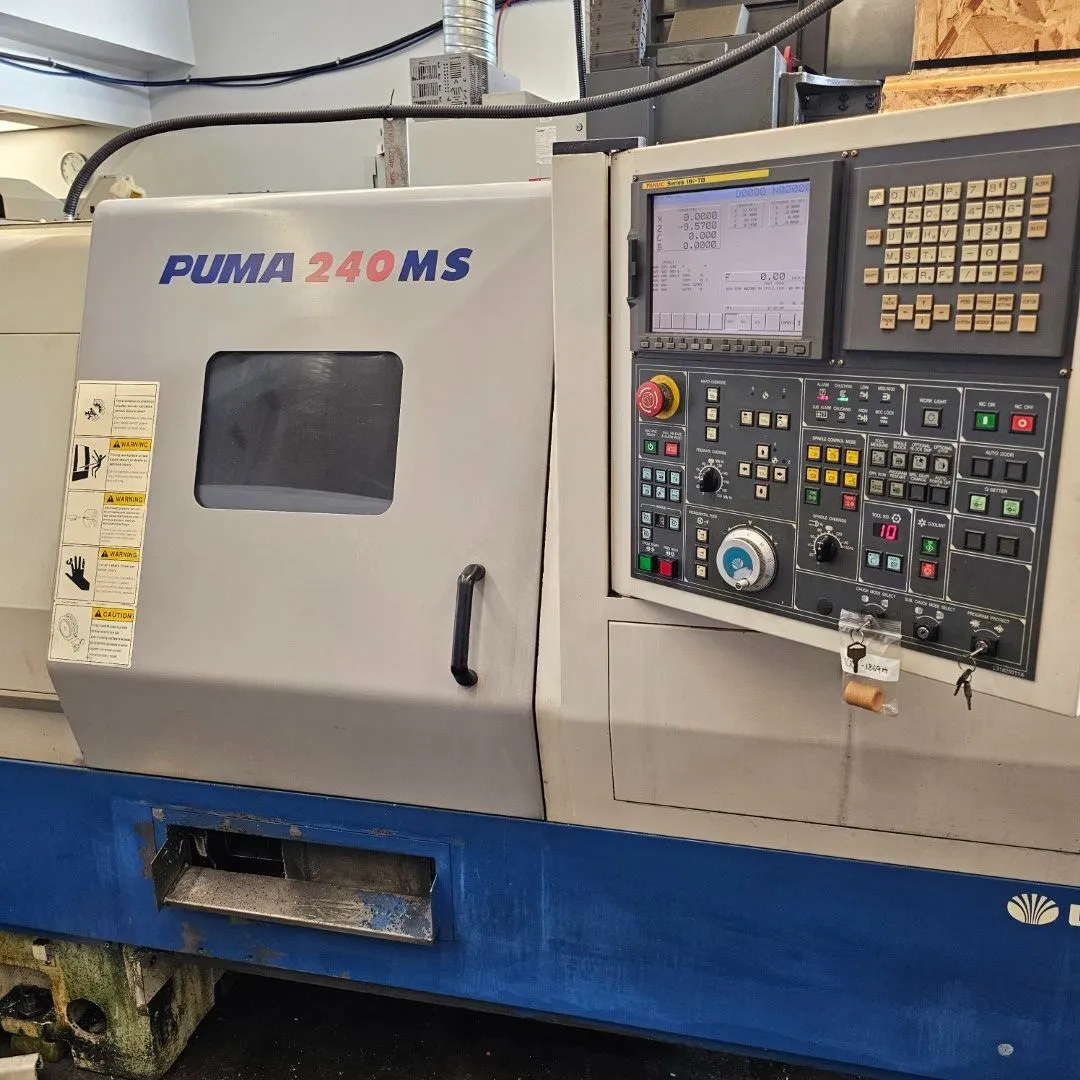

Doosan Puma 240MSC CNC Turning Center
New: 2005

Specifications:
Max Swing Over Bed: 21.65″
Max Swing Over Carriage: 15.35″
X-Axis Travel: 19.53″
Z-Axis Travel: 22.83″
Max Machining Length 22.13″
Turning Diameter: 13.78″
Spindle Speed: 4,500 RPM
Spindle Bore / Bar Capacity: 2.99″ / 2.5″
Spindle Motor: 20 H.P.
Spindle Nose: A2-8
Turret Stations: 12
Tailstock Taper MT#4

Equipped With:
Fanuc 0i-TC CNC Control
Hinge Belt Chip Conveyor
Automatic Tool Setter
Flood Coolant
Tailstock
2-Speed Gear Box
SMW Spacesaver Bar Feeder
Programmable Parts Catcher
Standard Tooling Blocks with X & Z Rotary Tools
Collet Chucks for main and sub spindle
Hydraulic chucks for main and sub spindle

*Brand new spindle bearings installed by Doosan
