2004 HAAS VF-4SS | Machining Centers, Vertical

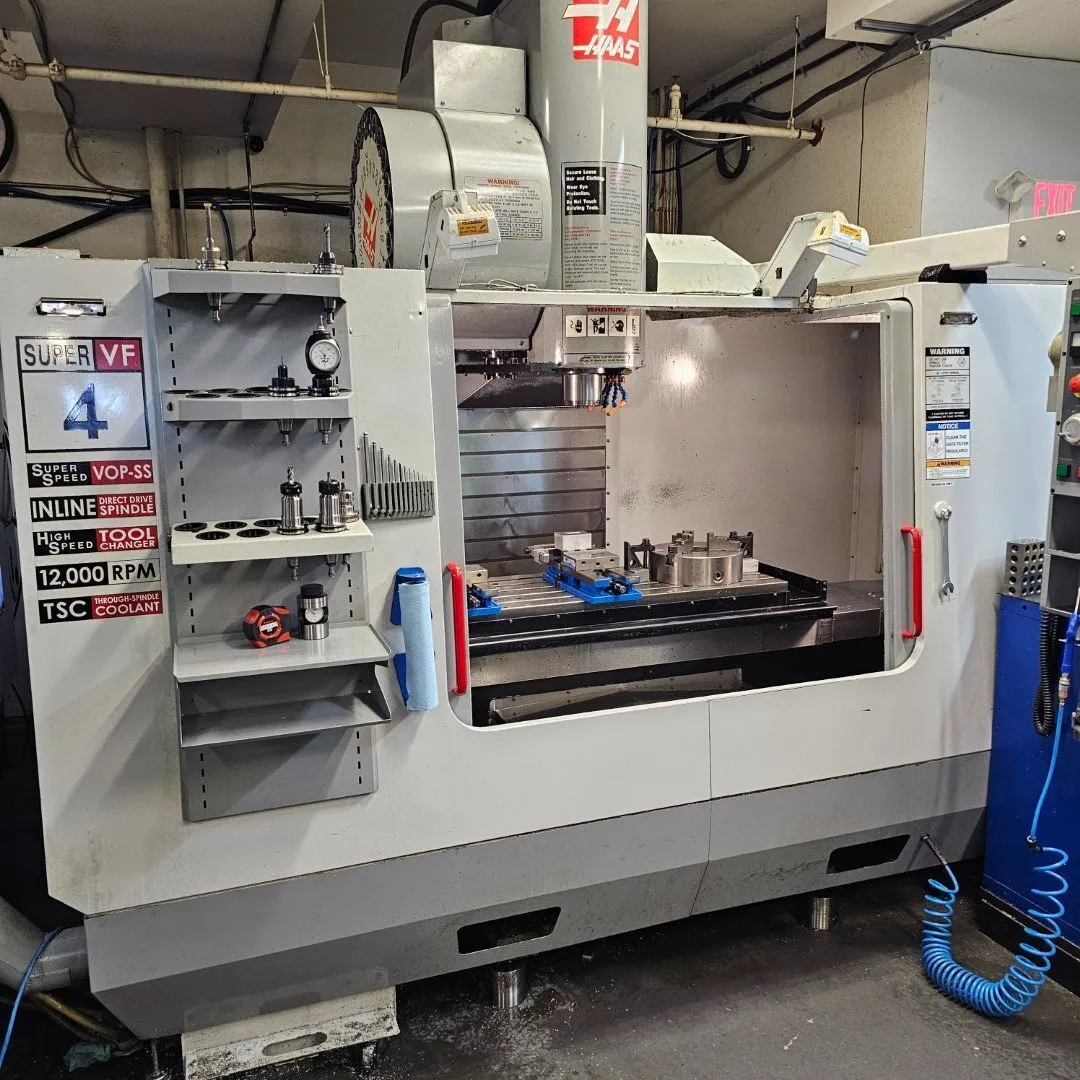

Haas VF-4SS CNC Vertical Machining Center
New: 2004

Specifications:
X-AXIS TRAVEL............... 50"
Y-AXIS TRAVEL............... 20"
Z-AXIS TRAVEL............... 25"
TABLE SIZE.................. 52" x 18"
NUMBER OF T-SLOTS........... 5
MAX WEIGHT ON TABLE......... 1750 LBS
SPINDLE TAPER............... 40 TAPER
SPINDLE SPEEDS.............. 12,000 RPM
SPINDLE NOSE TO TABLE....... 4.2" TO 29.2"
RAPID TRAVERSE RATE......... 1400 IPM
AUTOMATIC TOOLCHANGER....... 24+1 POSITIONS

Equipped With:
Haas CNC Control
New Spindle & Motor from HFO - upgraded 2023
HRT-A6 4th Axis with Set-Tru 3-Jaw Chuck
12000 RPM Spindle
24+1 ATC
Programmable Coolant
Thru Spindle Coolant
High Intensity Lighting
Rigid Tapping
Remote Jog Handle
Chip Auger
Rotation & Scaling
DNC
M19 Spindle Orientation
Macros
Quick Code
16MB Memory Upgrade
USB
Wired for 4th Axis
