2004 HAAS SUPER MINI MILL | Machining Centers, Vertical

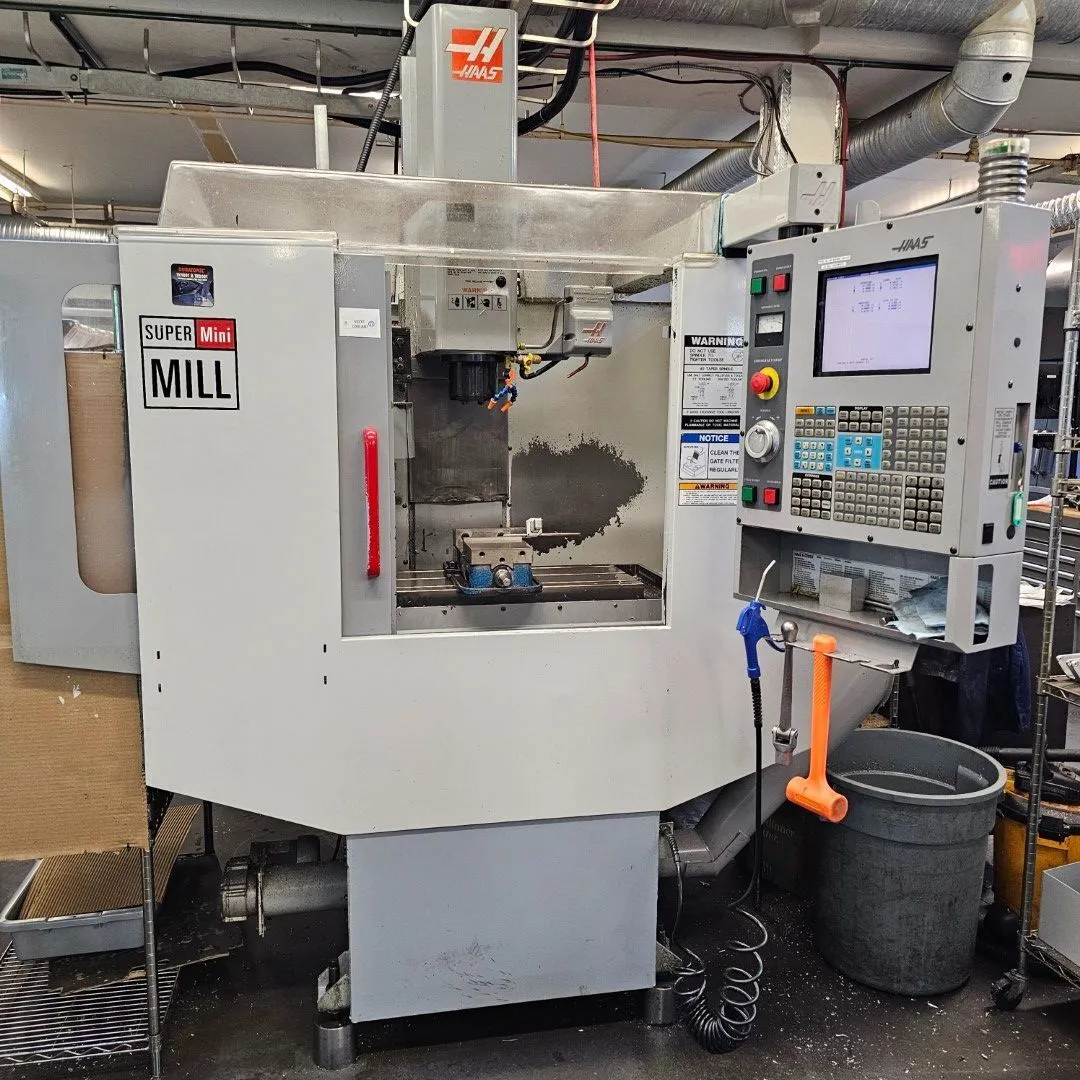

Haas Super Mini Mill CNC Vertical Machining Center
New: 2004

Specifications:
X-AXIS TRAVEL............... 16"
Y-AXIS TRAVEL............... 12"
Z-AXIS TRAVEL............... 10"
TABLE SIZE.................. 28.75" X 12"
SPINDLE NOSE................ 40 TAPER
SPINDLE SPEEDS.............. 15000 RPM
SPINDLE NOSE TO TABLE....... 4" TO 14"
SPINDLE MOTOR............... 15 HP
RAPID TRAVERSE RATE......... 1200 IPM
AUTOMATIC TOOLCHANGER....... 10 POSITIONS

Equipped With:
Haas CNC Control
15000 RPM Spindle
3/4 HP Coolant Pump
Programmable Coolant
Chip Auger
Rigid Tapping
RS232 Port and USB Interface
Accepts 240V Single or 208/3 Ph Power
