2011 ZEISS MMZ G 30-40-30

================================================================================

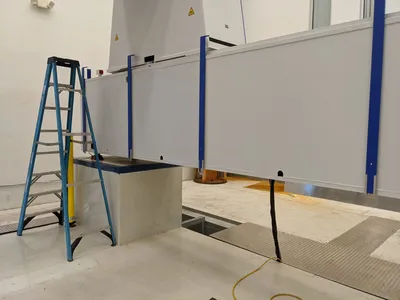

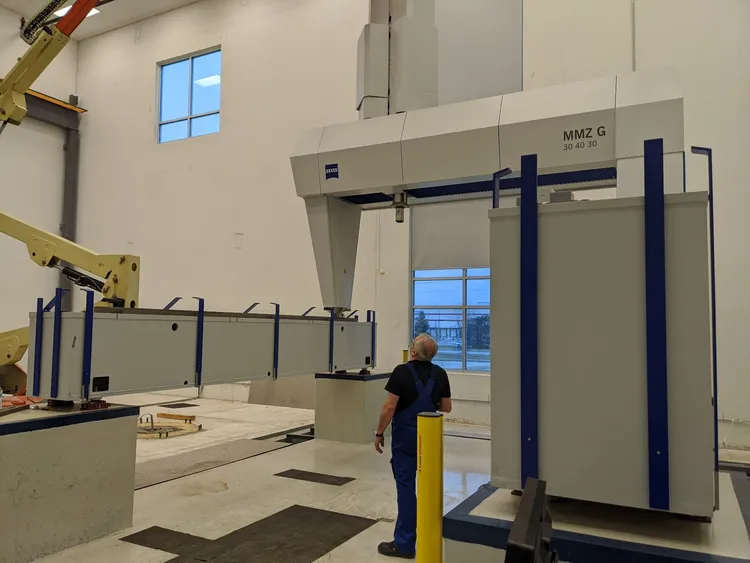

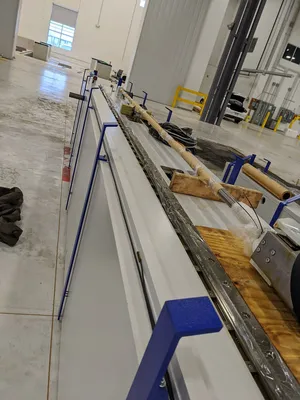

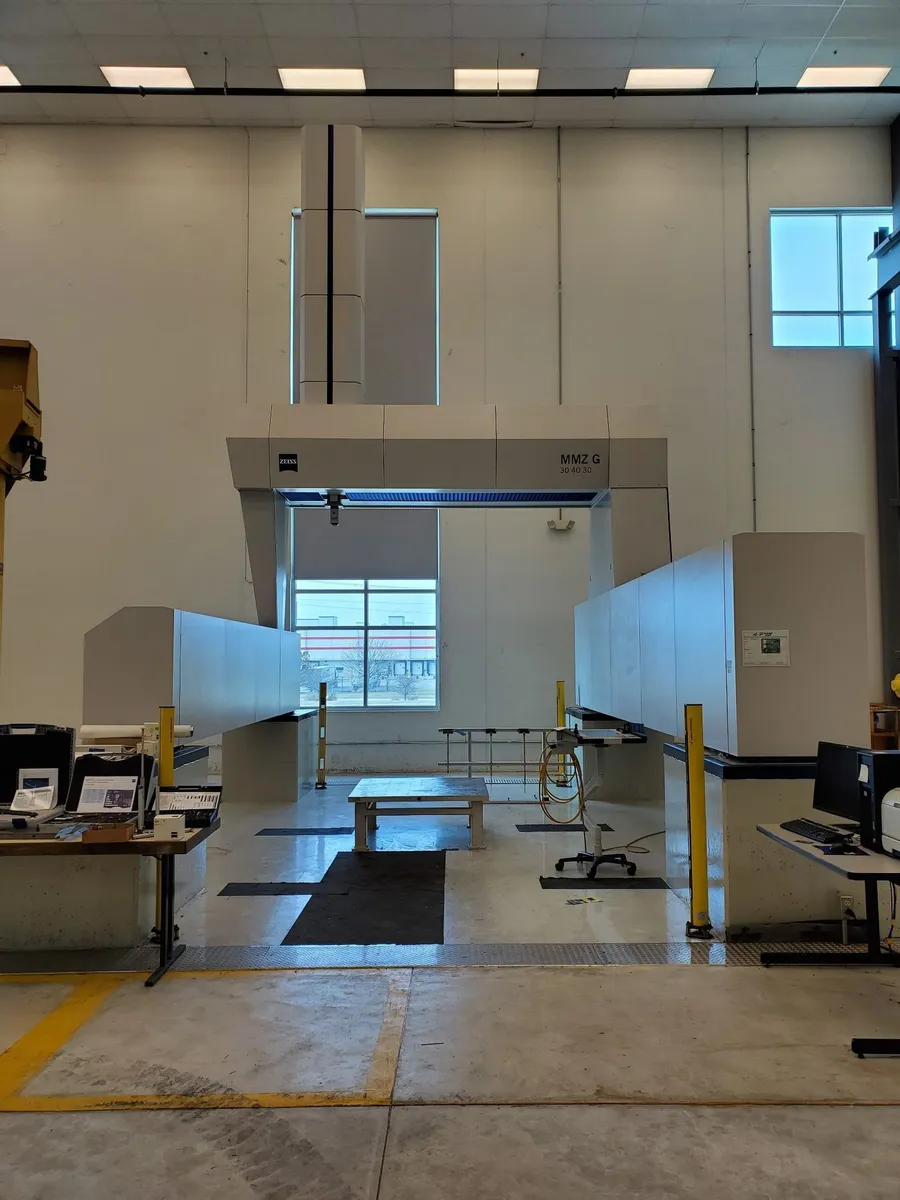

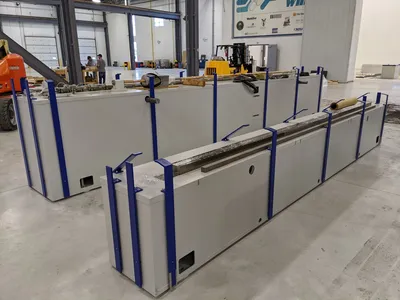

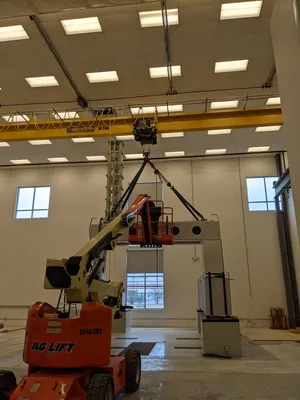

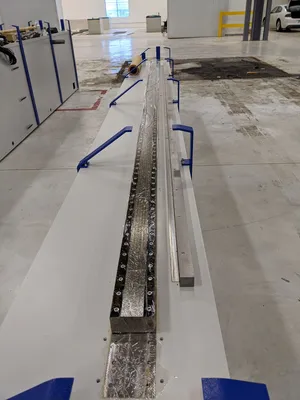

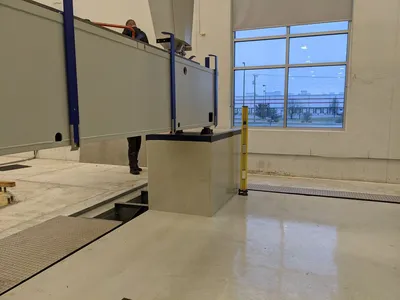

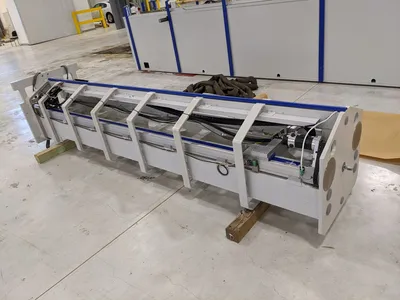

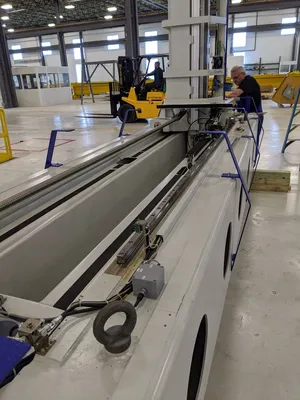

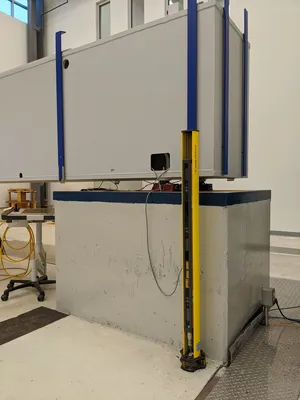

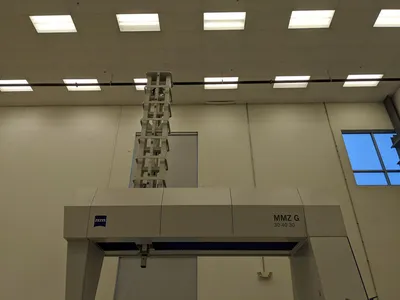

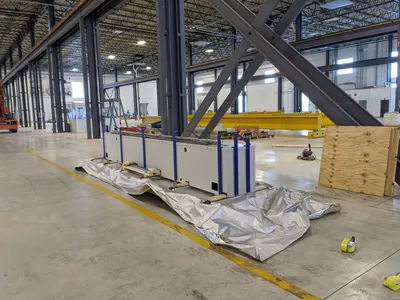

ZEISS GANTRY MMZ G 30/40/30 COORDINATE MEASURING MACHINE
================================================================================

MACHINE OVERVIEW
High-precision gantry-type coordinate measuring machine with VAST GOLD scanning
probe head for dimensional inspection and measurement of complex components.

================================================================================
KEY SPECIFICATIONS
================================================================================

Measuring Range: X = 3000 mm | Y = 4000 mm | Z = 3000 mm

Scale Resolution: 0.2 micron

Length Measuring Error (ISO 10360-2):
MPE_L: 4.2+L/300 µm
MPE_P: 2.9 µm
MPE_THP: 5.4 µm (in 78 sec.)

Temperature Requirements: 18°...22°C
Temperature Fluctuations: 1.0 K/h, 1.0 K/d, 2K

Ambient Operating Conditions: 15°C to 35°C

Travel Speeds:
Axis: 300 mm/sec
Vector: 520 mm/sec
Axis Acceleration: 250 mm/sec²
Vector Acceleration: 430 mm/sec²

================================================================================
STANDARD EQUIPMENT & CONFIGURATION
================================================================================

PROBE SYSTEM:
VAST GOLD Scanning Probe Head
- Active scanning procedure with high-resolution inductive systems
- Active probing force generator
- Stylus up to 800 mm possible
- Weight of stylus up to 600 g
- Improved mechanical collision protection
- Automatical counterbalancing of stylus after changes

Calibration Sphere on Magnetic Socket
Calibration Sphere Mount RSH-514 with 30mm diameter sphere (514mm total height)

ACCESSORIES:
Probe Kit with Thermofit Extensions
Probe Kit Gear
Probe Changer with 4 Probe Sockets & 4 Adapter Plates
BILZ Antivibration System Transport and Assembly (included)
Manuals (CD-ROM)

CONTROL SYSTEM:
Dynalog P3 XGA Control Panel for PC-data system
PC Table with adjustable, turnable support
Optical security barrier

SOFTWARE:
CALYPSO CNC Measurement Software
- Full-feature graphic measurement and evaluation with CAD core
- Easy-to-use based on inspection schedule
- Full graphic support with visualization of tasks and input data
- Automatic element identification and travel route generation
- Variable inspection scope (FOCUS)
- Variable result presentation with graphics integration
- Multimedia support for clamping and probe configuration

GEAR PRO Involute License

WORKSTATION:
HP XW4600 Workstation
- 2.83 GHz Core 2 Duo processor
- 160GB SATA hard disk (2x 7.2k)
- 2 GB RAM DDR2-800 ECC
- ATI FirePro V3700 graphics card (256MB, 2 LAN)
- Broadcom 10/100/1000, DVD+/-RW duallayer, USB
- Windows Vista32B or XP32B
- HP LE1901w 19" Widescreen LCD monitor
