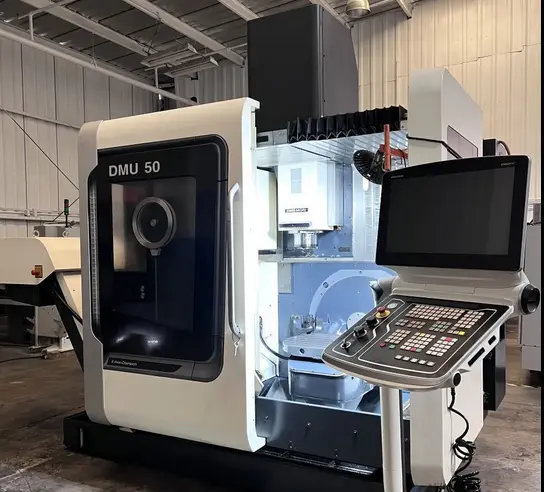

2016 DMG MORI DMU 50 | Machining Centers, Vertical, (5-Axis or More)

Features:
Siemens 840D with CELOS CNC Control
5,950 Hours Cutting Time
5 Axis Simultaneous Machining
ø 24.8″ × 19.7″ Trunnion Table
30 Station Automatic Tool Changer
PCMCIA Card Slot
Thermal Compensation
Spindle Orientation
Helical Interpolation
Rigid Tapping

Table:
Table size: ø 24.8″ × 19.7″
Max. Height: 31.1″
Max Weight on Table: 440.9 lbs

Travel:
X Axis: 19.7″
Y Axis: 17.7″
Z Axis: 15.7″
B Axis: -35° +110° ( Table Tilt )
C Axis: 360° ( Table Rotate )

Spindle:
Taper Size: CAT-40
Speed Range: 15,000 RPM
Spindle Power: 20 HP

Feed Rates:
Rapid X Y & Z: 945 Inch Per Minute
Feed Rate : 945 Inch Per Minute

Tool Changer:
Capacity: 30 Tools
Taper: CAT-40
Max Tool Size: 3.14″ X 11.81″
Max Tool Weight: 17.63 lbs.

General:
Air Required: 80 psi, 4 scfm
Power: 400 v / 60 hz / 34.5 kva
Overall Dimensions: 216.5″ x 135″ x 106″ High
Weight: 8818 lbs

Equipped With:

Trunnion Table
15,000 RPM High Speed Spindle
Through Spindle Coolant
High Pressure Coolant System
3D Quickset
Renishaw Probing System
Table Laser Sensor/Blum
Chip Conveyor
