2020 FPT DINOSPIN | Machining Centers, Vertical

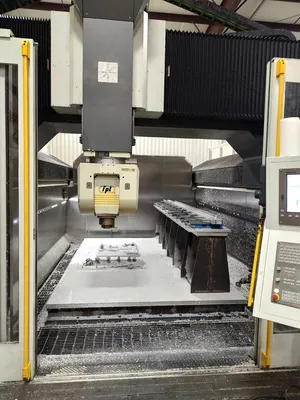

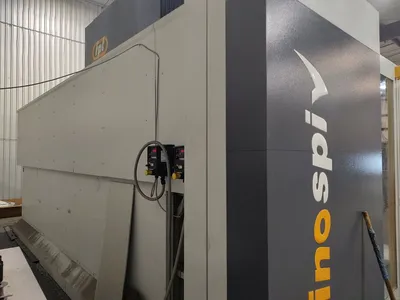

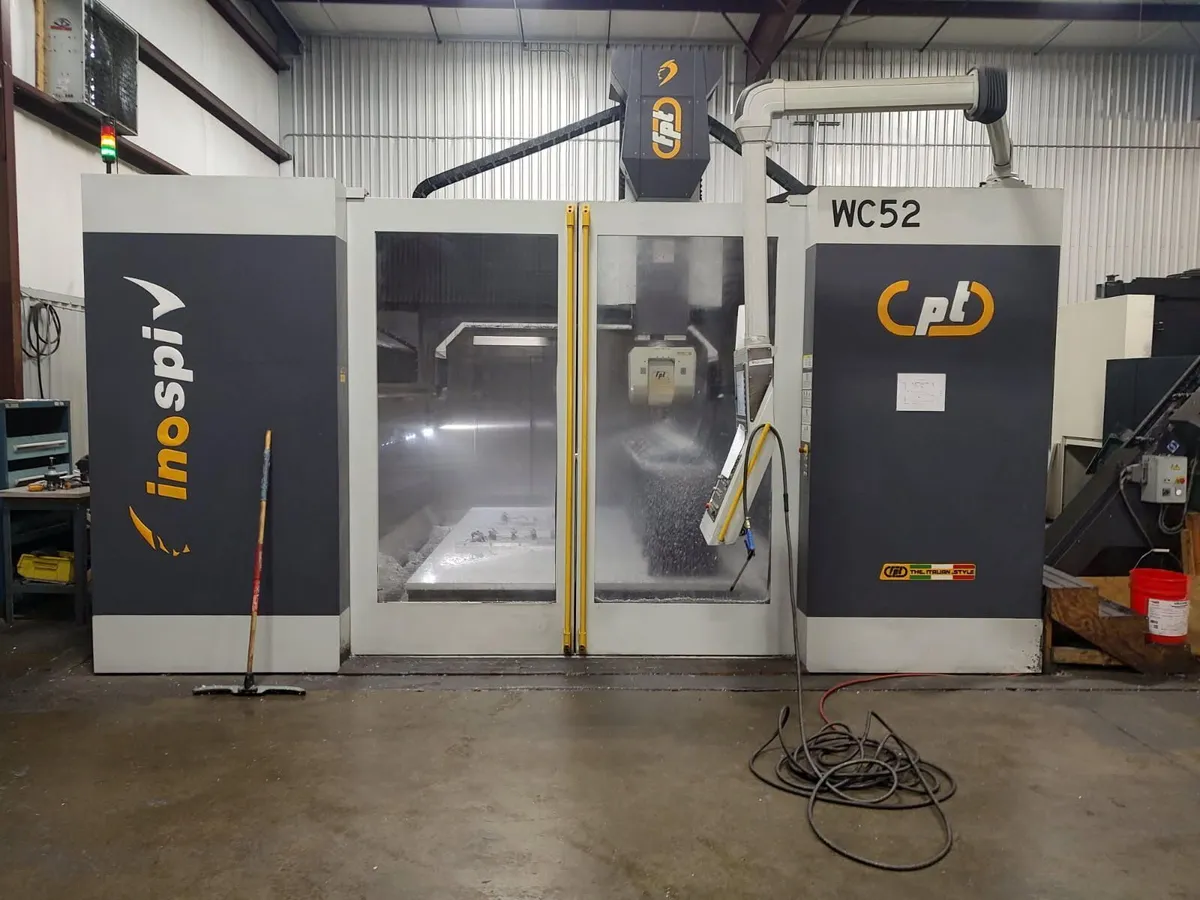

FPT Dino Spin High Dynamic Accuracy With Moving Beam 5-Axis CNC Gantry Mill
Stationary Table Type Linear Machine
New: 2020

Specifications:
X-AXIS TRAVEL.............: 137.79"
Y-AXIS TRAVEL.............: 98.4"
Z-AXIS (RAM STROKE).......: 51.18"
C AXIS, SWIVEL +/- 270 DEGREES
A-AXIS, SWIVEL RANGE +/- 115 DEGREES
TABLE SIZE 98.42" x 137.79"
SPINDLE SPEEDS 22,000 RPM
SPINDLE TAPER HSK-A63
SPINDLE DRIVE MOTOR 59 HP / 73 HP
FEEDS 1574 IPM

Equipped With:

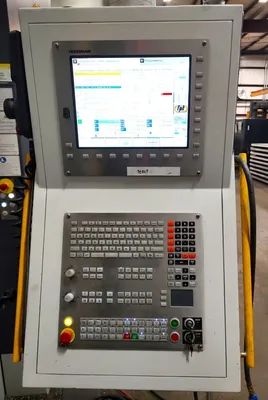

HEIDENHAIN TNC 640 5-AXIS CNC CONTROL
2-AXIS "ELECTRO SPINDLE" PROGRAMMABLE SWIVEL HEAD
60-POSITION AUTOMATIC TOOL CHANGER
THROUGH SPINDLE COOLANT
CHIP CONVEYOR
COMPRESSED AIR THRU SPINDLE
FULL GUARDING ENCLOSURE

Control Details:
DYNAMIC RTCP SOFTWARE
RAM: 4 GBYTE
32 GBYTE HARD DISK WITH MIN 21 GBYTE PROGRAM MEMORY
INPUT RESOLUTION AND DISPLAY STEP:
LINEAR AXES UP TO 0,1 ?M
ANGULAR AXES UP TO 0,0001°
INPUT RANGE:
MAX +/- 99999,9999 MM (+/-3937 IN.) OR +/- 99999,9999°
INTERPOLATION:
CIRCULAR INTERPOLATION IN 3 AXES WITH ROTATED WORKING PLANE
HELICAL INTERPOLATION: SUPERIMPOSITION OF CIRCULAR AND LINEAR PATH
LINEAR IN 5 AXIS (VERSION SUBJECT TO EXPORT LICENSE)
BLOCK PROCESSING TIME:
0,5 MS (3D STRAIGHT LINE WITHOUT RADIUS COMPENSATION)
AXIS FEEDBACK CONTROL
POSITION LOOP RESOLUTION: SIGNAL PERIOD OF THE POSITION ENCODER/1024
CYCLE TIME OF POSITION CONTROLLER: 200
CYCLE TIME OF SPEED CONTROLLER: 200
CURRENT CONTROLLER CYCLE TIME: MIN. 100

DATA INTERFACES:
1 X RS-232-C
2 X ETHERNET 1000BASET (TWISTED PAIR ETHERNET)
1 X FRONTAL USB 2.0
4 X REAR USB 3.0

Replaces New Over $1M
