2021 HAAS TL-1 | Lathes, CNC

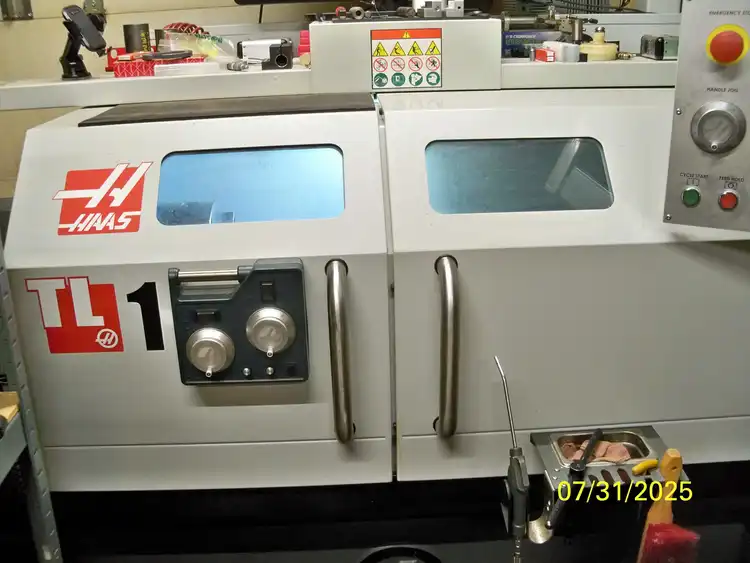

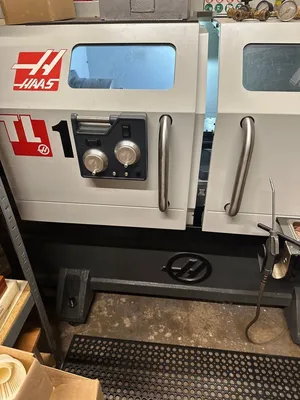

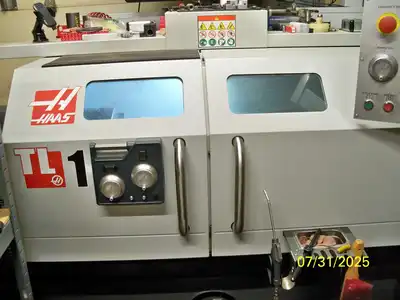

Haas TL-1 CNC Toolroom Lathe
New: 11/2018; Installed 2021

Specifications:
Swing Over Apron: 20.0"
Swing Over Cross: 11.0"
Max Cutting Length: 30.0"
Max Cutting Diameter: 16.0"
Center Distance: 30.0"
Travels:
X-Axis: 8.0"
Z-Axis: 30.0"
Spindle Speed: 3000 RPM
Spindle Taper: A2-6
Spindle Motor: 10 HP

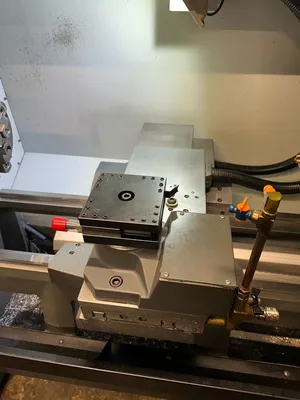

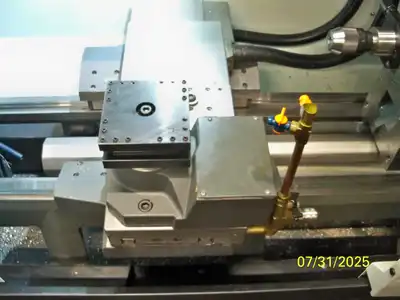

Tool Turret: 4 Station
Tailstock Quill: MT4
Chuck Size: 10"
Rapid Feedrate: 450 IPM

Equipped With:

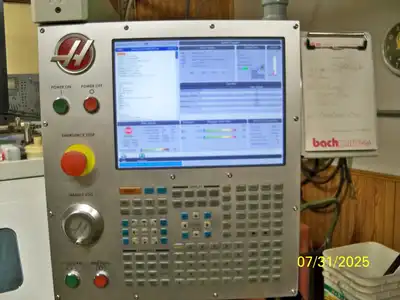

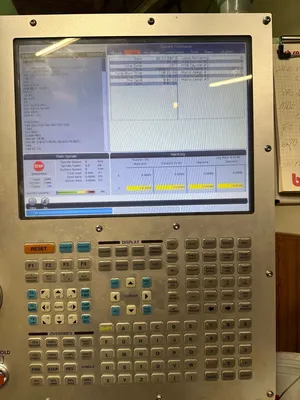

Haas CNC Control with Touch-Screen Interface

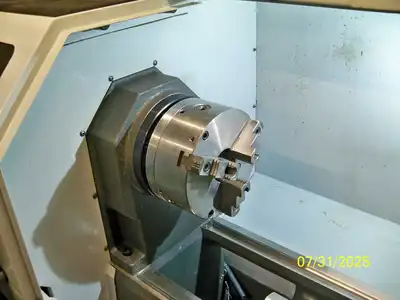

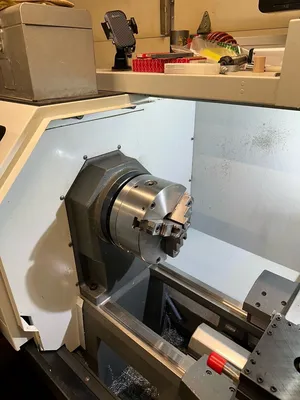

10" Manual 3-Jaw Chuck
Rigid Tapping
Spindle Orientation

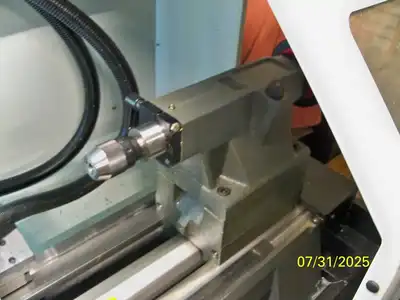

Manual Tailstock

1GB Program Memory
Coolant Pump Kit, 1/4 HP 20-Gallon Tank
Chip Enclosure
Early Power-Failure Detection Module
Ethernet
HaasConnect
HaasDrop Wireless File Transfer
User-Definable Macros
Visual Part Programming System
WiFi Connection
Work Light
Electronic Handwheels

Electrics: 220 VAC
Approx Dimensions: 89" x 67" x 83", 4620 Lbs

Replacement Cost: $53,270

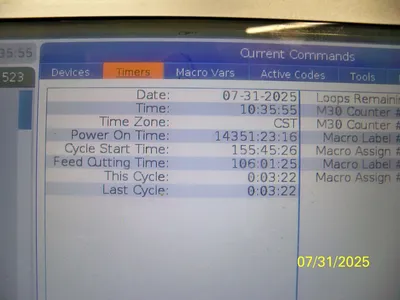

*Under 200 hours cutting time!
