| X-Axis | 762 mm | 30" |
| Y-Axis | 516 mm | 20.315" |
| Z-Axis | 570 mm | 22.441" |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 30 | 30 |
| Taper | BT-40 | BT-40 |
| Table-W | 570 mm | 22.441" |
| Table-L | 860 mm | 33.858" |
| # Axis | 3 | 3 |

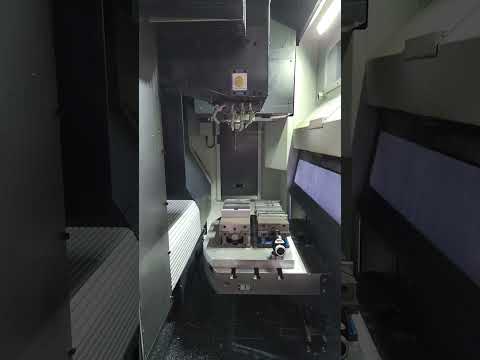

Doosan VC 430 Dual Pallet CNC Vertical Machining Center
New: 2020
Specifications:
Travels:
X-Axis: 22.0"
Y-Axis: 16.9"
Z-Axis: 22.4"
Spindle Speed: 10,000 RPM
Spindle Motor: 25 HP
Spindle Taper: Big Plus BT40
Tool Changer: 30 ATC
Pallets: 2
Size: 28.0" x 19.3"
Max Load: 660 Lbs
Rapid Traverse:
X/Y-Axes: 1575 IPM
Z-Axis: 1417 IPM
Dimensions: 94.1" x 113.8" x 122.4"H
Weight: 17226 Lbs
Equipped With:
Fanuc CNC Control
Probe
Tool Setter
LNS Chip Conveyor
