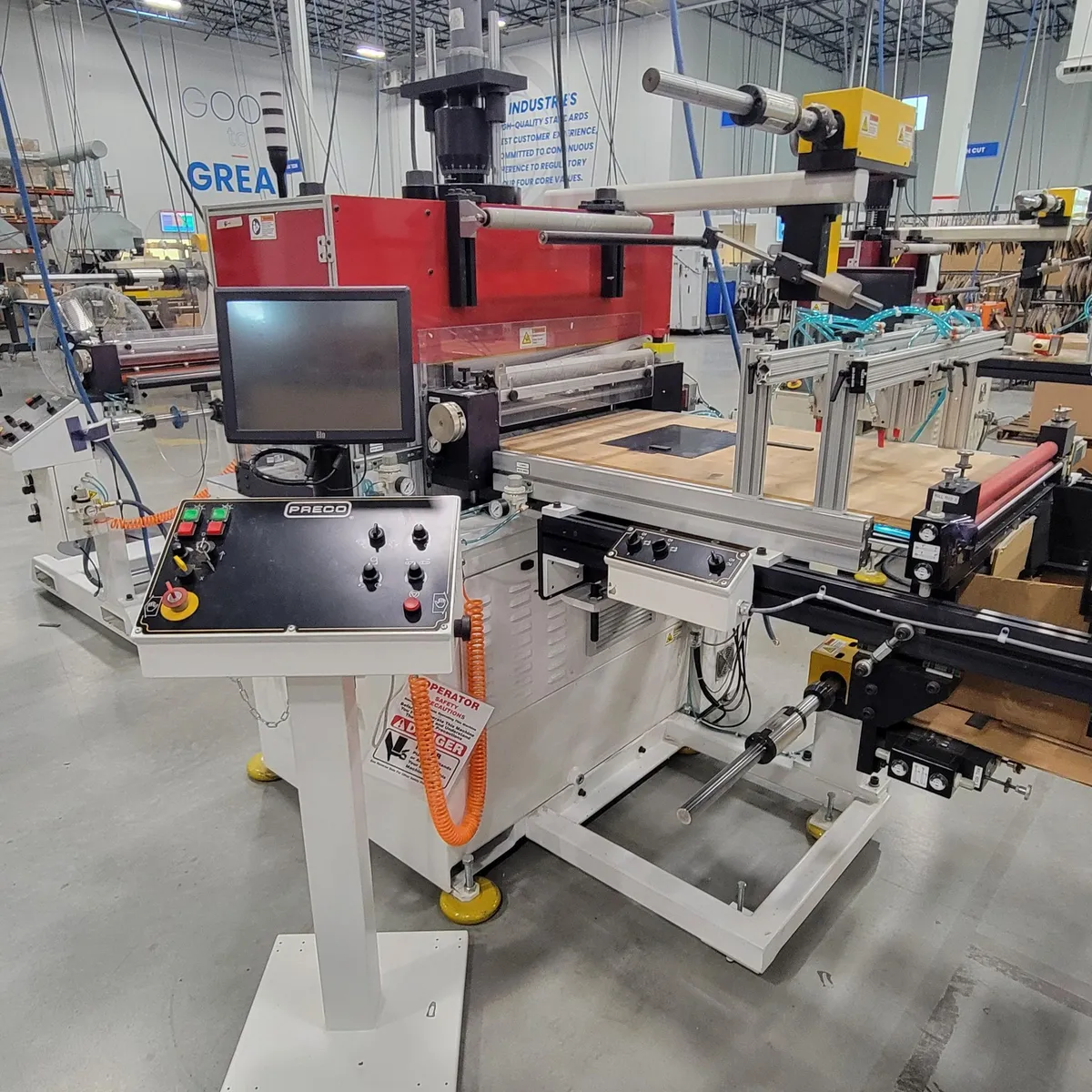

2021 Preco Model 2024-60T Hydraulic Die Cutting Press
Have one to sell?
Gene Taubman
1 available
2021 Preco 2024-60T
60T Die Cutting 4-Post Hydraulic Press; Micrometer adjustment
20" x 24", 10" Daylight, 10" Feed, 10HP
Preco Model 2024-60T Hydraulic Die Cutting Press
New: 2021
Specifications:
Capacity: 60 Tons
Platen Area: 20" D x 24" W
Daylight: 10" (Includes 2" Bolster)
Roll Feed Diameter: 2.25"
Max Feed Length: 10"
Press Stroke: 4"
Pump Motor: 10 HP
*Ultra Accurate Kiss-Cut
*Micrometer Stop
*Quick Change Steel Rule Die Clamps
*Microprocessor Controlled Touch Panel Display
*Robust 4-Post Press Design
*Precision Controlled Hydraulics
*Precise Roll-Feed Material Drives
*Variable Material & Toll Stroke Length Adjustment
4 Post Hydraulic Press, Micrometer Adjustment
Unroll Station
10" Daylight
(2) Dual Driven Roll Feeds (2.25" Dia)
Quick Change Tooling, (4) Pneumatic Clamps
10 HP Pump Motor, 3000 PSI
Pedestal Control
Manual, Schematics, and Software
Approximate Weight 6000 Lbs
