| Control | CNC | CNC |
| Weight | 4000 Lbs | 4000 Lbs |

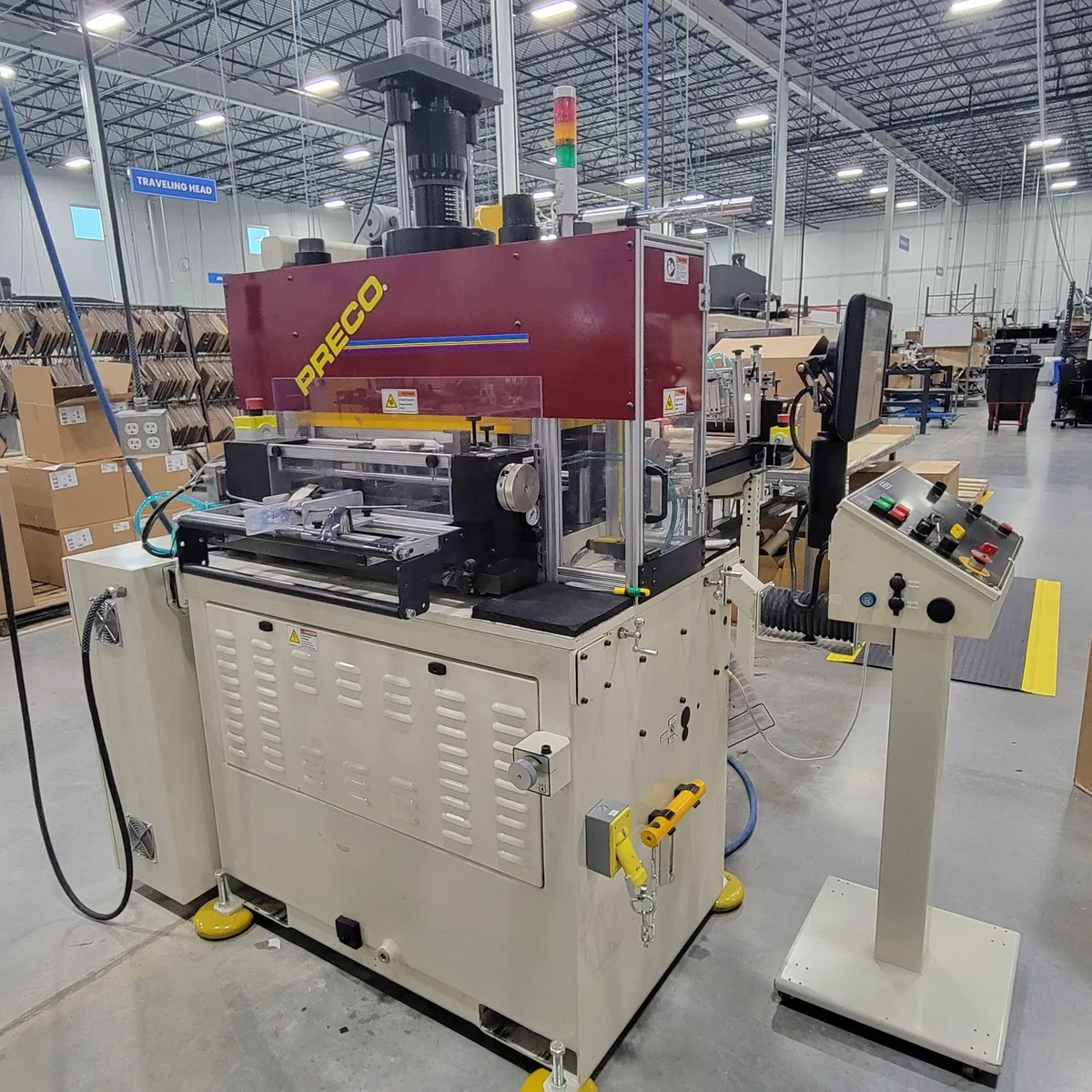

Preco Model 1220-40T Hydraulic Die Cutting Press
New: 2021
Specifications:
Capacity: 40 Tons
Platen Area: 12" D x 20" W
Daylight: 10" (Includes 2" Bolster)
Roll Feed Diameter: 2.25"
Max Feed Length: 10"
Press Stroke: 4"
Pump Motor: 10 HP
*Ultra Accurate Kiss-Cut
*Micrometer Stop
*Quick Change Steel Rule Die Clamps
*Microprocessor Controlled Touch Panel Display
*Robust 4-Post Press Design
*Precision Controlled Hydraulics
*Precise Roll-Feed Material Drives
*Variable Material & Toll Stroke Length Adjustment
4 Post Hydraulic Press, Micrometer Adjustment
10" Daylight
(2) Dual Driven Roll Feeds (2.25" Dia)
Quick Change Tooling, (4) Pneumatic Clamps
10 HP Pump Motor, 3000 PSI
Pedestal Control
Manual, Schematics, and Software
Approximate Weight 4000 Lbs
This equipment is currently unavailable. Similar equipment available now is shown below.
