2005 MEGA MILL VMC-3060 | Machining Centers, Vertical

Megamill VMC-3060 Vertical Machining Center

New: 2005

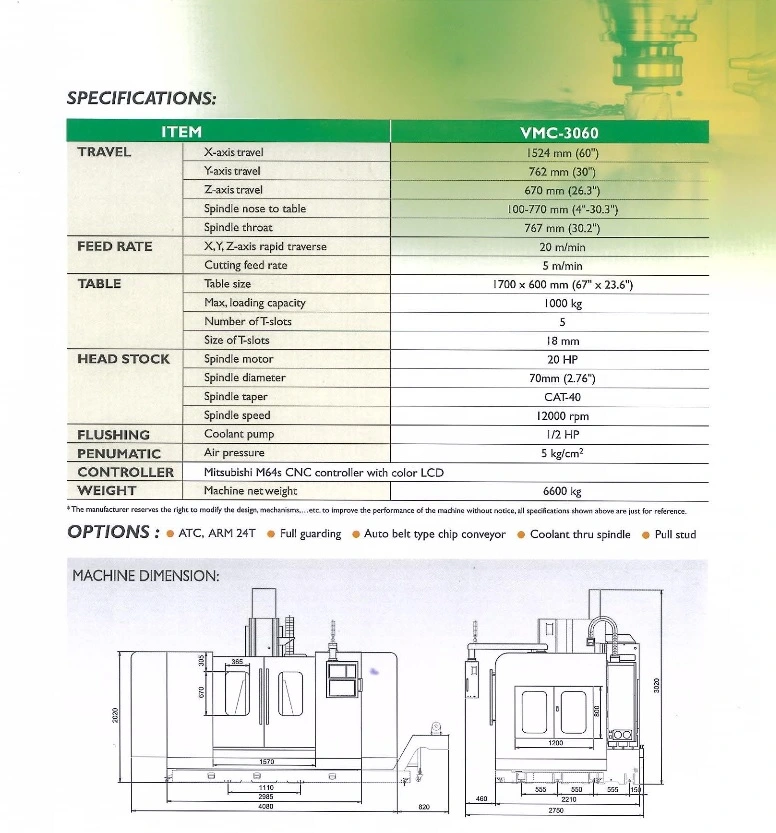

Specifications:

Travel:                              60"x 30" x 26"

Spindle nose to table:    4"-30"

Spindle throat:                30"

XYZ Feed Rate:              20 m/min

Table size:                        67" x 23"

Max loading cap:            1000kg

T-slots:                             5

T-slot size:                       18mm

Spindle motor:                20hp

Spindle diameter:           2.76"

Spindle taper:                 Cat-40

Spindle speed:               12000

Coolant pump:               1/2hp

Machine weight:           6600kg

Equipped With:

Controller: Mitsubishi M64s w/color lcd

Can be put under power for inspection

Video upon request

NOTE:

-step-down transformer from 600VAC-220VAC available at additional Cost
