1994 DAEWOO PUMA 8-HC | CNC & N/C Controls

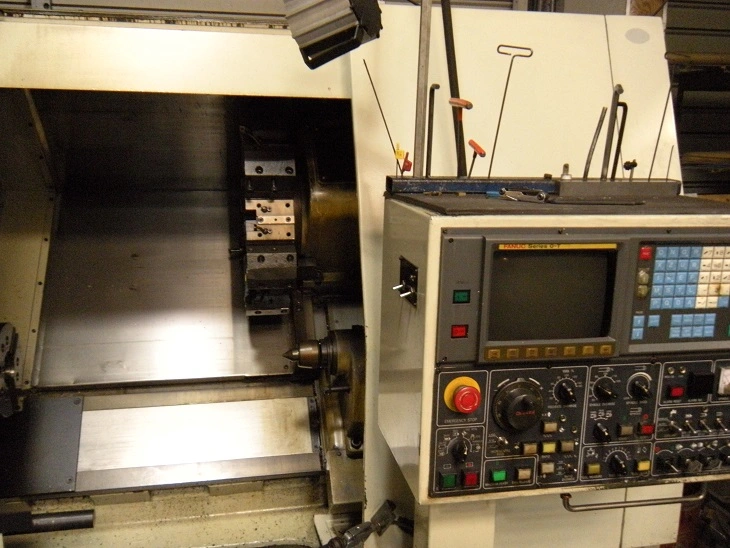

Daewoo Puma 8-HC Turning Center

New: 1994

Specifications:

Maximum Swing Over Bed/Carriage:     19.7"/13"

Maximum Machining Diameter:            14"

Maximum Center Distance:                   26"

Maximum Machining Length:               20.9"

Spindle Motor:                                     25 HP

Spindle Speeds:                                   4,000RPM

Maximum Bar Capacity:                      2"

Chuck Size:                                       8"

X Axis Travel:                                  8.3"

Z Axis Travel:                                  21.7"

Turret Positions:                              12 Positions

Approx. Dimensions:                       112" x 76" x 71"H

Approx. Weight:                               10,500 Lbs

Equipped With:

Fanuc OT

Condition:

The hydraulic pump is blowing a fuse every time you power up the machine
